Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 75mm -
Fork SunTour
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Women's Geometry AL-6061 SL Custom Butted Aluminum, Formed Downtube, CNC Machined Headtube
Suspension Fork
SR Suntour, 27.5", 75mm
Drivetrain
Rear Derailleur
Shimano Tourney
Front Derailleur
Shimano Tourney
Shift Levers
Shimano Revo Shift
Cassette
Shimano 7spd (14-28t)
Crank
SR Suntour XCC 42/34/24t
Bottom Bracket
Sealed Mech 2pc 68x122.5
Chain
KMC Z51
Pedals
Test Ride Pedals
Wheels
Front Hub
Joytech Alloy QR 32h
Rear Hub
Joytech Alloy QR 32h
Rims
Weinmann XRD28, 32h, 27.5", Double Wall
Spokes
14g Stainless Steel, w/ Brass Nipples
Tires
Kenda Kadre, 27.5x2.1
Brakes
Brakes
Promax Alloy V-Brake
Brake Levers
Tektro Women-Specific
Cockpit
Stem
Alloy Ahead 4-Bolt 20°
Handlebar
Steel 25mm Rise x 700mm, 25.4
Grips
Women-Specific Small Diamond
Headset
Ahead 1-1/8"
Seat
Saddle
Raleigh Women's Mountain Plush Saddle
Seatpost
Alloy Micro Adjust 30.9x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Top Tube Length | 531 mm | 551 mm | 571 mm | 586 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 350 mm | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1015 mm | 1036 mm | 1061 mm | 1074 mm |
| Standover Height | 674 mm | 696 mm | 740 mm | 779 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

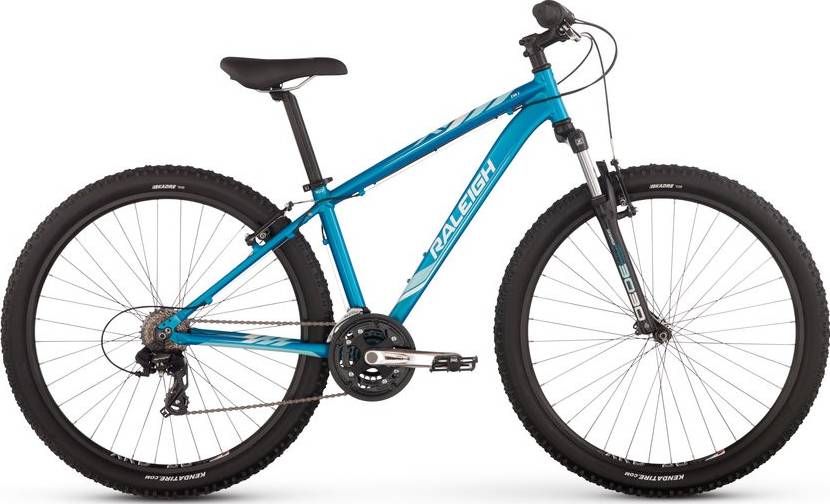

Eva 2 belongs to the Raleigh Eva model. There are 18 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
The most economical model, the Raleigh Eva 26 2017 has a starting price of 269$. Raleigh Eva 3 2017 on the other hand is the most expensive at 449$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2017 for 349$. In conclusion, this bike price is 445.85% lower than the price of the average Crosscountry bike.
Overview of components
Fork
The fork installed on this bike is the SunTour model. The travel on this model is 75mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Raleigh Eva 2 2017, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Eva 2 has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Raleigh Eva 2 bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
