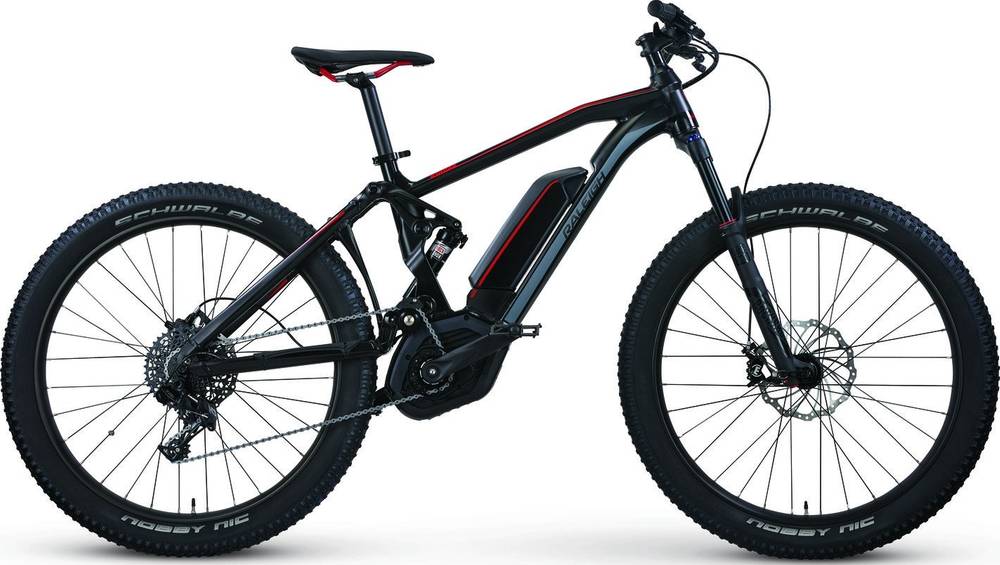

Raleigh Kodiak iE eMTB 2018
2018 E-bike
Estimate price |
4,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Reba
-
Groupset NX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Powerpack 500Wh, DT Mount. -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Multi Formed Aluminum Alloy 6061 T6 Dual Suspension, 4 link all mountain design. 130mm of rear wheel travel.
Suspension Fork
Rock Shox REBA 130mm Solo Air
Rear Shock
Rock Shox RT3
Drivetrain
Rear Derailleur
SRAM NX, Wide Range, Roller Clutch
Shift Levers
SRAM NX 11 Speed
Cassette
Forged Spider, 18tooth w/ chainguard, steel
Crank
Forged Alloy for Bosch System
Bottom Bracket
Bosch, press-fit
Chain
KMC x11ePT, Ebike Specific
Pedals
Alloy, sealed bearing
Wheels
Front Hub
Formula, Sealed Bearing, Thru Axle, Boost 110
Rear Hub
Formula, Sealed Bearing, Thru Axle, Boost 148
Rims
27.5", 45mm ID, Disc Specific
Spokes
Stainless
Brakes
Brake Levers
Magura Fifty4, HC 2 finger
Cockpit
Stem
Raleigh Aluminum Alloy, 3d forged
Handlebar
Raleigh Aluminum Alloy
Grips
Raleigh Ergo Comfort Control
Headset
Integrated, Sealed Bearing
Seat
Saddle
Raleigh Custom Ergo Performance
Seatpost
Raleigh Aluminum Alloy, forged head
Motor & Battery
Motor
Bosch Performance CX, 250W, 20MPH, Made in EU.
Battery
Bosch Powerpack 500Wh, DT Mount.
Remote
Bosch Purion, Compact Type
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.33 mm |
| Bottom Bracket Height | 305 mm | 305 mm |
| Front Center | 747 mm | 769 mm |
| Rake | 45 mm | 45 mm |
| Trail | 74 mm | 73 mm |
| Stack | 590 mm | 599 mm |
| Reach | 434 mm | 451 mm |
| Top Tube Length | 591 mm | 611 mm |
| Seat Tube Angle | 75 ° | 75 ° |
| Seat Tube Length | 430 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 130 mm |
| Chainstay Length | 476 mm | 476 mm |
| Wheelbase | 1219 mm | 1241 mm |
| Bottom Bracket Drop | 50 mm | 50 mm |
| Standover Height | 778 mm | 793 mm |
| Wheels | 27" | 27" |
Model Overview
Kodiak iE eMTB belongs to the Raleigh E Kodiak model. 6 e-bikes variations carry this model name so far. Take a sneak peek at all Raleigh E Kodiak e-bikes models from 2018, by clicking here.
Model range prices
Raleigh Kodiak iE eMTB (2018) 2018 is the most economical model, with a starting price of 4999$. Raleigh Kodiak Pro IE Emtb 2018 on the other hand costs 6249$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Raleigh released this model in 2018, its price was 4999$. Comparing the average cost of a Trail e-bike to this one, you will see that Kodiak iE eMTB price is 48.56% higher.
Overview of components
Fork
The RockShox Reba is included from the factory. It has a travel distance of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Kodiak iE eMTB has a rear shock with a travel of 130mm. The model Rock Shox RT3 is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Kodiak iE eMTB are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Raleigh Kodiak iE eMTB has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
