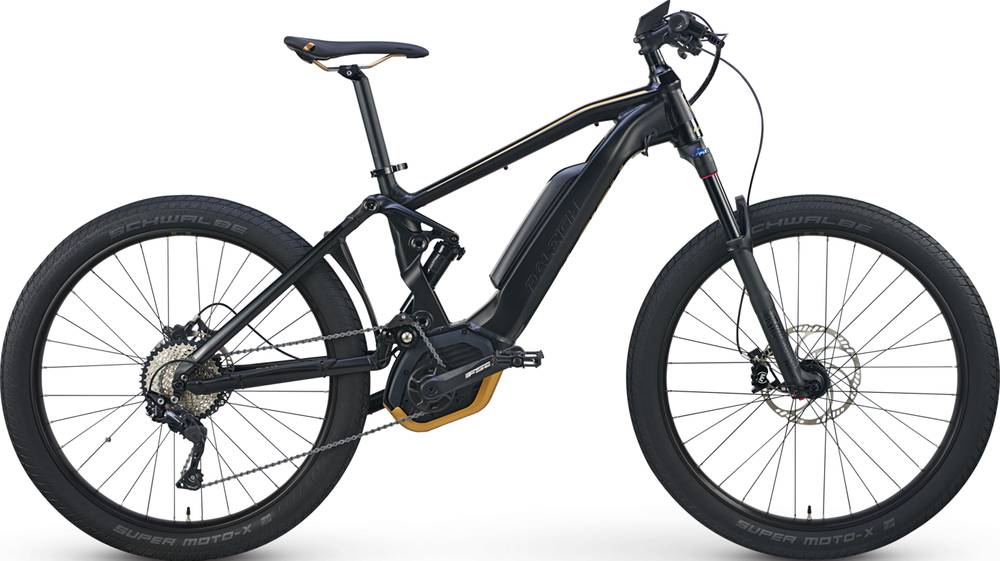

Raleigh Lore DS iE Step Over 2019
2019 E-bike
Estimate price |
4,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Reba
-
Groupset Deore, FSA -
Suspension Full -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch Powerpack 500Wh, DT Mount -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Multi Formed Aluminum Alloy 6061 T6 Dual Suspension, 4 Link All Mountain Design. 130mm of Rear Wheel Travel. Semi Integrated Battery Mount
Suspension Fork
Rock Shox Reba RL Solo Air w/Boost, 130mm Travel
Rear Shock
Rock Shox Monarch RT3 130mm Travel
Drivetrain
Rear Derailleur
Shimano Deore M610, SGS
Shift Levers
Shimano Deore SL-M6000, 10 Speed
Cassette
FSA Forged Spider, 20 tooth w/chainguard, steel
Crank
FSA Forged Alloy for Bosch System
Bottom Bracket
Bosch, press-fit
Chain
KMC x10e EPT, Ebike Specific
Pedals
Alloy, Sealed Bearing
Wheels
Front Hub
Formula, Sealed Bearing, Thru Axle, Boost 110, 32 Hole
Rear Hub
Formula, Sealed Bearing, Thru Axle, Boost 148, 32 Hole
Rims
Aluminium 27.5", Thru axle, Disc Specific, 32 Hole
Spokes
Black w/Silver Nipples
Tires
27.5" x 2.8" Schwalbe Super Moto-X
Brakes
Brakes
Magura MT Trail Sport Fifty4, 4 Piston Front 203mm Rotor, 4 Piston Rear 180mm Rotor
Brake Levers
Magura Fifty4, HC 2 Finger
Cockpit
Stem
Raleigh Aluminum Alloy, 3d Forged
Handlebar
Raleigh T-6061 Aluminum Alloy
Grips
Raleigh Ergo Comfort Control
Headset
Integrated, Sealed Bearing
Seat
Saddle
Raleigh Custom Ergo Performance
Seatpost
Raleigh Aluminum Alloy, Forged Head 350mm
Motor & Battery
Motor
Bosch Performance Speed, 350W, 28MPH, Made in EU
Battery
Bosch Powerpack 500Wh, DT Mount
Remote
Bosch Kiox On-Board Computer
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.33 mm |
| Front Center | 747 mm | 769 mm |
| Rake | 45 mm | 45 mm |
| Trail | 63 mm | 62 mm |
| Stack | 590 mm | 599 mm |
| Reach | 434 mm | 451 mm |
| Top Tube Length | 591 mm | 611 mm |
| Seat Tube Angle | 75 ° | 75 ° |
| Seat Tube Length | 430 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm |
| Chainstay Length | 476 mm | 476 mm |
| Wheelbase | 1219 mm | 1241 mm |
| Bottom Bracket Drop | 50 mm | 50 mm |
| Standover Height | 778 mm | 793 mm |
| Wheels | 650 | 650 |
About this model
Lore DS iE Step Over is a Raleigh E Lore model. Raleigh released 3 e-bikes variations of this model so far. Take a sneak peek at all Raleigh E Lore e-bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Raleigh Lore iE Step Over 2019 has a starting price of 3499$. Raleigh Lore DS iE Step Over 2019 on the other hand is the most expensive at 4599$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2019 for 4599$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Lore DS iE Step Over price is 85.44% higher.
Lore DS iE Step Over components
Fork
The RockShox Reba is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this e-bike is Rock Shox Monarch RT3 130mm Travel, with a travel distance of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Lore DS iE Step Over model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The Lore DS iE Step Over has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
