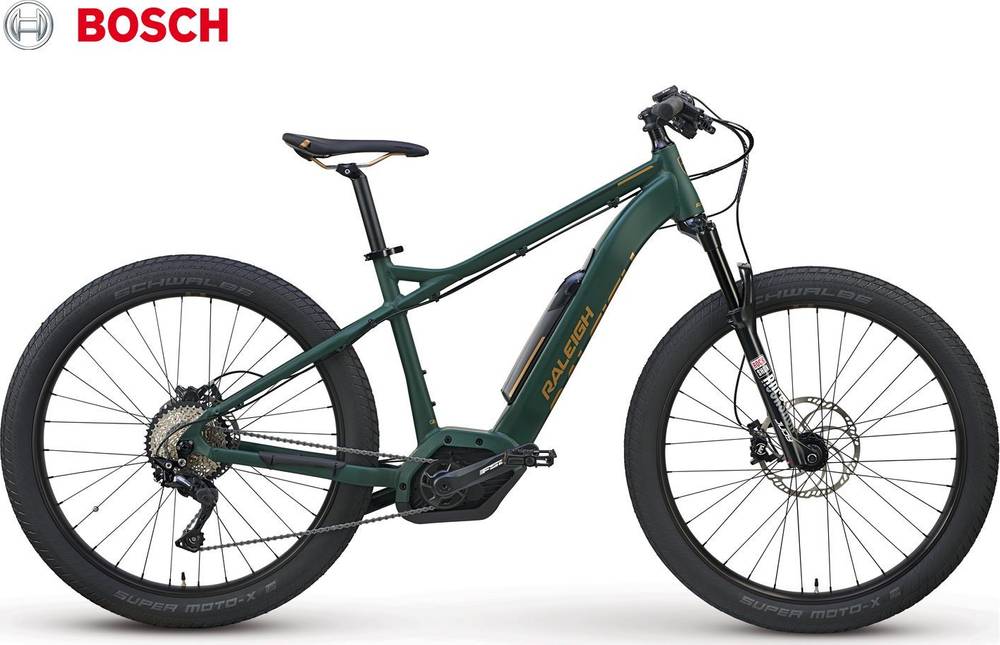

Raleigh Lore iE Step Over 2019
2019 E-bike
Estimate price |
3,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 120mm -
Fork RockShox Judy
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch Powerpack 500Wh, DT Mount -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hydroformed Aluminum Alloy 6061 T6, Trail Speed Geometry
Suspension Fork
Rock Shox Judy Gold 120mm 27.5+
Drivetrain
Rear Derailleur
Shimano Deore M6000, GS, Shadow Plus
Shift Levers
Shimano Deore M6000, 10 Speed
Cassette
FSA Forged Spider, 20 Tooth w/Chainguard, Steel
Crank
FSA Forged Alloy, 170mm Annodized Black
Chain
KMC x10ePT Ebike Specific
Pedals
Alloy Cage w/Sealed Bearings and Crmo Axles
Wheels
Front Hub
Formula, Sealed Bearing, Thru Axle, Boost 110, 32 Hole
Rear Hub
Formula, Sealed Bearing, Thru Axle, Boost 148, 32 Hole
Rims
27.5", Thru axle, 45mm ID, Disc Specific, Tubeless Ready
Spokes
Black w/Silver Brass Nipples
Tires
27.5 x 2.8" Schwalbe Super Moto -X, RaceGuard
Brakes
Brakes
Magura Fifty4, 4 Piston Front 203mm Rotor, 2 Piston Rear 180mm Rotor
Brake Levers
Magura, HC Carbon Levers
Cockpit
Stem
Raleigh Aluminum Alloy, 3D Forged, +/-7 Degree
Handlebar
Raleigh Flat Bar, 6061 Aluminum Alloy
Grips
Raleigh Ergo Comfort Control
Headset
Integrated, Sealed Bearing
Seat
Saddle
Raleigh Custom Ergo Performance
Seatpost
Raleigh Aluminum Alloy, Forged Head
Motor & Battery
Motor
Bosch Performance Speed, 350W (575 max), 63Nm Torque, 28mph
Battery
Bosch Powerpack 500Wh, DT Mount
Remote
Bosch Purion Performance Line
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.63 mm |
| Front Center | 704 mm | 726 mm |
| Rake | 51 mm | 51 mm |
| Trail | 94 mm | 94 mm |
| Stack | 647 mm | 666 mm |
| Reach | 394 mm | 408 mm |
| Top Tube Length | 607 mm | 627 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Seat Tube Length | 460 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° |
| Head Tube Length | 140 mm | 160 mm |
| Chainstay Length | 484 mm | 484 mm |
| Wheelbase | 1183 mm | 1205 mm |
| Bottom Bracket Drop | 55 mm | 55 mm |
| Standover Height | 723 mm | 754 mm |
| Wheels | 650 | 650 |
Model Overview
Lore iE Step Over is part of the Raleigh E Lore model. 3 e-bikes variations carry this model name so far. You can easily view all of the Raleigh E Lore e-bikes models from 2019, here.
Model range prices
Raleigh Lore iE Step Over 2019 is the most affordable e-bike of this model and has a price of 3499$. On the other hand, Raleigh Lore DS iE Step Over 2019, is the most expensive and costs 4599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2019 for 3499$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Lore iE Step Over price is 41.09% higher.
Lore iE Step Over components
Fork
The Lore iE Step Over comes factory-installed with the RockShox Judy fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Lore iE Step Over e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Raleigh Lore iE Step Over has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
