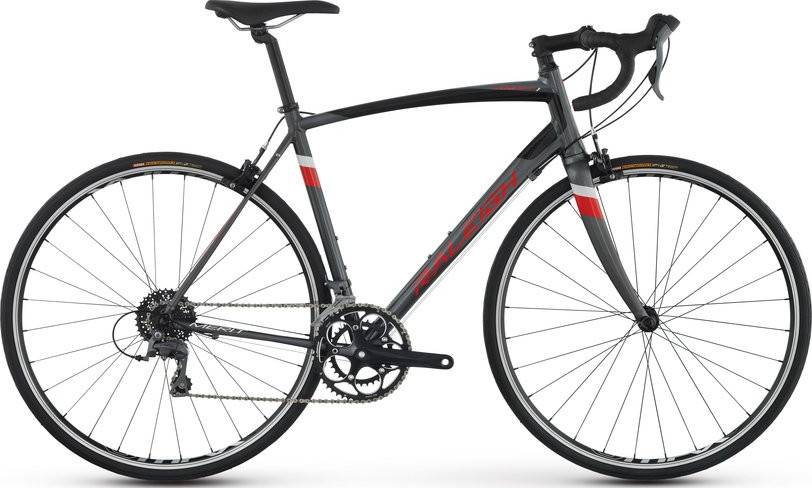

Raleigh Merit 1 2017
2017 Road
Estimate price |
849$
Weight | 10.26 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Double Butted Custom Formed Tubing
Suspension Fork
Custom Alloy Road 1-1/8"
Drivetrain
Rear Derailleur
Shimano Claris
Front Derailleur
Shimano Claris
Shift Levers
Shimano Claris 8spd STI, Shimano SP41 Shift Housing
Cassette
Shimano 8spd (11-32t)
Crank
Compact 34/50t
Bottom Bracket
Sealed Cartridge Square Taper
Chain
KMC Z82
Pedals
Test Ride Pedals
Wheels
Front Hub
Formula Alloy QR 28h
Rear Hub
Formula Alloy QR 28h Cassette
Rims
Weinmann GMax Double Wall 23mm Wide
Spokes
14g Stainless Steel
Tires
Kenda Kwick Roller Sport 700X28c
Brakes
Brakes
Tektro Dual Pivot
Brake Levers
Shimano Claris STI
Cockpit
Stem
Raleigh 7° 3D Forged, 31.8, 90/100/110mm
Handlebar
Raleigh 100 Series Road, 31.8 Short Drop, 40/42/44cm
Headset
Integrated Cartridge Bearings
Seat
Saddle
Raleigh Comfort Road, 148mm wide
Seatpost
Alloy Micro Adjust 27.2x300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.5 mm | 1.5 mm | 1.51 mm | 1.52 mm | 1.52 mm |
| Bottom Bracket Height | 263 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 547 mm | 567 mm | 583 mm | 599 mm | 614 mm | 629 mm |
| Reach | 375 mm | 378 mm | 388 mm | 396 mm | 403 mm | 413 mm |
| Top Tube Length | 530 mm | 550 mm | 565 mm | 580 mm | 595 mm | 610 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 145 mm | 165 mm | 180 mm | 200 mm | 215 mm | 230 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 765 mm | 785 mm | 805 mm | 825 mm | 840 mm | 860 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Merit 1 completes the Raleigh Merit model. 8 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
The most economical model, the Raleigh Merit 1 2017 has a starting price of 849$. Raleigh Merit Elite 2017 on the other hand is the most expensive at 2599$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2017 and its price was 849$. Doing a quick comparison, we notice that Merit 1 price is 176.33% smaller than the average cost of an Endurance bike.
Endurance bikes average weight
If we make a quick analysis of the average weight of an Endurance bike, we get 8.2 kg (18.08 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Merit 1 weighs 10.26 kg (22.62 lbs) and is much heavier than the average. In short, the average Endurance bike weight is 25.12% lower than this one.
Merit 1 components
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The Merit 1 2017 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Raleigh Merit 1 is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
