Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Alloy Endurance Road, Thru-Axle, Flat Mount Disc, Taper Headtube
Suspension Fork
Alloy SPF Formed, Tapered Steerer, 12mm Thru-Axle, Flat Mount Disc
Drivetrain
Rear Derailleur
Shimano Sora RD-R3000, 9 Speed
Front Derailleur
Shimano Sora FD-R3000, 31.8mm Band Clamp
Shift Levers
Shimano Sora ST-R3000 Dual Control, 2x9 Speed
Cassette
Shimano HG400 Cassette, 9 Speed, 11-32T
Crank
FSA Vero Compact, 50/34T
Bottom Bracket
Sealed Cartridge Square Taper
Chain
KMC X9
Pedals
Resin Platform Pedal
Wheels
Front Hub
Alloy Disc, 12mm Thru-Axle, 28h
Rear Hub
Alloy Disc, Thru-Axle, 28 Hole, Cassette
Rims
Raleigh Alloy Double Wall, 700c, 28 Hole
Spokes
14g Stainless with Brass Nipples
Tires
Chao Yang Rapide, Wire Bead, 700x28c
Brakes
Brakes
Tektro Lyra Flat Mount Mechanical Disc, w/160mm Rotors
Brake Levers
Shimano Sora
Cockpit
Stem
Alloy Road, 7°, 31.8
Handlebar
Alloy Road, Butted, 31.8
Headset
Integrated Cartridge Bearings
Seat
Saddle
Raleigh 200 Series Saddle
Seatpost
Alloy Micro Adjust 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.5 mm | 1.5 mm | 1.51 mm | 1.52 mm | 1.52 mm |
| Bottom Bracket Height | 258 mm | 261 mm | 261 mm | 263 mm | 263 mm | 263 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 547 mm | 567 mm | 583 mm | 599 mm | 614 mm | 629 mm |
| Reach | 375 mm | 378 mm | 388 mm | 396 mm | 403 mm | 413 mm |
| Top Tube Length | 540 mm | 550 mm | 565 mm | 580 mm | 595 mm | 610 mm |
| Seat Tube Angle | 73 ° | 74 ° | 73.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 140 mm | 160 mm | 175 mm | 195 mm | 210 mm | 225 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Bottom Bracket Drop | 77 mm | 75 mm | 75 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 765 mm | 785 mm | 805 mm | 825 mm | 840 mm | 860 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

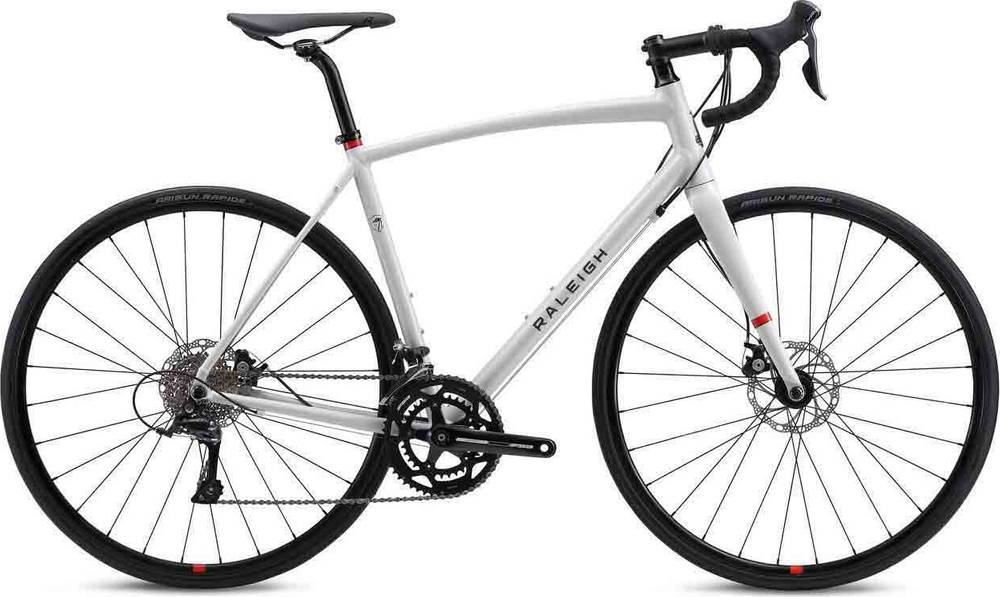

Merit 2 is a Raleigh Merit model. 8 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Raleigh Merit 2 2019 is the cheapest bike model and costs 799$. Raleigh Merit 3 2019 is the most expensive one and costs 1599$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2019 for 799$. Comparing the average cost of an Endurance bike to this one, you will see that Merit 2 price is 193.62% lower.
Overview of components
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When it comes to wheels, the Merit 2 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
