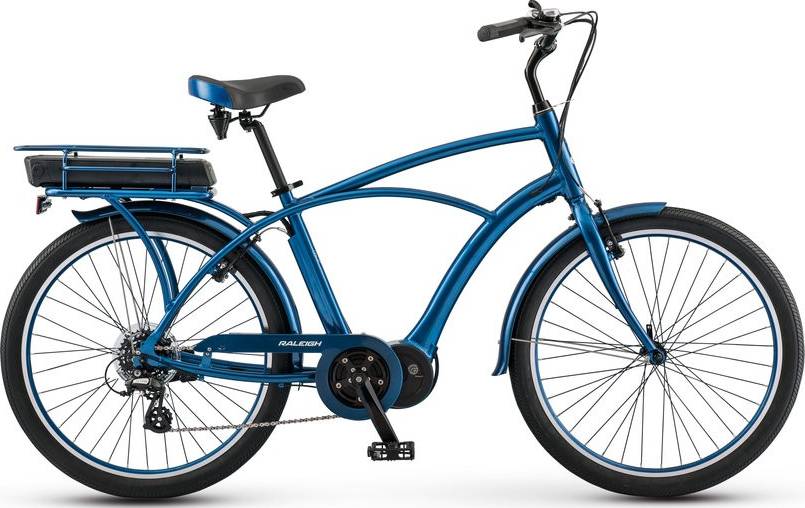

Raleigh Retroglide iE 2017
2017 E-bike
Estimate price |
1,899$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset Altus, Tourney -
Suspension Rigid -
Drivetrain 1 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Aluminum, Comfort Geometry
Suspension Fork
High Tensile Steel w/Fender Mounts
Drivetrain
Rear Derailleur
Shimano Altus
Shift Levers
Shimano SL-TX50 7spd
Cassette
Shimano 7spd (12-32t)
Crank
Centerdrive 42T w/Alloy Chainguard
Chain
KMC X8
Wheels
Front Hub
Modus 36h w/QR
Rear Hub
Modus 36h w/QR
Rims
Weinmann XTB26 Double Wall 36h
Spokes
Stainless
Tires
Kenda 26x2.25", 30TPI
Brakes
Brakes
Tektro Linear Pull
Cockpit
Stem
Alloy quill, 80mm
Handlebar
Alloy 25.4, W:630mm
Grips
Raleigh Grips
Headset
VP Threaded
Seat
Saddle
Velo Raleigh
Seatpost
Alloy 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MEN |
|---|---|
| Stack Reach Ratio | 1.48 mm |
| Front Center | 683 mm |
| Rake | 40 mm |
| Trail | 88 mm |
| Stack | 593 mm |
| Reach | 400 mm |
| Top Tube Length | 667 mm |
| Seat Tube Angle | 66 ° |
| Seat Tube Length | 460 mm |
| Head Tube Angle | 67.5 ° |
| Head Tube Length | 200 mm |
| Chainstay Length | 483 mm |
| Wheelbase | 1162 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 755 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
About this model
Retroglide iE belongs to the Raleigh E Retroglide model. There are 11 e-bikes that carry this model name. You can easily view all of the Raleigh E Retroglide e-bikes models from 2017, here.
Model range prices
Raleigh Retroglide iE Step Thru 2017 is the most affordable e-bike of this model and has a price of 1899$. On the other hand, Raleigh Retroglide iE 2017, is the most expensive and costs 1899$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Cruiser e-bikes average price
If you want an acceptable Cruiser e-bike you should know that the average price is 1697$. However, even though the average price of a Cruiser e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2017 and its price was 1899$. Doing a quick comparison, we notice that Retroglide iE price is 11.9% higher than the average cost of a Cruiser e-bike.
Overview of components
Fork material
The fork is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When leaving the production line, the Retroglide iE model has 26″ aluminum wheels. These wheels give you great handling over your e-bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Retroglide iE has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
