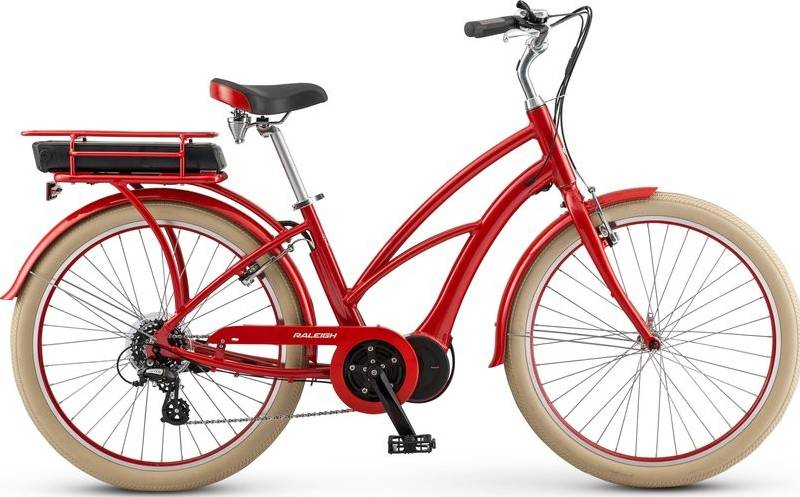

Raleigh Retroglide iE Step Thru 2017
2017 E-bike
Estimate price |
1,899$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset Altus, Tourney -
Suspension Rigid -
Motor 350W mid-drive -
Battery 48V Lithium-ion, 8.7Ah, 417Wh -
Drivetrain 1 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Aluminum, Comfort Geometry
Suspension Fork
High Tensile Steel w/Fender Mounts
Drivetrain
Rear Derailleur
Shimano Altus
Shift Levers
Shimano SL-TX50 7spd
Cassette
Shimano 7spd (12-32t)
Crank
Centerdrive 42T w/Alloy Chainguard
Chain
KMC X8
Wheels
Front Hub
Modus 36h w/QR
Rear Hub
Modus 36h w/QR
Rims
Weinmann XTB26 Double Wall 36h
Spokes
Stainless
Tires
Kenda 26x2.25", 30TPI
Brakes
Brakes
Tektro Linear Pull
Cockpit
Stem
Alloy quill, 80mm
Handlebar
Alloy 25.4, W:630mm
Grips
Raleigh Grips
Headset
VP Threaded
Seat
Saddle
Velo Raleigh
Seatpost
Alloy 27.2x350mm
Motor & Battery
Motor
Currie Electro-Drive Centerdrive 350W
Battery
48V Lithium-ion, 8.7Ah, 417Wh
Remote
LCD multi-functional display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM |
|---|---|
| Stack Reach Ratio | 1.6 mm |
| Front Center | 634 mm |
| Rake | 40 mm |
| Trail | 88 mm |
| Stack | 575 mm |
| Reach | 359 mm |
| Top Tube Length | 618 mm |
| Seat Tube Angle | 66 ° |
| Seat Tube Length | 410 mm |
| Head Tube Angle | 67.5 ° |
| Head Tube Length | 180 mm |
| Chainstay Length | 484 mm |
| Wheelbase | 1114 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 548 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
About this model
Retroglide iE Step Thru is a Raleigh E Retroglide model. Raleigh released 11 e-bikes variations of this model so far. Take a sneak peek at all Raleigh E Retroglide e-bikes models from 2017, by clicking here.
Model range prices
Raleigh Retroglide iE Step Thru 2017 is the most economical model, with a starting price of 1899$. Raleigh Retroglide iE 2017 on the other hand costs 1899$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Cruiser e-bikes average price
According to our calculations, the average cost of a Cruiser e-bike that is reliable is 1697$. However, this doesn’t mean that if you spend less money on a Cruiser e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Raleigh Retroglide iE Step Thru price was 1899$. Doing a quick comparison, we notice that Retroglide iE Step Thru price is 11.9% more expensive than the average cost of a Cruiser e-bike.
Retroglide iE Step Thru components
Fork material
The fork on this e-bike is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels
As for the wheels, Raleigh Retroglide iE Step Thru 2017, has a 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Nothing is more important on a bike than its ability to brake properly. Raleigh Retroglide iE Step Thru is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
