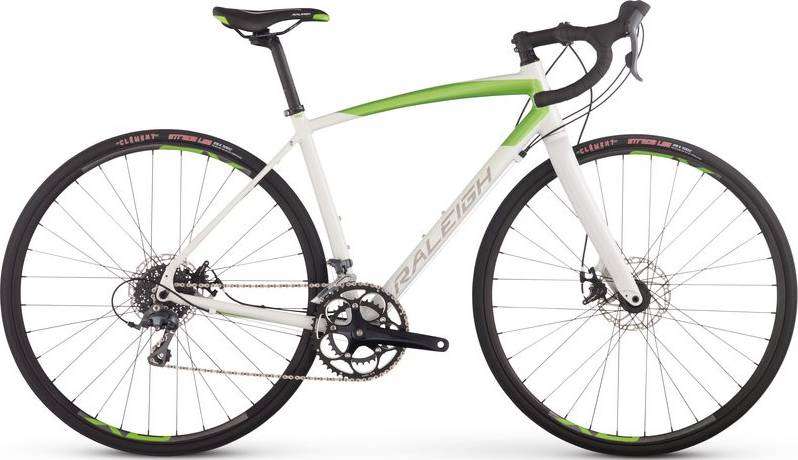

Raleigh Revere 2 2017
2017 Road
Estimate price |
799$
Weight | 10.52 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Women's Specific AL-6061 Double Butted Alloy Disc Frame with Thru-Axles
Suspension Fork
Custom Alloy SPF 1-1/8" to 1.5 taper, Thru-Axle with Post Disc Mounts
Drivetrain
Rear Derailleur
Shimano Claris
Front Derailleur
Shimano Claris
Shift Levers
Shimano Claris 8spd STI, Shimano SP41 Shift Housing
Cassette
Shimano 8spd (11-32t)
Crank
Compact 34/50t
Bottom Bracket
Sealed Cartridge Square Taper
Chain
KMC Z82
Pedals
Test Ride Pedals
Wheels
Front Hub
Formula Alloy Disc 15mm Thru-Axle
Rear Hub
Joytech Alloy Disc, 32H, 142x12mm Thru-Axle Cassette
Rims
Weinmann XC180 Double Wall 23mm Wide
Spokes
14g Stainless Steel
Tires
Clement Strada LGG 60TPI, 700x28c
Brakes
Brakes
TRP Spyre C dual actuated mechanical disc brakes, w/160mm rotors
Brake Levers
Shimano Claris STI
Cockpit
Stem
Raleigh 7° 3D Forged, 31.8, 90/100/110mm
Handlebar
Raleigh 200 Series Road, 31.8 Short Drop, 40/42/44cm
Headset
Integrated Cartridge Bearings
Seat
Saddle
Raleigh 200 series Saddle
Seatpost
Alloy Micro Adjust 27.2x300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.44 mm | 1.51 mm | 1.52 mm | 1.54 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 266 mm | 266 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 502 mm | 527 mm | 548 mm | 562 mm | 583 mm |
| Reach | 362 mm | 365 mm | 364 mm | 370 mm | 378 mm |
| Top Tube Length | 501 mm | 516 mm | 526 mm | 541 mm | 556 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 460 mm | 485 mm | 510 mm | 535 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 105 mm | 130 mm | 150 mm | 165 mm | 185 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 706 mm | 731 mm | 756 mm | 776 mm | 801 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Revere 2 is a Raleigh Revere model. There are 6 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Raleigh Revere 2 2017 is the cheapest bike model and costs 799$. Raleigh Revere 3 2017 is the most expensive one and costs 1299$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Raleigh released this model in 2017, its price was 799$. If we compare this with the average Endurance bike cost we notice that the price is 193.62% lower.
Endurance bikes average weight
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 10.52 kg (23.19 lbs), Raleigh bike is much heavier than average. In other words, this model is 28.29% heavier than the average Endurance bike.
Overview of components
Fork material
Revere 2 has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When it comes to wheels, the Revere 2 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
