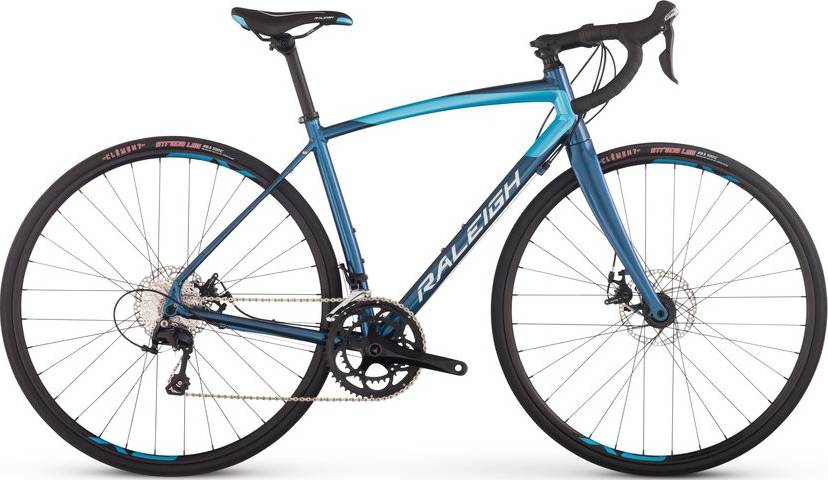

Raleigh Revere 3 2017
2017 Road
Estimate price |
1,299$
Weight | 9.73 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Women's Specific AL-6061 Double Butted Alloy Disc Frame with Thru-Axles
Suspension Fork
Custom Carbon to Alloy 1-1/8" to 1.5 taper, Thru-Axle with Post Disc Mounts
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105 11spd STI, Shimano SP41 Shift Housing
Cassette
Shimano 11spd (11-32t)
Crank
Forged 2PC Compact 34/50t
Bottom Bracket
External Bearing
Chain
KMC X11
Pedals
Test Ride Pedals
Wheels
Front Hub
Formula Alloy Disc 15mm Thru-Axle
Rear Hub
Formula Alloy Disc 142x12mm Thru-Axle Cassette
Rims
Weinmann XC180 Double Wall 23mm Wide
Spokes
14g Stainless MAC
Tires
Clement Strada LGG 60TPI, 700x28c
Brakes
Brakes
TRP Spyre C dual actuated mechanical disc brakes, w/160mm rotors
Brake Levers
Shimano 105 STI
Cockpit
Stem
3D Forged Anti-Shock, 31.8, 80/90/100mm
Handlebar
Raleigh 200 Series Aero Ergo Flat Top Road, 31.8 with 6 Degree Flare, 38/40/42cm
Headset
Integrated Cartridge Bearings
Seat
Saddle
Raleigh 200 series Saddle
Seatpost
Anti-Shock 27.2x300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.44 mm | 1.51 mm | 1.52 mm | 1.54 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 266 mm | 266 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 502 mm | 527 mm | 548 mm | 562 mm | 583 mm |
| Reach | 362 mm | 365 mm | 364 mm | 370 mm | 378 mm |
| Top Tube Length | 501 mm | 516 mm | 526 mm | 541 mm | 556 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 460 mm | 485 mm | 510 mm | 535 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 105 mm | 130 mm | 150 mm | 165 mm | 185 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 706 mm | 731 mm | 756 mm | 776 mm | 801 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Revere 3 completes the Raleigh Revere model. 6 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Raleigh Revere 2 2017 is the most economical model, with a starting price of 799$. Raleigh Revere 3 2017 on the other hand costs 1299$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2017 and its price was 1299$. In conclusion, this bike price is 80.6% smaller than the price of the average Endurance bike.
Endurance bikes average weight
On a deeper look, we notice that the average weight of an Endurance bike is 8.2 kg (18.08 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 9.73 kg (21.45 lbs), the Revere 3 model is much heavier than average. In conclusion, the average Endurance bike weighs 18.66% less than Revere 3.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Revere 3 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
