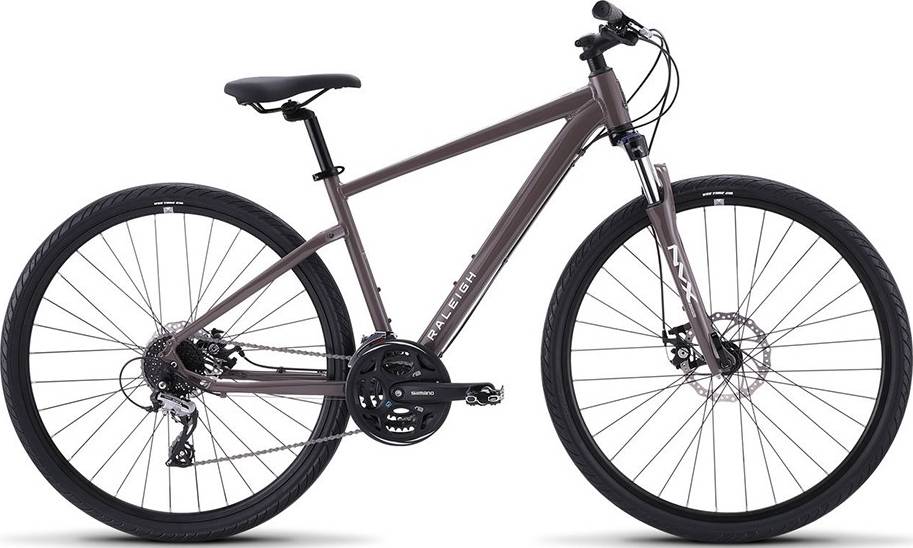

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy, Custom Formed and Butted Tubing
Suspension Fork
SR Suntour SF15-NVX, Lock-Out, 75mm Travel
Drivetrain
Rear Derailleur
Shimano Acera, 8sp
Front Derailleur
Shimano Altus
Shift Levers
Shimano SL-M310, 8sp
Cassette
Shimano 8spd (11-32t)
Crank
Shimano Altus, 28/38/48t
Bottom Bracket
Sealed Cartridge
Chain
KMC Z8
Pedals
Alloy Body/Alloy Cage/Chromo Spindle
Wheels
Front Hub
Formula Alloy Disc QR 32h
Rear Hub
Formula Alloy Disc QR 32h
Rims
Alloy, DDM-1 Double Wall Disc
Spokes
14g Stainless Steel
Tires
Vee Zilent, 700x47c
Brakes
Brake Levers
Tektro
Cockpit
Stem
Alloy, 7 deg Rise, 31.8 Bore
Handlebar
Alloy, 15mm Rise, 9 deg Back, 31.8
Grips
Raleigh Comfort
Headset
Semi Integrated 1-1/8"
Seat
Saddle
Raleigh Series w/ Steel Rail
Seatpost
Alloy Micro Adjust 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 0.67 mm | 0.67 mm | 0.68 mm | 0.68 mm |
| Front Center | 611 mm | 629 mm | 653 mm | 669 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 191 mm | 197 mm | 194 mm | 200 mm |
| Stack | 372 mm | 385 mm | 404 mm | 413 mm |
| Reach | 558 mm | 575 mm | 591 mm | 610 mm |
| Top Tube Length | 547 mm | 562 mm | 587 mm | 602 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1032 mm | 1051 mm | 1076 mm | 1092 mm |
| Bottom Bracket Drop | 75 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 752 mm | 777 mm | 812 mm | 837 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Route 2 is a Raleigh Route model. There are 8 bikes that carry this model name. You can easily view all of the Raleigh Route bikes models from 2018, here.
Model range prices
The most economical model, the Raleigh Route 1 2018 has a starting price of 499$. Raleigh Route 2 2018 on the other hand is the most expensive at 599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2018 for 599$. Comparing this to the average Hybrid bike price, we see that the price is 6.58% more expensive.
Overview of components
Fork
The SunTour is included from the factory. It has a travel distance of 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the Route 2 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Route 2 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
