Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Tourney -
Suspension Rigid -
Motor hub-drive -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Aluminum Custom Butted Aluminum, Comfort Geometry
Suspension Fork
Chromoly Rigid w/Fender Mounts
Drivetrain
Rear Derailleur
Shimano Tourney
Shift Levers
Shimano SL-TX50 7spd
Crank
Alloy w/Heron chainring 42T
Bottom Bracket
VP Sealed cartridge
Chain
KMC X8
Pedals
Raleigh Comfort Platform
Wheels
Front Hub
Alloy Disc QR 36h
Rear Hub
Motor
Spokes
Stainless
Tires
Kenda K-1068 w/skin sidewalls 700x35c
Brakes
Brakes
Alloy Linear Pull
Cockpit
Stem
Alloy quill 40mm
Handlebar
Alloy 640mm
Grips
Raleigh Comfort
Headset
Alloy Ahead 1"
Seat
Saddle
Raleigh Comfort
Seatpost
Alloy 27.2x3500mm
Motor & Battery
Motor
Motor
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.58 mm |
| Front Center | 650 | 682 mm |
| Rake | 50 mm | 50 mm |
| Trail | 74 mm | 76 mm |
| Stack | 589 mm | 646 mm |
| Reach | 397 mm | 410 mm |
| Top Tube Length | 590 mm | 620 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Seat Tube Length | 480 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 220 mm |
| Chainstay Length | 456 mm | 456 mm |
| Wheelbase | 1098 mm | 1130 mm |
| Bottom Bracket Drop | 67 mm | 67 mm |
| Standover Height | 746 mm | 806 mm |
| Wheels | 700 | 700 |
About this model

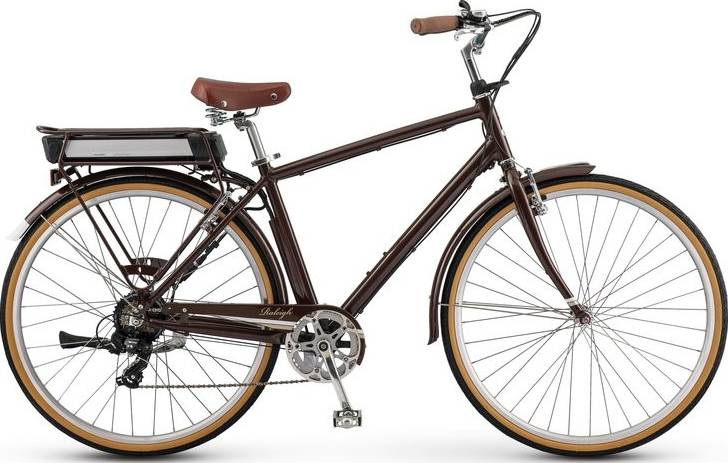

Superbe iE is a Raleigh E Superbe model. Raleigh launched 4 e-bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Raleigh Superbe iE Step Thru 2017 is the most affordable e-bike of this model and has a price of 1599$. On the other hand, Raleigh Superbe iE 2017, is the most expensive and costs 1599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
General Urban e-bikes average price
If you want to purchase a solid General Urban e-bike, it is important to know that the average cost is 2098$. However, even if your budget is less than the average, you might still be able to get a top-quality General Urban e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Raleigh Superbe iE price was 1599$. If we compare this with the average General Urban e-bike cost we notice that the price is 31.21% lower.
Overview of components
Fork material
The fork on this e-bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
The Superbe iE 2017 e-bike is equipped with 700c wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Raleigh Superbe iE has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
