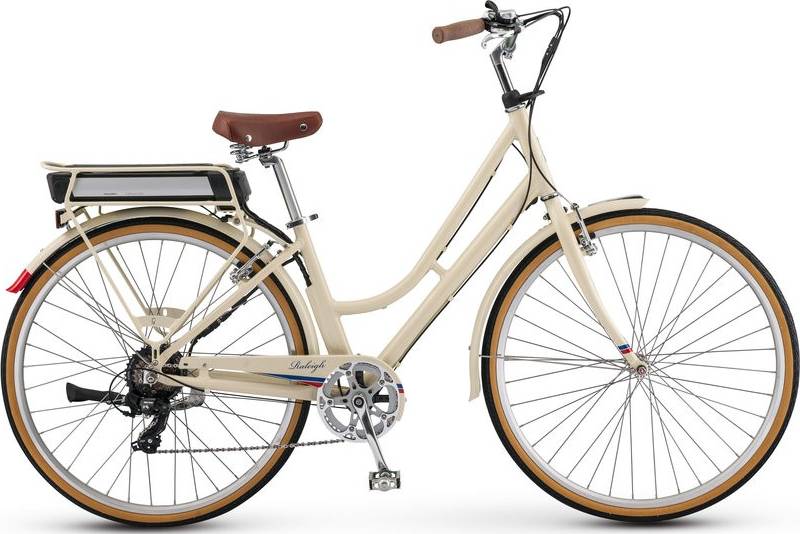

Raleigh Superbe iE Step Thru 2017
2017 E-bike
Estimate price |
1,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Tourney -
Suspension Rigid -
Motor hub-drive -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Aluminum Custom Butted Aluminum, Comfort Geometry
Suspension Fork
Chromoly Rigid w/Fender Mounts
Drivetrain
Rear Derailleur
Shimano Tourney
Shift Levers
Shimano SL-TX50 7spd
Crank
Alloy w/Heron chainring 42T
Bottom Bracket
VP Sealed cartridge
Chain
KMC X8
Pedals
Raleigh Comfort Platform
Wheels
Front Hub
Alloy Disc QR 36h
Rear Hub
Motor
Spokes
Stainless
Tires
Kenda K-1068 w/skin sidewalls 700x35c
Brakes
Brakes
Alloy Linear Pull
Cockpit
Stem
Alloy quill 40mm
Handlebar
Alloy 640mm
Grips
Raleigh Comfort
Headset
Alloy Ahead 1"
Seat
Saddle
Raleigh Comfort
Seatpost
Alloy 27.2x3500mm
Motor & Battery
Motor
Motor
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.77 mm |
| Front Center | 631 mm | 648 mm |
| Rake | 50 mm | 50 mm |
| Trail | 78 mm | 70 mm |
| Stack | 634 mm | 654 mm |
| Reach | 368 mm | 369 mm |
| Top Tube Length | 573 mm | 588 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Seat Tube Length | 420 mm | 470 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° |
| Head Tube Length | 200 mm | 250 mm |
| Chainstay Length | 464 mm | 464 mm |
| Wheelbase | 1087 mm | 1104 mm |
| Bottom Bracket Drop | 67 mm | 67 mm |
| Standover Height | 502 mm | 531 mm |
| Wheels | 700 | 700 |
Model Overview
Superbe iE Step Thru completes the Raleigh E Superbe model. Raleigh released 4 e-bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Raleigh Superbe iE Step Thru 2017 is the most economical model, with a starting price of 1599$. Raleigh Superbe iE 2017 on the other hand costs 1599$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for General Urban e-bikes
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Urban e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Raleigh released this model in 2017, its price was 1599$. Doing a quick comparison, we notice that Superbe iE Step Thru price is 31.21% smaller than the average cost of a General Urban e-bike.
Superbe iE Step Thru components
Fork material
The fork is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
When it comes to wheels, the Superbe iE Step Thru e-bike is equipped with the 700c model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Raleigh Superbe iE Step Thru is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
