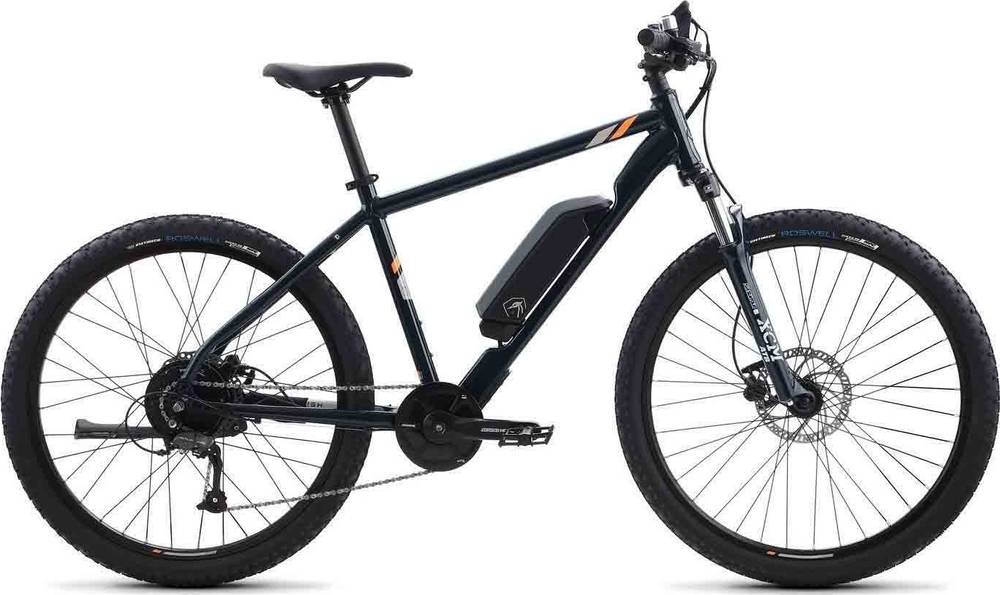

Raleigh Talus iE Step Over 2019
2019 E-bike
Estimate price |
1,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 80mm -
Fork SunTour XCM
-
Groupset Altus, Suntour SR -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery SR Suntour Li-Ion 410Wh Downtube Mounted, w/Lockset -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lightweight 7005 Alloy, Trail Geometry with Rack Mounts
Suspension Fork
SR Suntour XCM-DS Suspension Fork, 80mm Travel
Drivetrain
Rear Derailleur
Shimano Altus RD-M370, 9 Speed
Shift Levers
Shimano Altus SL-M2000 Rapid Fire, 9 Speed
Cassette
38 Tooth w/Double Chainguard
Crank
SR Suntour Alloy Black, 170mm, with Torque, Cadence and Speed Sensor
Chain
KMC X9
Pedals
Alloy Body, Black
Wheels
Front Hub
Formula, 36 Hole, W/ QR
Rear Hub
SR Suntour E25 Performance Rear Hub, 36 Hole, Bolt-on
Rims
27.5” Alloy Double Wall, Black Annodized
Spokes
Black w/Silver Nipples
Tires
Vee Rubber, Off-Road Style, 27.5”x 2.25”
Brakes
Brakes
Tektro Hydraulic Disc, 180mm Rotors
Brake Levers
Tektro 2 Finger Lever
Cockpit
Stem
Raleigh Aluminum Alloy, w/7 Degree Rise
Handlebar
Raleigh Alloy Bars, 15mm Rise, 9 Degree Bend
Grips
Raleigh Kraton Rubber, Black
Headset
Semi-Integrated, Sealed Mechanism
Seat
Saddle
Raleigh Custom Ergo Performance
Seatpost
Raleigh Aluminum Alloy, Forged Head, 350mm
Motor & Battery
Motor
SR Suntour E25 Performance Rear Hub Brushless DC Motor, 250W (400W max), 60Nm Torque
Battery
SR Suntour Li-Ion 410Wh Downtube Mounted, w/Lockset
Remote
SR Suntour Multi-Function LED Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.46 mm |
| Front Center | 663 mm | 689 mm |
| Rake | 41 mm | 42 mm |
| Trail | 76 mm | 75 mm |
| Stack | 603 mm | 621 mm |
| Reach | 408 mm | 426 mm |
| Top Tube Length | 605 mm | 630 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Seat Tube Length | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 135 mm | 135 mm |
| Chainstay Length | 475 mm | 475 mm |
| Wheelbase | 1135 mm | 1161 mm |
| Bottom Bracket Drop | 44 mm | 44 mm |
| Standover Height | 808 mm | 808 mm |
| Wheels | 650 | 650 |
About this model
Talus iE Step Over completes the Raleigh E Talus model. Raleigh released 3 e-bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Raleigh Talus iE Step Over 2019 is the most economical model, with a starting price of 1699$. Raleigh Talus iE Step Thru 2019 on the other hand costs 1699$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Fitness e-bikes
Our math shows that the average cost of a dependable Fitness e-bike is 2351$. However, you could also get a good Fitness e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Raleigh released this model in 2019, its price was 1699$. Comparing this to the average Fitness e-bike price, we see that the price is 38.38% smaller.
Talus iE Step Over components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The Talus iE Step Over 2019 e-bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Talus iE Step Over has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
