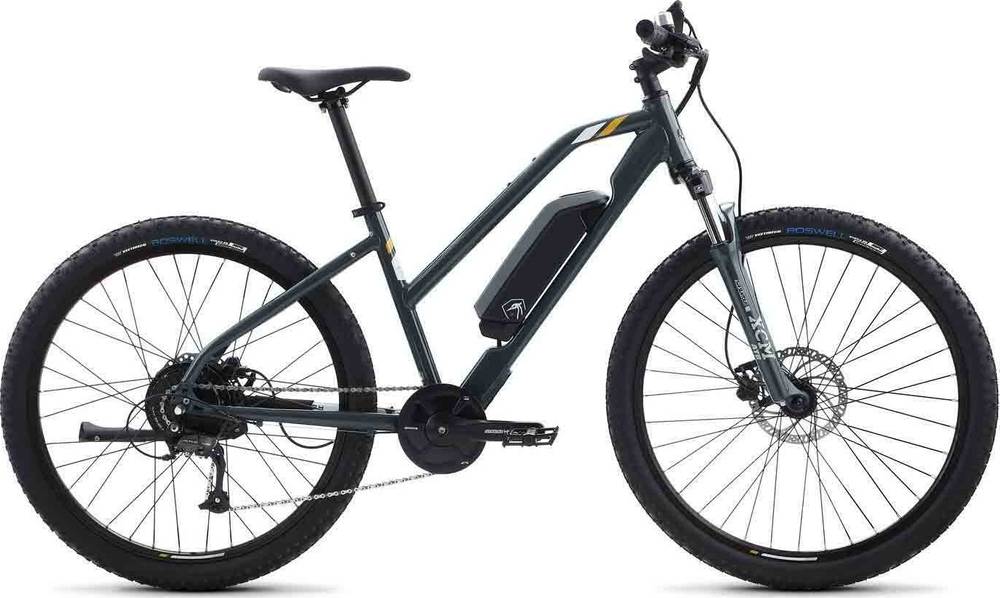

Raleigh Talus iE Step Thru 2019
2019 E-bike
Estimate price |
1,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 80mm -
Fork SunTour XCM
-
Groupset Altus, Suntour SR -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery SR Suntour Li-Ion 410Wh Downtube Mounted, w/Lockset -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lightweight 7005 Alloy, Trail Geometry with Rack Mounts
Suspension Fork
SR Suntour XCM-DS Suspension Fork, 80mm Travel
Drivetrain
Rear Derailleur
Shimano Altus RD-M370, 9 Speed
Shift Levers
Shimano Altus SL-M2000 Rapid Fire, 9 Speed
Cassette
38 Tooth w/Double Chainguard
Crank
SR Suntour Alloy Black, 170mm, with Torque, Cadence and Speed Sensor
Chain
KMC X9
Pedals
Alloy Body, Black
Wheels
Front Hub
Formula, 36 Hole, W/ QR
Rear Hub
SR Suntour E25 Performance Rear Hub, 36 Hole, Bolt-on
Rims
27.5” Alloy Double Wall, Black Annodized
Spokes
Black w/Silver Nipples
Tires
Vee Rubber, Off-Road Style, 27.5”x 2.25”
Brakes
Brakes
Tektro Hydraulic Disc, 180mm Rotors
Brake Levers
Tektro 2 Finger Lever
Cockpit
Stem
Raleigh Aluminum Alloy, w/7 Degree Rise
Handlebar
Raleigh Alloy Bars, 15mm Rise, 9 Degree Bend
Grips
Raleigh Kraton Rubber, Black
Headset
Semi-Integrated, Sealed Mechanism
Seat
Saddle
Raleigh Custom Ergo Performance
Seatpost
Raleigh Aluminum Alloy, Forged Head, 350mm
Motor & Battery
Motor
SR Suntour E25 Performance Rear Hub Brushless DC Motor, 250W (400W max), 60Nm Torque
Battery
SR Suntour Li-Ion 410Wh Downtube Mounted, w/Lockset
Remote
SR Suntour Multi-Function LED Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.48 mm |
| Front Center | 644 mm | 663 mm |
| Rake | 42 mm | 41 mm |
| Trail | 75 mm | 76 mm |
| Stack | 594 mm | 604 mm |
| Reach | 392 mm | 409 mm |
| Top Tube Length | 586 mm | 606 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Seat Tube Length | 430 mm | 480 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 135 mm |
| Chainstay Length | 476 mm | 476 mm |
| Wheelbase | 1116 mm | 1136 mm |
| Bottom Bracket Drop | 44 mm | 44 mm |
| Standover Height | 670 mm | 665 mm |
| Wheels | 650 | 650 |
About this model
Talus iE Step Thru is part of the Raleigh E Talus model. There are 3 e-bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Raleigh Talus iE Step Over 2019 has a starting price of 1699$. Raleigh Talus iE Step Thru 2019 on the other hand is the most expensive at 1699$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Fitness e-bikes average price
If you want to purchase a solid Fitness e-bike, it is important to know that the average cost is 2351$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2019 and its price was 1699$. If we compare this with the average Fitness e-bike cost we notice that the price is 38.38% smaller.
Overview of components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Raleigh Talus iE Step Thru 2019, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Raleigh Talus iE Step Thru has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
