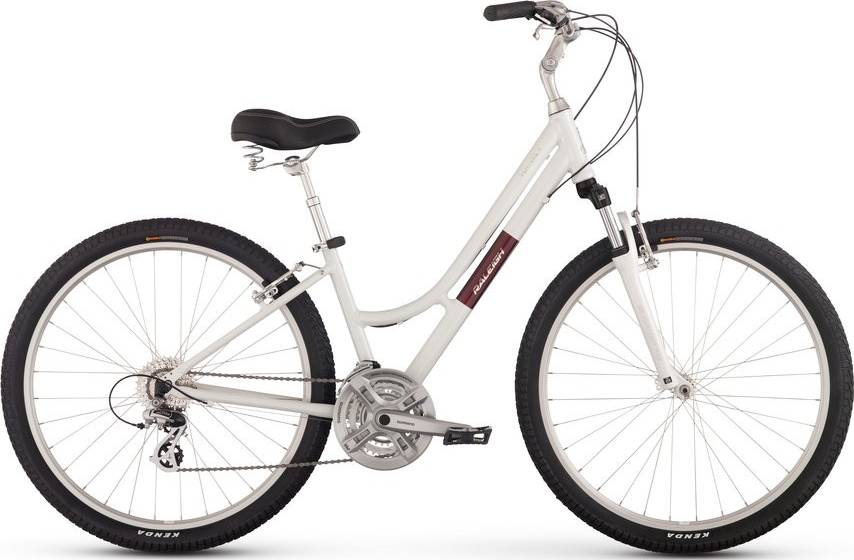

Raleigh Venture 4.0 Step Thru 2017
2017 Urban
Estimate price |
449$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Fork SunTour -
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061, Raleigh "True Comfort" Geometry
Suspension Fork
SR Suntour M3030, 27.5"
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano TX51
Shift Levers
Shimano EF-51 EZ Fire 8spd
Cassette
SRAM PG830 8spd (11-32t)
Crank
Shimano FC-M171 48/38/28t
Bottom Bracket
Sealed Cartridge 68/122
Chain
KMC HG40
Pedals
Raleigh Comfort Platform
Wheels
Front Hub
Joytech Alloy QR 32h
Rear Hub
Shimano32h Cassette
Rims
Weinmann XTB, 32h, 27.5"
Spokes
14g Stainless Steel, w/ Brass Nipples
Tires
Kenda K841A 27.5x1.95
Brakes
Brakes
Promax Alloy V-Brake
Brake Levers
Shimano EF-51
Cockpit
Stem
Alloy Quill 25.4, EXT:90mm, Adjustable Rise
Handlebar
Alloy 6061 Comfort Width: 640mm Rise: 50mm
Grips
Raleigh Comfort Grip
Headset
Threaded 1-1/8"
Seat
Saddle
Raleigh Comfort Plush
Seatpost
Alloy Micro Adjust Bootless Suspension 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.84 mm | 1.8 mm | 1.86 mm | 1.86 mm |
| Front Center | 587 mm | 618 mm | 618 mm | 633 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 73 mm | 56 mm | 62 mm | 73 mm |
| Stack | 628 mm | 637 mm | 655 mm | 684 mm |
| Reach | 342 mm | 353 mm | 352 mm | 368 mm |
| Top Tube Length | 551 mm | 566 mm | 581 mm | 596 mm |
| Seat Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 350 mm | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 200 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1035 mm | 1066 mm | 1066 mm | 1081 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 546 mm | 546 mm | 546 mm | 556 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Venture 4.0 Step Thru is a Raleigh Venture model. Raleigh launched 12 bikes of this model so far. You can easily view all of the Raleigh Venture bikes models from 2017, here.
Model range prices
Raleigh Venture 2017 is the most economical model, with a starting price of 299$. Raleigh Venture 4.0 Step Thru 2017 on the other hand costs 449$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Comfort bikes
Our math shows that the average cost of a dependable Comfort bike is 360$. However, even though the average price of a Comfort bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2017 for 449$. Comparing this to the average Comfort bike price, we see that the price is 24.72% more expensive.
Venture 4.0 Step Thru components
Fork
This bike has the SunTour fork installed. The fork’s travel is mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Venture 4.0 Step Thru are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
