Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Alloy Gravel, Thru-Axle, Disc Tabs, Taper HT
Suspension Fork
Alloy SPF Formed, Tapered Steerer, Thru-Axle, Disc Post Mount
Drivetrain
Rear Derailleur
Shimano Claris RD-2000, 8 Speed
Front Derailleur
Shimano Claris FD-2000
Shift Levers
Shimano Claris ST-2000, 8 Speed
Cassette
Shimano Claris HG-50 8 Speed, 11-32
Crank
Alloy 3peice Road Crank, 46/34 Tooth, Square Taper
Bottom Bracket
Sealed Cartirdge Bearing
Chain
KMC X8
Pedals
Resin Platform Pedal
Wheels
Front Hub
Alloy Disc, Thru-Axle 15mm, 28 Hole
Rear Hub
Alloy Disc, Thru-Axle, 28 Hole
Rims
Raleigh Alloy Double Wall, 700c, 28 Hole
Spokes
14g Stainless with Brass Nipples
Tires
Clement X'PLOR USH, 700x35c
Brakes
Brake Levers
Shimano Claris
Cockpit
Stem
Raleigh 7° 3D Forged, 31.8, 90/100/110mm
Handlebar
Raleigh 200 series 31.8 with 12 Degree Flare, 38/40/42/44
Headset
Integrated Cartridge Bearings
Seat
Saddle
Raleigh Series Saddle with Steel Rail
Seatpost
Raleigh Alloy Micro Adjust 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.51 mm | 1.51 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 276 mm | 276 mm |
| Front Center | 597 mm | 598 mm | 614 mm | 619 mm | 634 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 69 mm | 67 mm | 67 mm | 64 mm | 64 mm |
| Stack | 554 mm | 571 mm | 585 mm | 608 mm | 622 mm |
| Reach | 383 mm | 377 mm | 388 mm | 390 mm | 400 mm |
| Top Tube Length | 535 mm | 550 mm | 565 mm | 580 mm | 595 mm |
| Seat Tube Angle | 74.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 120 mm | 140 mm | 155 mm | 180 mm | 195 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1031 mm | 1032 mm | 1048 mm | 1054 mm | 1069 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 72 mm | 72 mm |
| Standover Height | 775 mm | 795 mm | 810 mm | 830 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |

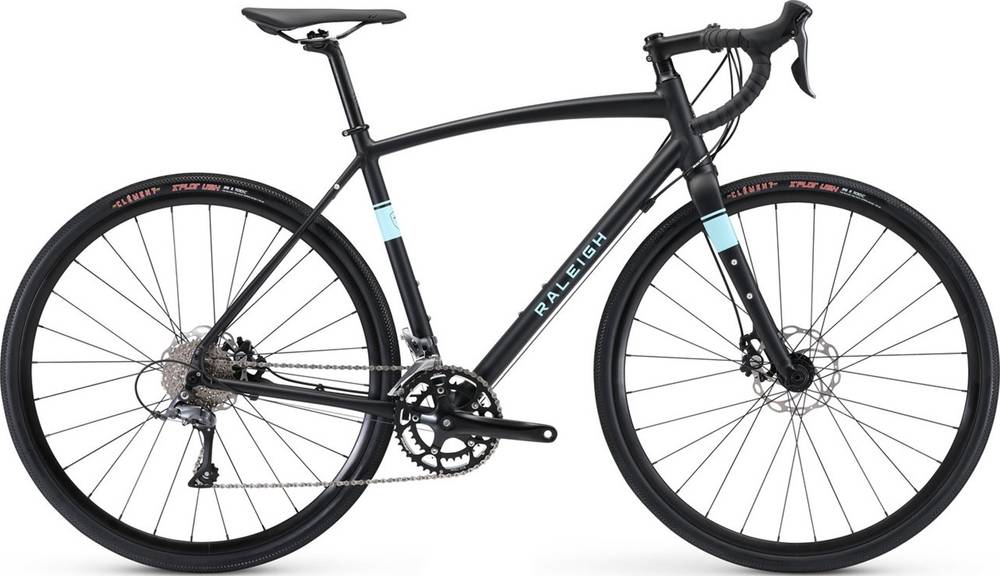

Model Overview
Willard 1 is a Raleigh Willard model. Raleigh released 12 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Raleigh Willard 1 2018 is the most affordable bike of this model and has a price of 849$. On the other hand, Raleigh Willard 3 2018, is the most expensive and costs 1399$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 849$. Doing a quick comparison, we notice that Willard 1 price is 189.99% smaller than the average cost of a Gravel bike.
Willard 1 components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on Willard 1 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Willard 1 has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
