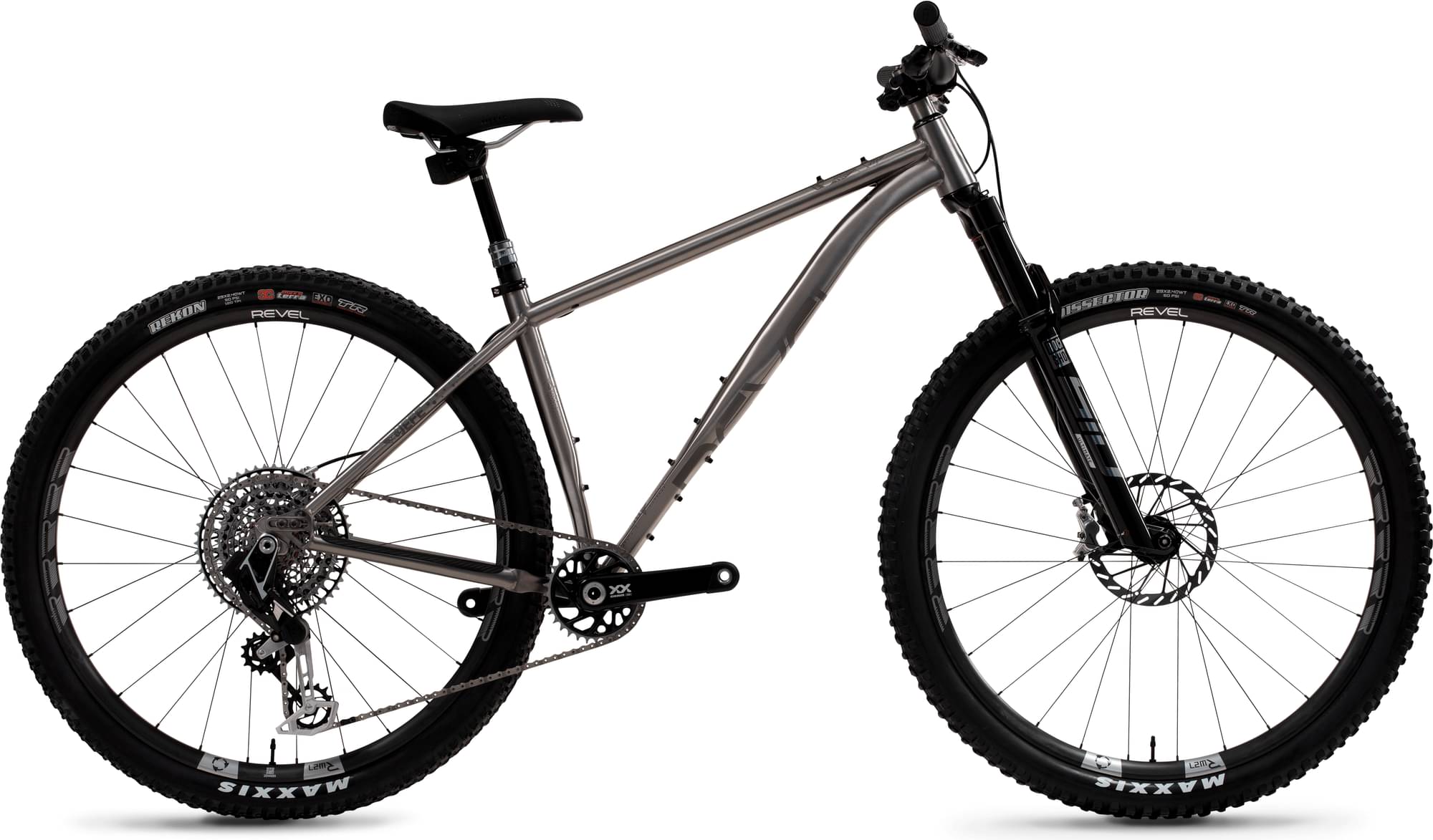

Revel El Jefe SHIMANO XT 2023
2023 Mountain
Estimate price |
5,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 29" -
Travel Front 120mm -
Fork Fox Factory Float 34
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel El Jefe 29" Hardtail
Suspension Fork
Fox Float 34 Step Cast Factory Series Fit4 120mm
Drivetrain
Rear Derailleur
Shimano XT M8100
Shift Levers
Shimano XT M8100 12spd
Cassette
Shimano XT M8100 10-51 12spd
Crank
Shimano XT M8100 170mm 32t
Bottom Bracket
Shimano XT MT800
Chain
Shimano XT M8100 12spd
Wheels
Rims
Industry Nine Trail S, 1/1 Hubs
Tires
Maxxis Dissector 29? x 2.4? EXO Front, Maxxis Rekon 29? x 2.4? EXO Rear
Brakes
Brakes
Shimano XT M8100 2-Piston
Cockpit
Stem
RaceFace Turbine R 35 x 40mm
Handlebar
RaceFace NEXT R 35, 800mm x 20mm Rise
Grips
Lizard Skins Charger Evo Grip Black
Headset
Cane Creek 40-series
Seat
Saddle
SDG Bel-Air Lux-Alloy
Seatpost
Crank Brothers Highline 7, SM (31.6mm x 125mm), MD (31.6mm x 125mm), LG (31.6mm x 150mm), XL (31.6 x 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm | 299 mm |
| Front Center | 710 mm | 735 mm | 756 mm | 787 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 112 mm | 112 mm | 112 mm | 112 mm |
| Stack | 590 mm | 598 mm | 606 mm | 618 mm |
| Reach | 426 mm | 446 mm | 465 mm | 490 mm |
| Top Tube Length | 581 mm | 606 mm | 631 mm | 661 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 374 mm | 420 mm | 460 mm | 485 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 86 mm | 96 mm | 106 mm | 116 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 1112 mm | 1137 mm | 1158 mm | 1190 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 691 mm | 726 mm | 761 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 167 cm | 177 cm | 188 cm | 198 cm |
About this model
El Jefe SHIMANO XT is part of the Revel El Jefe model. Revel launched 9 bikes of this model so far. Take a sneak peek at all Revel El Jefe bikes models from 2023, by clicking here.
Model range prices
Revel El Jefe SRAM GX EAGLE 2023 is the most economical model, with a starting price of 5199$. Revel El Jefe XX Eagle Transmission 2023 on the other hand costs 9599$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2023 and its price was 5499$. In conclusion, this bike price is 99.09% more expensive than the price of the average Trail bike.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the El Jefe SHIMANO XT model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The El Jefe SHIMANO XT has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
El Jefe SHIMANO XT comes in 4 sizes, that range from 154 cm – 198 cm (5.05 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
The Revel model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
