Bike details
Overview
Key information split into simple groups.

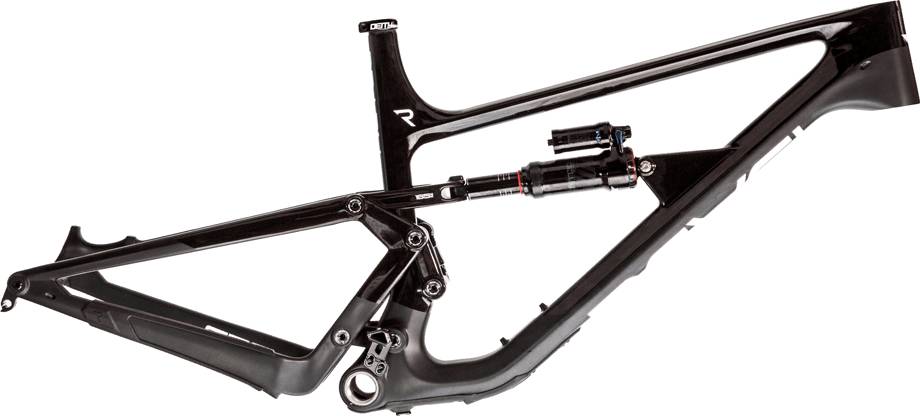

Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 165mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Bottom Bracket
Threaded (73mm English threaded)
Chain Guide
Custom Revel guide included
Brakes
Brakes
180mm post mount / 203mm max
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.35 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 743 mm | 778 mm | 800 mm | 824 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 598 mm | 610 mm | 618 mm | 628 mm |
| Reach | 433 mm | 453 mm | 473 mm | 498 mm |
| Top Tube Length | 590 mm | 618 mm | 645 mm | 670 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 386 mm | 416 mm | 446 mm | 476 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 104 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1176 mm | 1211 mm | 1233 mm | 1257 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm | 11 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Rail – Frame belongs to the Revel Rail model. There are 26 frames that carry this model name. You can easily view all of the Revel Rail frames models from 2019, here.
Model range prices
Revel Rail – Frame 2019 is the most economical model, with a starting price of 2799$. Revel Rail – Frame and Fork 2019 on the other hand costs 3499$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro frames average price
If you want to purchase a solid Enduro frame, it is important to know that the average cost is 1895$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2019 for 2799$. Comparing the average cost of an Enduro frame to this one, you will see that Rail – Frame price is 47.7% higher.
Rail – Frame components
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Rail – Frame comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Revel Rail – Frame frame has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
