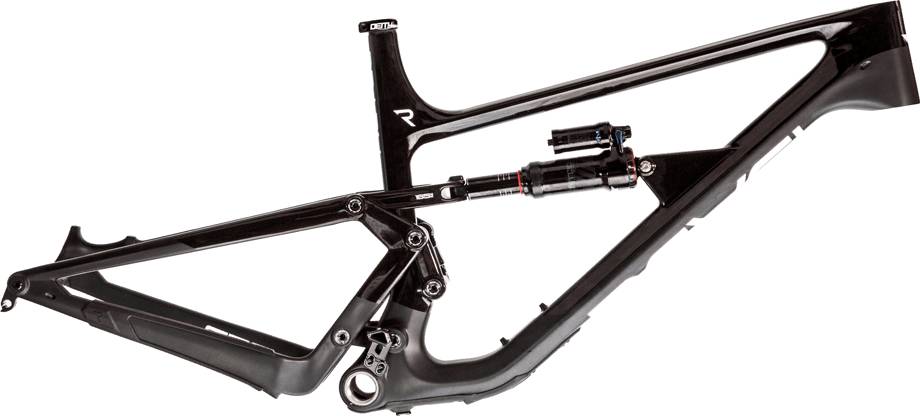

Revel Rail – Frame and Fork 2019
2019 Mountain
Estimate price |
3,499$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 165mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Bottom Bracket
Threaded (73mm English threaded)
Chain Guide
Custom Revel guide included
Brakes
Brakes
180mm post mount / 203mm max
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.35 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 743 mm | 778 mm | 800 mm | 824 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 598 mm | 610 mm | 618 mm | 628 mm |
| Reach | 433 mm | 453 mm | 473 mm | 498 mm |
| Top Tube Length | 590 mm | 618 mm | 645 mm | 670 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 386 mm | 416 mm | 446 mm | 476 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 104 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1176 mm | 1211 mm | 1233 mm | 1257 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm | 11 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Rail – Frame and Fork completes the Revel Rail model. Revel launched 26 frames of this model so far. Take a sneak peek at all Revel Rail frames models from 2019, by clicking here.
Model range prices
Revel Rail – Frame 2019 is the most affordable frame of this model and has a price of 2799$. On the other hand, Revel Rail – Frame and Fork 2019, is the most expensive and costs 3499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro frames
According to our math, the average price for a trustworthy Enduro frame is 1895$. However, this doesn’t mean that if you spend less money on an Enduro frame, you couldn’t get a decent one. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3499$. Doing a quick comparison, we notice that Rail – Frame and Fork price is 84.64% more expensive than the average cost of an Enduro frame.
Overview of components
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Brakes
Nothing is more important on a bike than its ability to brake properly. Revel Rail – Frame and Fork is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
