Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Select
-
Groupset GX Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rock Shox Pike Select 140mm(options available at checkout)
Rear Shock
RockShox Super Deluxe Select(options available at checkout)
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX Eagle
Crank
SRAM GX Eagle alloy DUB 170mm or 175mm 32t(options available at checkout)
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM GX Eagle
Chain Guide
Custom Revel guide included
Wheels
Rims
Industry 9 Enduro EN 1/1 29? alloy Wheelset
Tires
Maxxis Minion DHF 29? x 2.5? EXO+ Front, Maxxis DHR 29? x 2.4? EXO+ Rear
Brakes
Brakes
SRAM Guide R
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Truvativ Descendant 35mm x 40mm
Handlebar
Truvativ Descendant Alloy 35 x 800mm
Grips
Ergon GE1 Black
Headset
CaneCreek 40-series IS42/IS52
Seat
Saddle
Ergon SM10 Standard Black
Seatpost
Crank Brothers Highline 3 31.6 x 150mm or 170mm (options available at checkout)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 752 mm | 772 mm | 790 mm | 817 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 602 mm | 612 mm | 620 mm | 630 mm |
| Reach | 426 mm | 446 mm | 466 mm | 491 mm |
| Top Tube Length | 590 mm | 612 mm | 635 mm | 662 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 385 mm | 415 mm | 445 mm | 475 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 96 mm | 107 mm | 116 mm | 127 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1184 mm | 1204 mm | 1222 mm | 1249 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

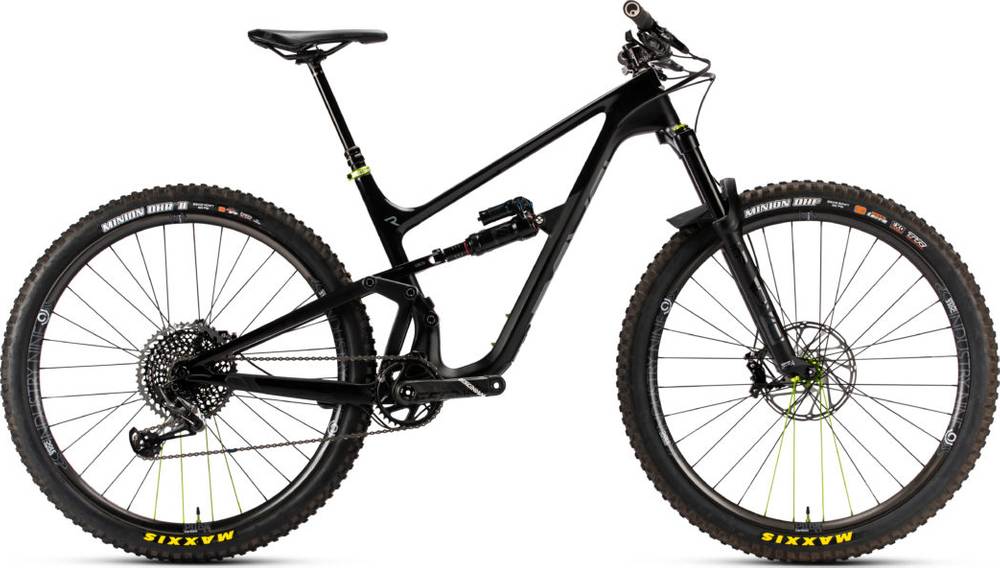

About this model
Rascal – GX Eagle completes the Revel Rascal model. There are 28 bikes that carry this model name. You can easily view all of the Revel Rascal bikes models from 2020, here.
Model range prices
The most economical model, the Revel Rascal – GX Eagle 2020 has a starting price of 4999$. Revel Rascal – XX1 Eagle AXS 2020 on the other hand is the most expensive at 9999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2020 and its price was 4999$. Doing a quick comparison, we notice that Rascal – GX Eagle price is 80.99% more expensive than the average cost of a Trail bike.
Rascal – GX Eagle components
Fork
The fork installed on this bike is the RockShox Pike Select model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the RockShox Super Deluxe Select(options available at checkout) model, with a travel of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Rascal – GX Eagle 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Revel Rascal – GX Eagle has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Rascal – GX Eagle comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Rascal – GX Eagle. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
