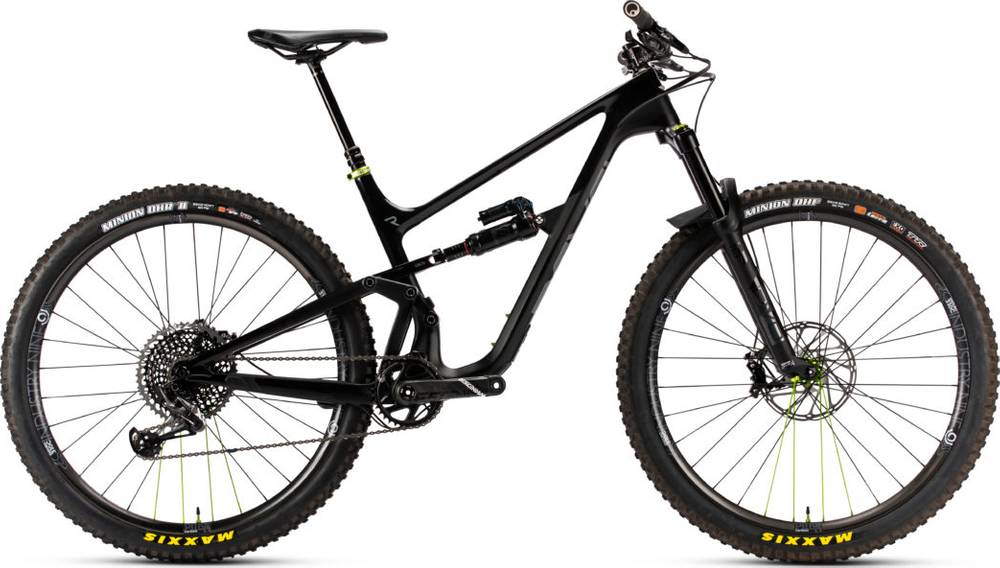

Revel Rascal – XX1 Eagle AXS 2020
2020 Mountain
Estimate price |
9,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Pike Ultimate RCT3 140mm,
Drivetrain
Rear Derailleur
SRAM XX1 AXS Eagle
Shift Levers
SRAM AXS Controller
Cassette
SRAM XX1 Eagle
Crank
SRAM XX1 Eagle Carbon DUB 170mm or 175mm 34t(options available at checkout)
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM XX1 Eagle
Chain Guide
Custom Revel guide included
Wheels
Rims
RW30 Industry 9 Hydra Wheelset
Tires
Maxxis Minion DHF 29? x 2.5? EXO+ Front, Maxxis DHR 29? x 2.4? EXO+ Rear
Brakes
Brakes
SRAM G2 Ultimate
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
ENVE M6 Carbon 31.8mm x 40mm
Handlebar
ENVE M6 Carbon 31.8 x 780mm
Grips
Ergon GE10 Black
Headset
CaneCreek 40-series IS42/IS52
Seat
Saddle
Ergon SM10 Standard Black
Seatpost
Rockshox Reverb Stealth AXS 1x 31.6 x 150mm or 170mm(options available at checkout)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 752 mm | 772 mm | 790 mm | 817 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 602 mm | 612 mm | 620 mm | 630 mm |
| Reach | 426 mm | 446 mm | 466 mm | 491 mm |
| Top Tube Length | 590 mm | 612 mm | 635 mm | 662 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 385 mm | 415 mm | 445 mm | 475 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 96 mm | 107 mm | 116 mm | 127 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1184 mm | 1204 mm | 1222 mm | 1249 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Rascal – XX1 Eagle AXS belongs to the Revel Rascal model. Revel released 28 bikes variations of this model so far. Take a sneak peek at all Revel Rascal bikes models from 2020, by clicking here.
Model range prices
Revel Rascal – GX Eagle 2020 is the cheapest bike model and costs 4999$. Revel Rascal – XX1 Eagle AXS 2020 is the most expensive one and costs 9999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9999$. In conclusion, this bike price is 262.02% more expensive than the price of the average Trail bike.
Overview of components
Fork
The Rascal – XX1 Eagle AXS comes factory-installed with the RockShox Pike Ultimate fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Rascal – XX1 Eagle AXS model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Rascal – XX1 Eagle AXS comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
