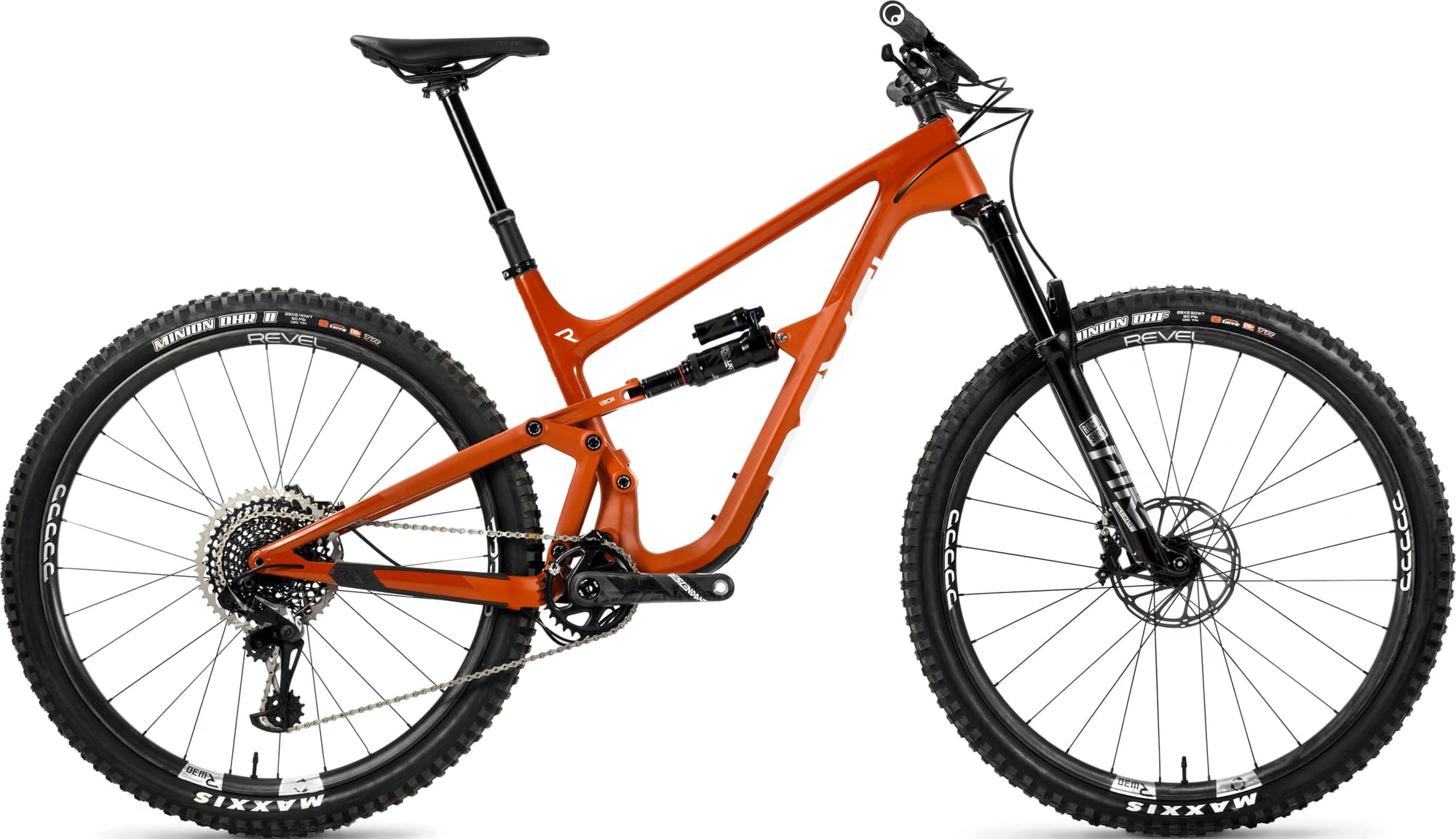

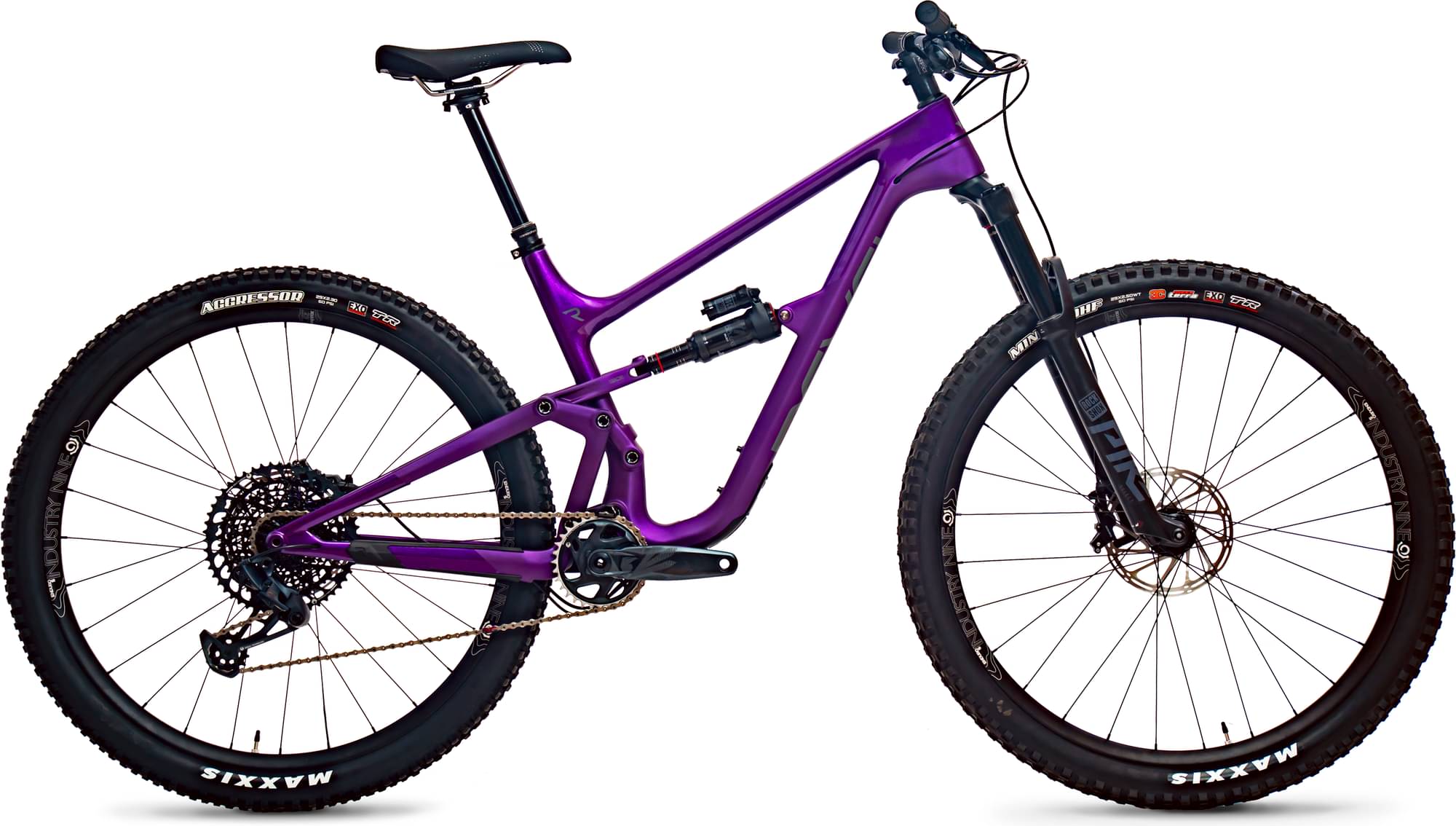

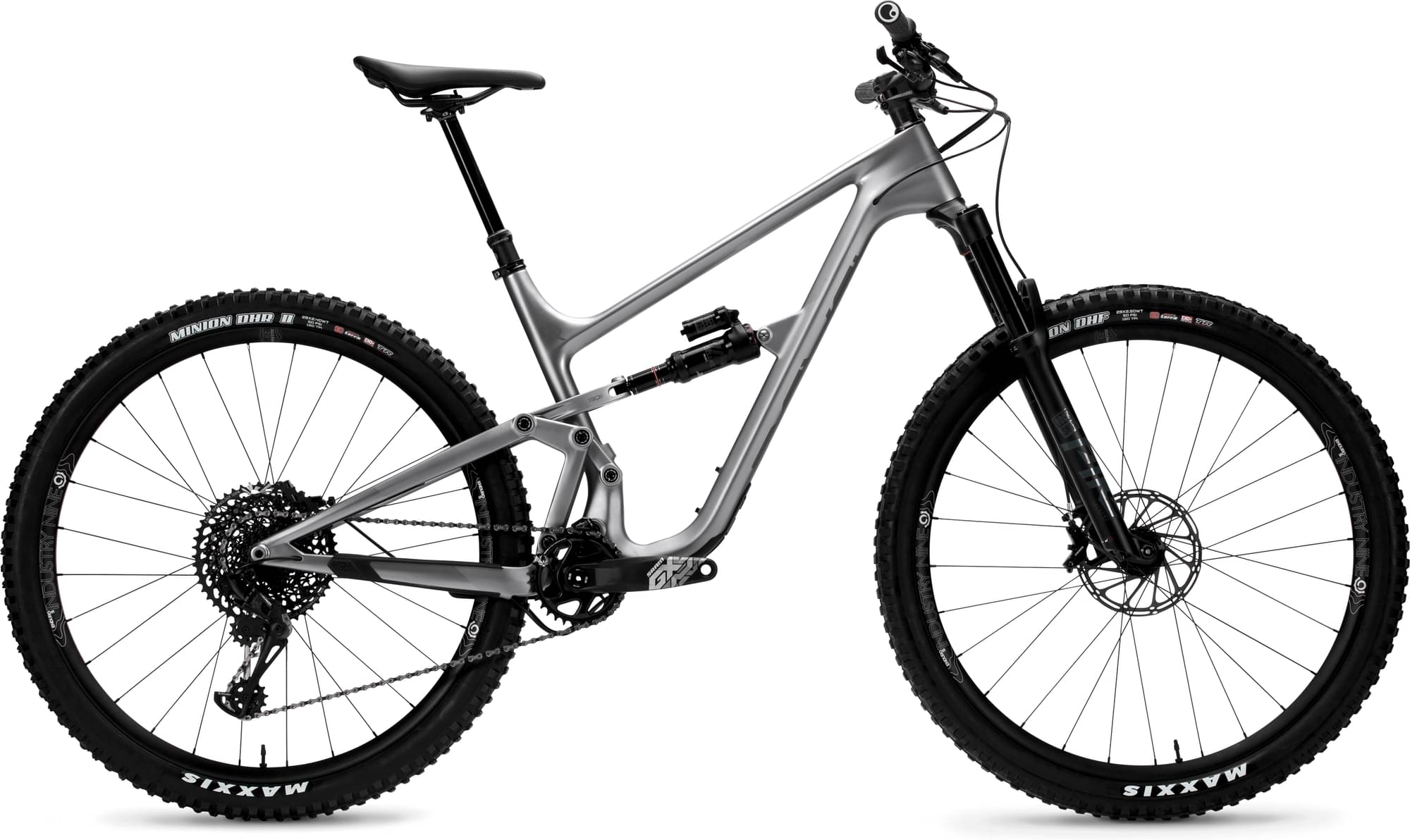

Revel Rascal SRAM XX1 AXS 2022
2022 Mountain
Estimate price |
10,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Lyrik Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
167cm - 177cm
LG
175cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Rascal 29? 130mm Travel
Suspension Fork
RockShox Lyrik Ultimate 140mm
Rear Shock
RockShox Super Deluxe Ultimate (*upgrade available)
Drivetrain
Rear Derailleur
SRAM XX1 AXS Eagle
Shift Levers
SRAM AXS Controller
Cassette
SRAM XX1 Eagle 10-52
Crank
SRAM Descendant Carbon DUB 170mm 32t
Bottom Bracket
SRAM DUB Threaded
Chain
SRAM XX1 Eagle
Wheels
Rims
Revel RW30 28H Rims, Industry Nine 1/1 Hubs, (*upgrade available)
Tires
Maxxis Minion DHF 29? x 2.5? EXO Front, Maxxis Aggressor 29? x 2.3? EXO Rear
Brakes
Brakes
SRAM G2 Ultimate or TRP Trail EVO
Cockpit
Stem
RaceFace Turbine R 35 x 40mm
Handlebar
RaceFace NEXT R 35, 800mm x 20mm Rise
Grips
Lizard Skins Charger Evo Grip Black
Headset
Cane Creek 40-series
Seat
Saddle
WTB Volt CroMo Black
Seatpost
Rockshox Reverb Stealth AXS, SM (31.6mm x 125mm), MD (31.6mm x 150mm), LG/XL (31.6mm x 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 752 mm | 772 mm | 790 mm | 817 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 602 mm | 612 mm | 620 mm | 630 mm |
| Reach | 426 mm | 446 mm | 466 mm | 491 mm |
| Top Tube Length | 590 mm | 612 mm | 635 mm | 662 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 385 mm | 415 mm | 445 mm | 475 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 96 mm | 107 mm | 116 mm | 127 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1184 mm | 1204 mm | 1222 mm | 1249 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 684 mm | 700 | 718 mm | 738 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 167 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 200 cm |
Model Overview
Rascal SRAM XX1 AXS completes the Revel Rascal model. Revel released 28 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Revel Rascal – GX Eagle 2022 is the most economical model, with a starting price of 5899$. Revel Rascal – XX1 Eagle AXS 2022 on the other hand costs 10999$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Revel Rascal SRAM XX1 AXS price was 10499$. Comparing this to the average Trail bike price, we see that the price is 280.12% more expensive.
Overview of components
Fork
Revel Rascal SRAM XX1 AXS 2022 bike is equipped with the RockShox Lyrik Ultimate fork, and has 140mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Revel Rascal SRAM XX1 AXS bike has the RockShox Super Deluxe Ultimate (*upgrade available) model installed, and has a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Rascal SRAM XX1 AXS 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Rascal SRAM XX1 AXS comes in 4 sizes, that range from 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
