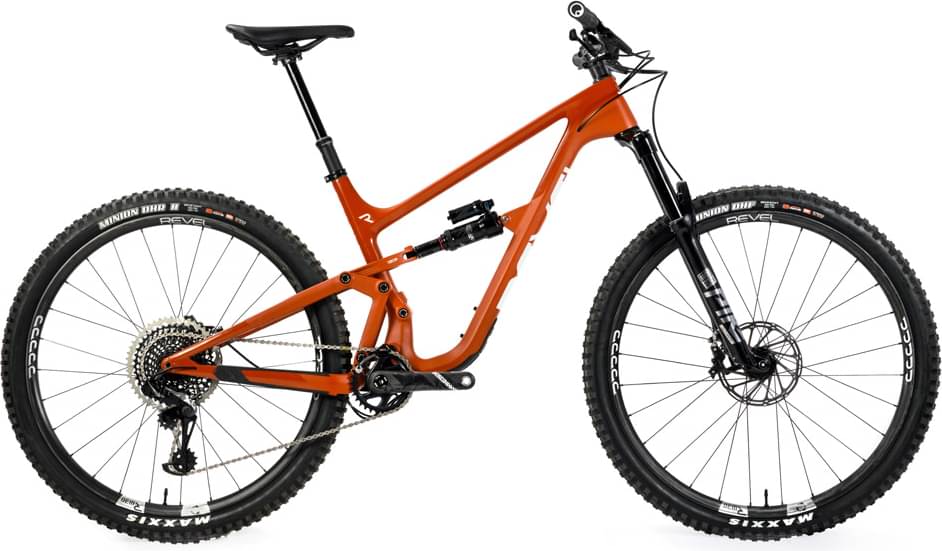

Revel Rascal – X01 Eagle 2022
2022 Mountain
Estimate price |
7,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Ultimate
-
Groupset X01 Eagle, Truvativ Descendant Carbon -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Pike Ultimate RCT3 140mm (*upgrade available)
Rear Shock
RockShox Super Deluxe Ultimate (*upgrade available)
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM X01 Eagle 10-52
Crank
SRAM Descendant Carbon DUB 170mm
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM X01 Eagle
Chain Guide
Custom Revel guide included
Wheels
Rims
RW30 Industry Nine 1/1 carbon Wheelset (*upgrade available)
Tires
Maxxis Minion DHF 29? x 2.5? EXO Front, Maxxis Aggressor 29? x 2.3? EXO Rear
Brakes
Brakes
SRAM G2 RSC
Disk Rotors
SRAM Centerline 180mm front & rear
Cockpit
Stem
RaceFace Turbine R 35 x 40mm
Handlebar
RaceFace NEXT R 35 x 780mm 20mm rise
Grips
Lizard Skins Charger Evo Grip Black
Headset
CaneCreek 40-series IS42/IS52
Seat
Saddle
WTB Volt CroMo Black
Seatpost
RaceFace Turbine R 31.6 x 125, 150, or 175mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 752 mm | 772 mm | 790 mm | 817 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 602 mm | 612 mm | 620 mm | 630 mm |
| Reach | 426 mm | 446 mm | 466 mm | 491 mm |
| Top Tube Length | 590 mm | 612 mm | 635 mm | 662 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 385 mm | 415 mm | 445 mm | 475 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 96 mm | 107 mm | 116 mm | 127 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1184 mm | 1204 mm | 1222 mm | 1249 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Rascal – X01 Eagle is part of the Revel Rascal model. 28 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Revel Rascal – GX Eagle 2022 is the cheapest bike model and costs 5899$. Revel Rascal – XX1 Eagle AXS 2022 is the most expensive one and costs 10999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 7999$. In conclusion, this bike price is 189.61% more expensive than the price of the average Trail bike.
Rascal – X01 Eagle components
Fork
Revel Rascal – X01 Eagle 2022 bike is equipped with the RockShox Pike Ultimate fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is RockShox Super Deluxe Ultimate (*upgrade available), with a travel distance of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Rascal – X01 Eagle 2022 bike is equipped with 29″ carbon wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Revel Rascal – X01 Eagle is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Revel Rascal – X01 Eagle includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
