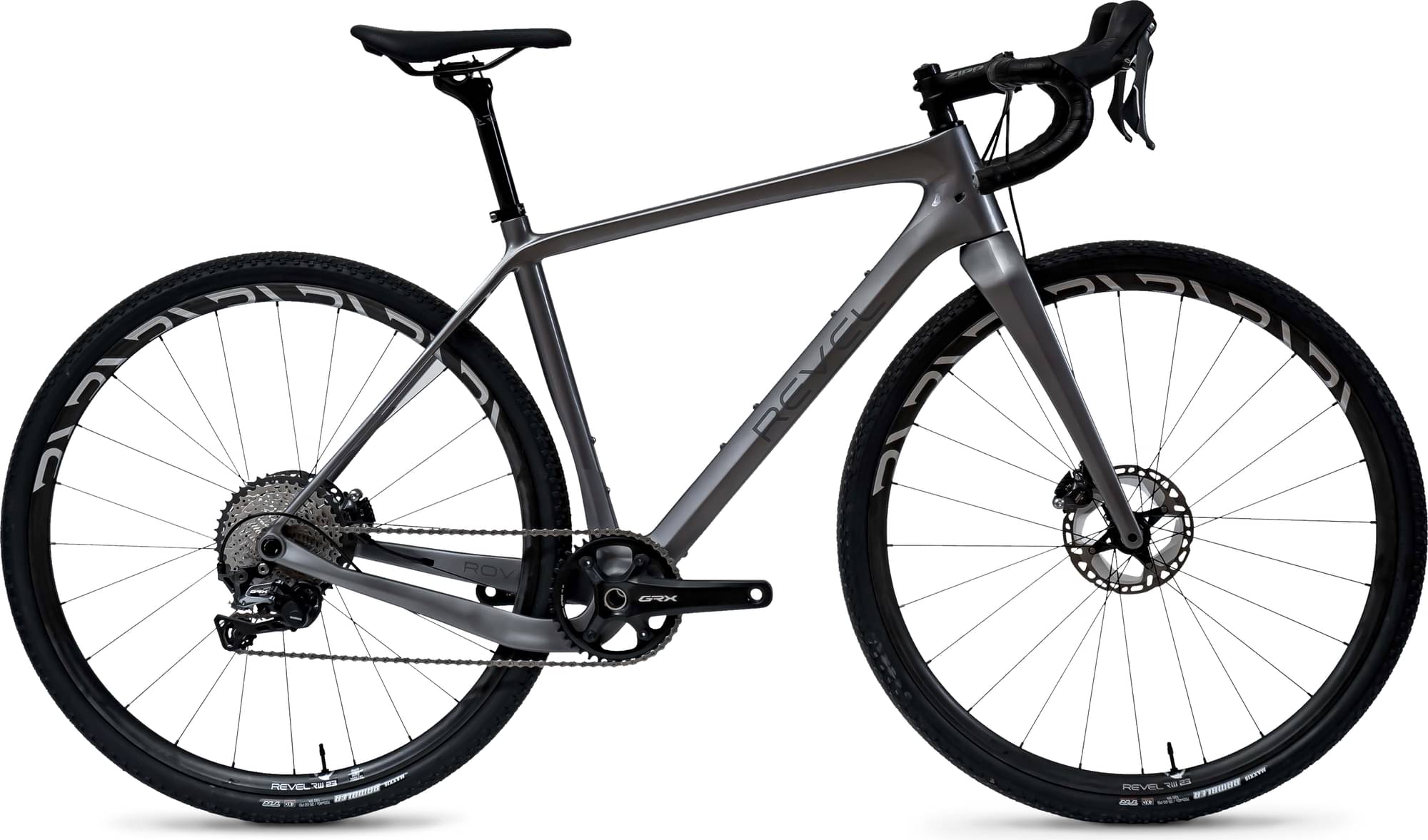

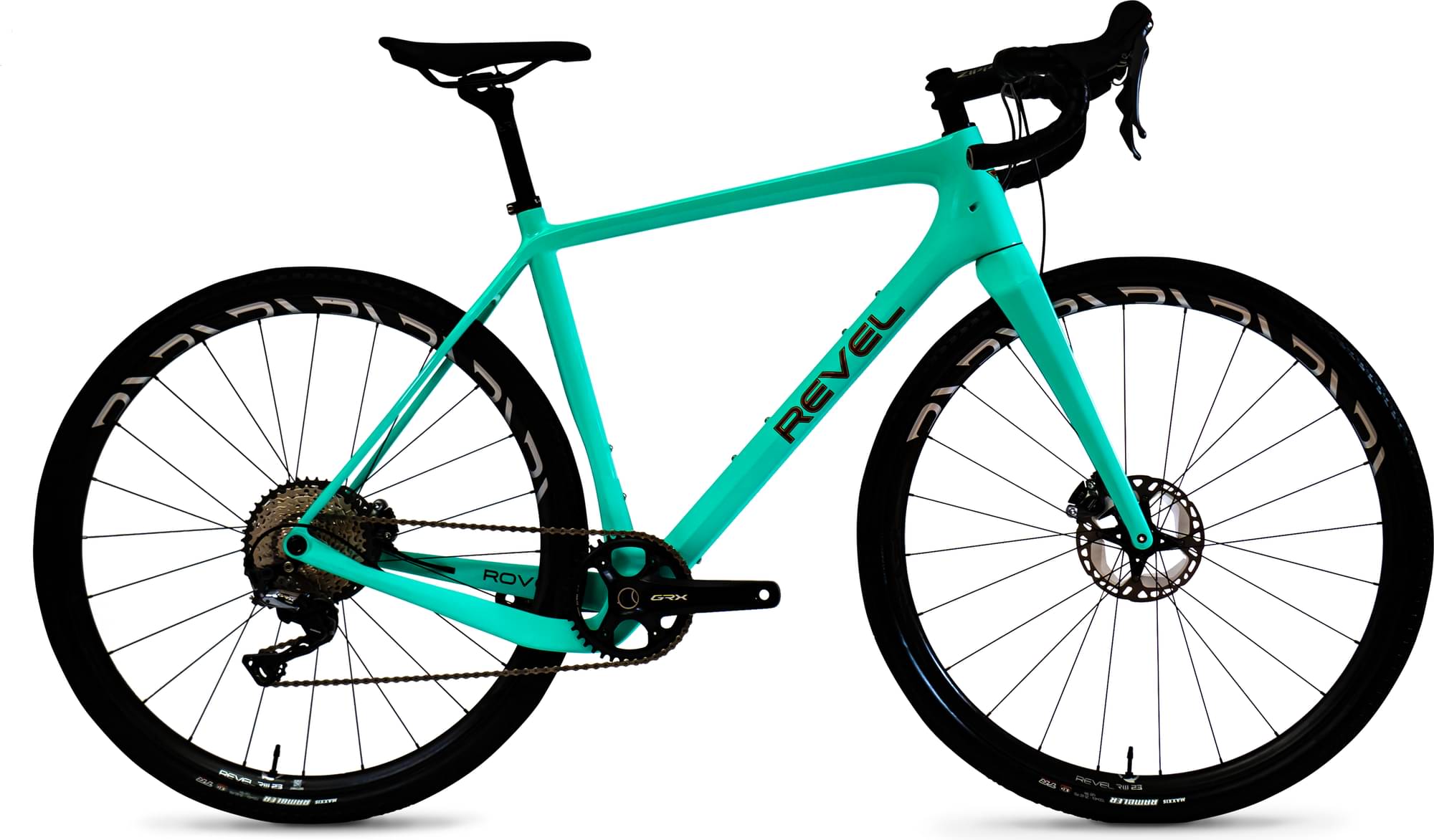

Revel Rover SRAM RED AXS KIT 2022
2022 Road
Estimate price |
8,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED XPLR eTap, RED AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
165cm - 177cm
LG
175cm - 185cm
XL
182cm - 193cm
XXL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Rover
Suspension Fork
Revel Gravel Fork 12×100 47mm
Drivetrain
Rear Derailleur
SRAM Red ETAP AXS XPLR 12spd
Shift Levers
SRAM Red ETAP AXS 12spd
Cassette
SRAM XPLR XG1271 10-44
Crank
SRAM Crankset RED 1 DUB DM42t 172.5mm
Bottom Bracket
SRAM DUB BSA 68 Road
Chain
SRAM Force 12spd
Wheels
Rims
Revel RW23 24H 700c Rims, Industry Nine Torch Road XD Hubs
Tires
Maxxis Rambler 700x40c
Brakes
Brakes
SRAM Red ETAP AXS Hydro
Cockpit
Stem
Zipp Service Course SL 90mm
Handlebar
Easton EC70 AX Flare 44cm
Headset
Cane Creek 40-series
Seat
Saddle
WTB Volt CroMo Black
Seatpost
Revel Carbon Seatpost 27.2mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.38 mm | 1.4 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 606 mm | 624 mm | 639 mm | 654 mm | 672 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Stack | 534 mm | 559 mm | 579 mm | 599 mm | 624 mm |
| Reach | 396 mm | 406 mm | 414 mm | 422 mm | 432 mm |
| Top Tube Length | 539 mm | 556 mm | 569 mm | 582 mm | 599 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 450 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 110 mm | 136 mm | 157 mm | 178 mm | 205 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1015 mm | 1033 mm | 1048 mm | 1063 mm | 1081 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 708 mm | 746 mm | 774 mm | 802 mm | 830 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 165 cm | 175 cm | 182 cm | 190 cm |
| Rider Max Height | 167 cm | 177 cm | 185 cm | 193 cm | 203 cm |
About this model
Rover SRAM RED AXS KIT is a Revel Rover model. 16 bikes variations carry this model name so far. Take a sneak peek at all Revel Rover bikes models from 2022, by clicking here.
Model range prices
Revel Rover – Sram Rival 2022 is the most economical model, with a starting price of 3999$. Revel Rover SRAM RED AXS KIT 2022 on the other hand costs 8199$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8199$. Comparing this to the average Gravel bike price, we see that the price is 233.02% more expensive.
Overview of components
Fork material
Rover SRAM RED AXS KIT has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Revel Rover SRAM RED AXS KIT 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Revel Rover SRAM RED AXS KIT bike has 5 sizes, in the range of 154 cm – 203 cm (5.05 ft – 6.66 ft). In conclusion, you won’t have a problem finding one that suits you.
