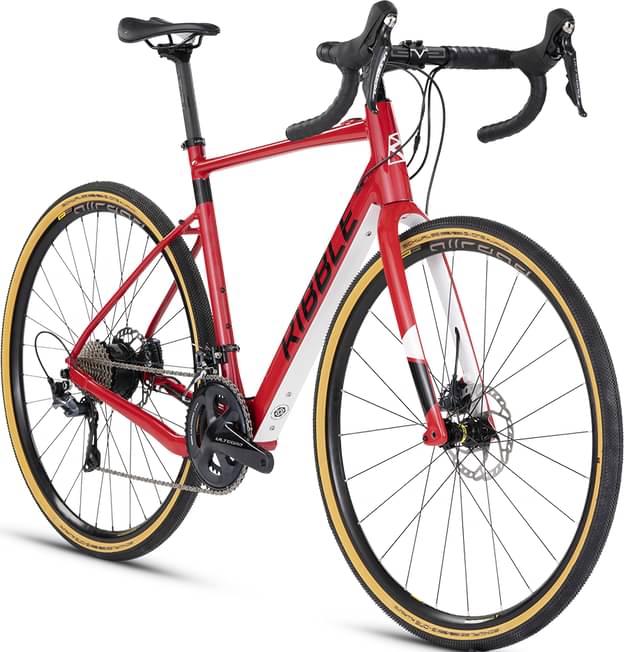

Ribble CGR AL e – Pro, Shimano Ultegra 2022
2022 E-bike
Estimate price |
4,549$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic I250 18650GA-10S/2P, 250Wh. -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Suspension Fork
CGR AL e Disc, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 Short Cage.
Front Derailleur
Shimano Ultegra R8000 Braze-On.
Shift Levers
Shimano Ultegra R8020 11-Speed Hydraulic.
Cassette
Shimano Ultegra R8000 11-Speed.
Crank
Shimano Ultegra R8000, 2x11 Speed, 50-34T.
Bottom Bracket
Shimano Press Fit BB71-41B, 86.5x41.
Chain
Shimano Ultegra HG701 11-Speed Super Narrow.
Wheels
Rims
Mavic Allroad Disc Alloy, 12x100F/12x142R.
Tires
Schwalbe G-One Allround TR, 700x40c, Tan Wall
Brakes
Brakes
Shimano Ultegra R8070 Hydraulic Disc.
Cockpit
Stem
LEVEL 2 3D-Forged 6061 Alloy, Black.
Handlebar
LEVEL 1 6061 Alloy, Black.
Headset
LEVEL 52, 42-52mm, Tapered, Black.
Seat
Saddle
Fizik Antares R7 Manganese, Black.
Seatpost
LEVEL 2 Carbon/Alloy, 27.2mm.
Motor & Battery
Motor
MAHLE SmartBike Systems X35+, M1, 250W.
Battery
Panasonic I250 18650GA-10S/2P, 250Wh.
Charger
Supplied with UK Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.5 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 51 mm | 50 mm | 51 mm | 51 mm | 49 mm |
| Trail | 69 mm | 67 mm | 63 mm | 60 mm | 62 mm |
| Stack | 558 mm | 570 mm | 591 mm | 612 mm | 622 mm |
| Reach | 367 mm | 379 mm | 382 mm | 385 mm | 397 mm |
| Top Tube Length | 522 mm | 542 mm | 557 mm | 572 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1023 mm | 1033 mm | 1038 mm | 1043 mm | 1057 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
Model Overview
CGR AL e – Pro, Shimano Ultegra is a Ribble E Cgr model. Ribble released 33 e-bikes variations of this model so far. You can easily view all of the Ribble E Cgr e-bikes models from 2022, here.
Model range prices
Ribble CGR AL e Step Through – Sport, Shimano Tiagra 2022 is the cheapest e-bike model and costs 2494$. Ribble CGR AL e – Pro, Shimano Ultegra 2022 is the most expensive one and costs 4135$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel e-bikes average price
Our math shows that the average cost of a dependable Gravel e-bike is 3642$. However, even though the average price of a Gravel e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Ribble released this model in 2022, its price was 4135$. Doing a quick comparison, we notice that CGR AL e – Pro, Shimano Ultegra price is 13.54% higher than the average cost of a Gravel e-bike.
CGR AL e – Pro, Shimano Ultegra components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the CGR AL e – Pro, Shimano Ultegra e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CGR AL e – Pro, Shimano Ultegra comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 5 sizes. They vary from 162 cm – 194 cm (5.31 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
