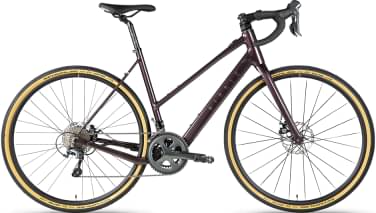

Ribble CGR AL e Step Through – Sport, Shimano Tiagra 2022
2022 E-bike
Estimate price |
2,694$
Weight | 14.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Battery Panasonic 36V/250Wh, 18650GA-10S/2P. -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
155cm - 169cm
MD/LG
167cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Heat Treated Aluminium, Seamless Welds.
Suspension Fork
CGR AL e Step Through, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 Medium Cage.
Front Derailleur
Shimano Tiagra 4700 Braze-On.
Shift Levers
Shimano Tiagra 4700 STI’s.
Cassette
Shimano HG500 10-Speed 11-32T.
Crank
FSA Omega MegaExo, 19mm, 50-34T.
Bottom Bracket
FSA MegaExo BB86.
Chain
Shimano HG54 10-Speed.
Pedals
Plastic Flat Platform, Black.
Wheels
Front Hub
MAHLE SmartBike Systems X35+ M1, 36V/250W.
Rear Hub
MAHLE SmartBike Systems X35+ M1, 36V/250W.
Rims
Mavic Ksyrium S Disc UST, 12x100F/12x142 Bolt-On Rear.
Tires
Schwalbe G-One, Tubeless-Ready, 700x40mm, Black/Tan.
Brakes
Brakes
Tektro MD510 Mechanical Disc.
Disk Rotors
Shimano RT-66 6-Bolt 160mm.
Cockpit
Stem
LEVEL 2 3D-Forged 6061 Alloy, Black.
Handlebar
LEVEL 1 6061 Alloy, Black.
Headset
LEVEL H56 Integrated, Black.
Seat
Saddle
Selle Royal Vivo Ergo Sport, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm, 350mm.
Motor & Battery
Battery
Panasonic 36V/250Wh, 18650GA-10S/2P.
Charger
Supplied with a US or UK Power cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | MD/LG |
|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.53 mm |
| Bottom Bracket Height | 280 mm | 280 mm |
| Front Center | 596 mm | 627 mm |
| Rake | 51 mm | 50 mm |
| Trail | 69 mm | 71 mm |
| Stack | 549 mm | 578 mm |
| Reach | 357 mm | 379 mm |
| Top Tube Length | 512 mm | 542 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 460 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 170 mm |
| Chainstay Length | 427 mm | 427 mm |
| Wheelbase | 1013 mm | 1045 mm |
| Bottom Bracket Drop | 69 mm | 69 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 155 cm | 167 cm |
| Rider Max Height | 169 cm | 180 cm |
About this model
CGR AL e Step Through – Sport, Shimano Tiagra is part of the Ribble E Cgr model. Ribble released 33 e-bikes variations of this model so far. You can easily view all of the Ribble E Cgr e-bikes models from 2022, here.
Model range prices
The most economical model, the Ribble CGR AL e Step Through – Sport, Shimano Tiagra 2022 has a starting price of 2494$. Ribble CGR AL e – Pro, Shimano Ultegra 2022 on the other hand is the most expensive at 4135$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel e-bikes average price
According to our math, the average price for a trustworthy Gravel e-bike is 3642$. However, even though the average price of a Gravel e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2494$. Comparing this to the average Gravel e-bike price, we see that the price is 46.03% smaller.
Gravel e-bikes average weight
Gravel e-bikes have an average weight of 13.58 kg (29.94 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
CGR AL e Step Through – Sport, Shimano Tiagra weighs 14.1 kg (31.09 lbs) and is slightly heavier than the average. In other words, this model is 3.83% heavier than the average Gravel e-bike.
CGR AL e Step Through – Sport, Shimano Tiagra components
Fork material
The fork on this e-bike is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on CGR AL e Step Through – Sport, Shimano Tiagra are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This e-bike is available in 2 sizes. They vary from 155 cm – 180 cm (5.09 ft – 5.91 ft). In short, you can easily find one that suits you.
