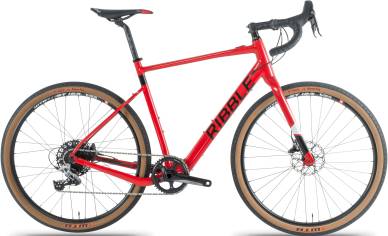

Ribble CGR AL e – SRAM Rival 1x 650B 2020
2020 E-bike
Estimate price |
3,406$
Weight | 13.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Rival 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 Heat Treated, Seamless Weld Aluminium.
Suspension Fork
Full Carbon Fibre Monocoque.
Drivetrain
Rear Derailleur
Rival 1 Long cage.
Shift Levers
Rival 1 HRD LH, Rival 22 HRD RH.
Cassette
SRAM PG-1130 11-42T.
Crank
Rival 1 GXP 42T X-Sync.
Bottom Bracket
SRAM GXP Team Press Fit
Chain
SRAM PC-1110 with Powerlock.
Wheels
Rims
Level EBM650 650b
Tires
WTB Horizon Road Plus TCS 650b x 47, Tan Wall
Brakes
Brakes
Rival HRD Hydraulic Disc.
Disk Rotors
Level 160mm.
Cockpit
Stem
Level 1 6061 Alloy, Black.
Handlebar
Level 1 6061 Alloy, Black.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
Level 1 6061 Alloy, Black.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.5 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Front Center | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 51 mm | 50 mm | 51 mm | 51 mm | 49 mm |
| Trail | 63 mm | 61 mm | 57 mm | 54 mm | 56 mm |
| Stack | 558 mm | 570 mm | 591 mm | 612 mm | 622 mm |
| Reach | 367 mm | 379 mm | 382 mm | 385 mm | 397 mm |
| Top Tube Length | 522 mm | 542 mm | 557 mm | 572 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1023 mm | 1033 mm | 1038 mm | 1043 mm | 1057 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
About this model
CGR AL e – SRAM Rival 1x 650B completes the Ribble E Cgr model. Ribble launched 33 e-bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Ribble CGR AL e – Shimano Tiagra 2020 is the most economical model, with a starting price of 2426$. Ribble CGR AL e – Shimano Ultegra 2020 on the other hand costs 3397$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel e-bikes
If you want to purchase a solid Gravel e-bike, it is important to know that the average cost is 3642$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2020 and its price was 3154$. Comparing the average cost of a Gravel e-bike to this one, you will see that CGR AL e – SRAM Rival 1x 650B price is 15.47% smaller.
Average weight for Gravel e-bikes
Gravel e-bikes weigh an average of 13.58 kg (29.94 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 13.3 kg (29.32 lbs), the CGR AL e – SRAM Rival 1x 650B model is slightly lighter than average. In other words, this model is 2.11% lighter than the average Gravel e-bike.
CGR AL e – SRAM Rival 1x 650B components
Fork material
The fork on this e-bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the CGR AL e – SRAM Rival 1x 650B model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The CGR AL e – SRAM Rival 1x 650B has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
CGR AL e – SRAM Rival 1x 650B comes in 5 sizes, that range from 162 cm – 194 cm (5.31 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
