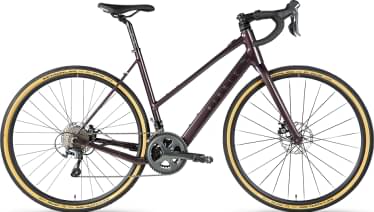

Ribble CGR AL e Step Through – Sport, Shimano Tiagra 2021
2021 E-bike
Estimate price |
3,205$
Weight | 14.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic 36V/250Wh, 18650GA-10S/2P. -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
155cm - 169cm
MD/LG
167cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Heat Treated Aluminium, Seamless Welds.
Suspension Fork
Full Carbon Monocoque, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 Medium Cage.
Front Derailleur
Shimano Tiagra 4700 Braze-On.
Shift Levers
Shimano Tiagra 4700 STI’s.
Cassette
Shimano HG500 10-Speed 11-32T.
Crank
Shimano Tiagra 4700 50-34T.
Bottom Bracket
Shimano Press Fit BB71-41B, 86.5x41.
Chain
Shimano HG54 10-Speed.
Pedals
Plastic Flat Pedals, Black.
Wheels
Front Hub
MAHLE Ebikemotion X35 M1, 36V/250W.
Rear Hub
MAHLE Ebikemotion X35 M1, 36V/250W.
Rims
Mavic Ksyrium S Disc UST, 12x100F/12x148R.
Tires
Schwalbe G-One, Tubeless-Ready, 700x40mm, Black/Tan.
Brakes
Brakes
Tektro MD510 Mechanical Disc.
Disk Rotors
Shimano RT-66 6-Bolt 160mm.
Cockpit
Stem
LEVEL 2 3D-Forged 6061 Alloy, Black.
Handlebar
LEVEL 1 6061 Alloy, Black.
Headset
LEVEL H56 Integrated, Black.
Seat
Saddle
Selle Royale Vivo Ergo, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm, 350mm, Black.
Motor & Battery
Motor
MAHLE Ebikemotion X35 M1, 36V/250W.
Battery
Panasonic 36V/250Wh, 18650GA-10S/2P.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | MD/LG |
|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.53 mm |
| Bottom Bracket Height | 280 mm | 280 mm |
| Front Center | 596 mm | 627 mm |
| Rake | 51 mm | 50 mm |
| Trail | 69 mm | 71 mm |
| Stack | 549 mm | 578 mm |
| Reach | 357 mm | 379 mm |
| Top Tube Length | 512 mm | 542 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 460 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 170 mm |
| Chainstay Length | 427 mm | 427 mm |
| Wheelbase | 1013 mm | 1045 mm |
| Bottom Bracket Drop | 69 mm | 69 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 155 cm | 167 cm |
| Rider Max Height | 169 cm | 180 cm |
Model Overview
CGR AL e Step Through – Sport, Shimano Tiagra belongs to the Ribble E Cgr model. Ribble released 33 e-bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Ribble CGR AL e – Shimano Tiagra 2021 has a starting price of 2967$. Ribble CGR AL e – Shimano Ultegra 2021 on the other hand is the most expensive at 3709$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel e-bikes
According to our math, the average price for a trustworthy Gravel e-bike is 3642$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2021 for 2967$. In conclusion, this e-bike price is 22.75% smaller than the price of the average Gravel e-bike.
Average weight for Gravel e-bikes
Gravel e-bikes weigh an average of 13.58 kg (29.94 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 14.1 kg (31.09 lbs), the CGR AL e Step Through – Sport, Shimano Tiagra model is slightly heavier than average. To sum up, it’s 3.83% heavier than the average weight of Gravel e-bikes.
Overview of components
Fork material
The fork on this e-bike is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on CGR AL e Step Through – Sport, Shimano Tiagra are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CGR AL e Step Through – Sport, Shimano Tiagra comes with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
CGR AL e Step Through – Sport, Shimano Tiagra comes in 2 sizes, that range from 155 cm – 180 cm (5.09 ft – 5.91 ft). In short, you can easily find one that suits you.
