Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
152cm - 163cm
XS
161cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Alloy, Heat-Treated, Seamless Welds.
Suspension Fork
CGR Carbon Disc, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano GRX RX812.
Shift Levers
Shimano GRX RX600.
Cassette
Shimano SLX M7000 11-42T.
Crank
Shimano GRX RX600 40T.
Bottom Bracket
Shimano BB-R60 BSA 68mm.
Chain
KMC X11 with MissingLink.
Wheels
Rims
Mavic Aksium Disc, 12x100mm/12x142mm.
Tires
Schwalbe G-One, Tubeless-Ready 700x40c, Tan Wall.
Brakes
Brakes
Shimano GRX RX400 Hydraulic Disc.
Disk Rotors
Shimano RT70 Centrelock 160mm.
Cockpit
Stem
LEVEL 2 6061 Alloy, Black.
Handlebar
LEVEL 2 6061 Alloy, Black.
Headset
LEVEL 52, 42-52mm, Tapered, Black.
Seat
Saddle
Prologo Kappa RS, Black/Sky Blue/Black.
Seatpost
LEVEL 1 6061 Alloy 27.2mm, 350mm,Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.51 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 580 mm | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 46 mm | 51 mm | 42 mm | 51 mm | 51 mm | 49 mm |
| Trail | 78 mm | 69 mm | 76 mm | 63 mm | 60 mm | 62 mm |
| Stack | 537 mm | 555 mm | 567 mm | 588 mm | 609 mm | 619 mm |
| Reach | 355 mm | 364 mm | 376 mm | 379 mm | 382 mm | 394 mm |
| Top Tube Length | 499 mm | 519 mm | 539 mm | 554 mm | 569 mm | 589 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1004 mm | 1020 mm | 1022 mm | 1035 mm | 1040 mm | 1054 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 161 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 163 cm | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
Model Overview

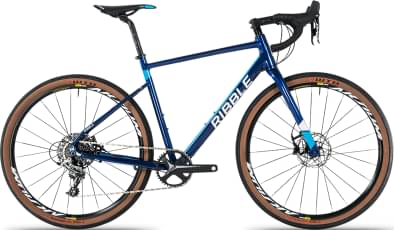

CGR AL, Gravel Build completes the Ribble Cgr model. Ribble launched 130 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Ribble CGR AL – Sport, Shimano Tiagra 2021 is the cheapest bike model and costs 1235$. Ribble CGR Ti – Hero, SRAM AXS 2021 is the most expensive one and costs 9894$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Ribble CGR AL, Gravel Build price was 1977$. Doing a quick comparison, we notice that CGR AL, Gravel Build price is 24.53% smaller than the average cost of a Gravel bike.
Overview of components
Fork material
CGR AL, Gravel Build has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Ribble CGR AL, Gravel Build 2021, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
CGR AL, Gravel Build comes in 6 sizes, that range from 152 cm – 194 cm (4.99 ft – 6.36 ft). In short, you can easily find one that suits you.
