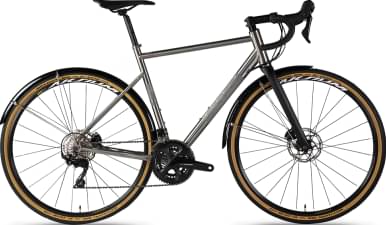

Ribble CGR Ti – Sport, Shimano 105 2021
2021 Road
Estimate price |
3,072$
Weight | 10.65 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 650b / 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
XS
162cm - 171cm
SM
169cm - 176cm
SM
169cm - 176cm
MD
174cm - 181cm
MD
174cm - 181cm
LG
179cm - 186cm
LG
179cm - 186cm
XL
184cm - 194cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3AL/2.5V Titanium, Double-Butted, Seamless Weld.
Suspension Fork
CGR Ti Disc, Carbon Monocoque, Tapered.
Drivetrain
Rear Derailleur
Shimano 105 R7000 Medium Cage.
Front Derailleur
Shimano 105 R7000 Braze-On.
Shift Levers
Shimano 105 R7020 11-Speed Hydraulic.
Cassette
Shimano 105 R7000 11-28T.
Crank
Shimano 105 R7000 50-34T.
Bottom Bracket
Shimano BB-R60 Threaded BSA .
Chain
Shimano HG601 11-Speed.
Wheels
Rims
Mavic Aksium Disc,12x100F/12x142R Thru-Axles.
Tires
Schwalbe G-One Tubeless-Ready, 700x40c, Tan Wall.
Brakes
Brakes
Shimano 105 R7070 Flat Mount Hydraulic Disc.
Disk Rotors
Tektro Centrelock 160mm.
Cockpit
Stem
LEVEL 1 6061 Alloy, Black.
Handlebar
LEVEL 1 6061 Alloy, Black.
Headset
LEVEL 44, a choice of anodised colours available in BikeBuilder.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
LEVEL 2 UD Carbon, 27.2mm, 350mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.49 mm | 1.52 mm | 1.52 mm | 1.56 mm | 1.56 mm | 1.59 mm | 1.59 mm | 1.6 mm | 1.6 mm |
| Stack | 547 mm | 547 mm | 559 mm | 559 mm | 580 mm | 580 mm | 597 mm | 597 mm | 616 mm | 616 mm |
| Reach | 366 mm | 366 mm | 368 mm | 368 mm | 371 mm | 371 mm | 375 mm | 375 mm | 386 mm | 386 mm |
| Top Tube Length | 521 mm | 521 mm | 536 mm | 536 mm | 546 mm | 546 mm | 561 mm | 561 mm | 581 mm | 581 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 510 mm | 510 mm | 530 mm | 530 mm | 555 mm | 555 mm | 580 mm | 580 mm | 600 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 150 mm | 170 mm | 170 mm | 190 mm | 190 mm | 210 mm | 210 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1017 mm | 1017 mm | 1017 mm | 1017 mm | 1022 mm | 1022 mm | 1033 mm | 1033 mm | 1044 mm | 1044 mm |
| Wheels | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 |
| Rider Min Height | 162 cm | 162 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 184 cm | 184 cm |
| Rider Max Height | 171 cm | 171 cm | 176 cm | 176 cm | 181 cm | 181 cm | 186 cm | 186 cm | 194 cm | 194 cm |
About this model
CGR Ti – Sport, Shimano 105 is part of the Ribble Cgr model. Ribble launched 130 bikes of this model so far. Take a sneak peek at all Ribble Cgr bikes models from 2021, by clicking here.
Model range prices
Ribble CGR AL – Sport, Shimano Tiagra 2021 is the most affordable bike of this model and has a price of 1235$. On the other hand, Ribble CGR Ti – Hero, SRAM AXS 2021, is the most expensive and costs 9894$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Ribble released this model in 2021, its price was 2843$. Comparing the average cost of a Gravel bike to this one, you will see that CGR Ti – Sport, Shimano 105 price is 15.48% higher.
Average weight for Gravel bikes
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
CGR Ti – Sport, Shimano 105 weighs 10.65 kg (23.48 lbs) and is much heavier than the average. To sum up, it’s 31% heavier than the average weight of Gravel bikes.
CGR Ti – Sport, Shimano 105 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The CGR Ti – Sport, Shimano 105 2021 bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Ribble CGR Ti – Sport, Shimano 105 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 10 sizes available for this model. Rider height can be anywhere between 162 cm – 194 cm (5.31 ft – 6.36 ft). In short, you can easily find one that suits you.
