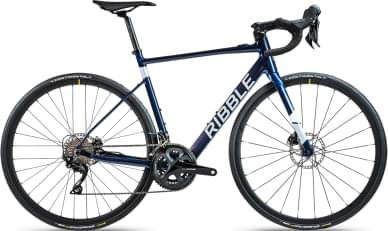

Ribble Endurance AL e – Enthusiast, Shimano 105 2022
2022 E-bike
Estimate price |
2,694$
Weight | 13 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic 36V/250Wh 18650GA-10S/2P. -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 166cm
SM
164cm - 171cm
MD
169cm - 179cm
LG
177cm - 186cm
XL
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Suspension Fork
Endurance AL e, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano 105 R7000 Medium Cage .
Front Derailleur
Shimano 105 R7000 Braze-On.
Shift Levers
Shimano 105 R7020 11-Speed Hydraulic.
Cassette
Shimano 105 R7000 11-Speed 11-32T.
Crank
Shimano 105 R7000, 2x11 Speed, 50-34T.
Bottom Bracket
Shimano Press Fit BB72-41B, 86.5x41.
Chain
Shimano 105 HG601 11-Speed Super Narrow.
Wheels
Rims
Mavic Ksyrium S 25 Disc, 12x100F/12x142 Bolt-On Rear.
Tires
Continental Grand Prix, 700x28c, Black.
Brakes
Brakes
Shimano 105 BR-R7070 Flat Mount Hydraulic.
Disk Rotors
Shimano RT66 6-Bolt 160mm.
Cockpit
Stem
LEVEL 2 6061 Alloy, Black, 31.8mm.
Handlebar
LEVEL 2 6061 Alloy, Black, 31.8mm.
Headset
LEVEL 56 Semi-Integrated, Black.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
LEVEL 2 Carbon/Alloy, 27.2mm.
Motor & Battery
Motor
MAHLE SmartBike Systems X35+ 250W.
Battery
Panasonic 36V/250Wh 18650GA-10S/2P.
Charger
Supplied with UK or US Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.37 mm | 1.41 mm | 1.44 mm | 1.47 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 591 mm | 585 mm | 591 mm | 598 mm | 607 mm |
| Rake | 59 mm | 49 mm | 45 mm | 45 mm | 44 mm |
| Trail | 54 mm | 59 mm | 60 mm | 57 mm | 56 mm |
| Stack | 507 mm | 529 mm | 550 mm | 570 mm | 591 mm |
| Reach | 381 mm | 387 mm | 390 mm | 396 mm | 402 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 572 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.6 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 998 mm | 992 mm | 993 mm | 1000 mm | 1009 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 164 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 166 cm | 171 cm | 179 cm | 186 cm | 191 cm |
Model Overview
Endurance AL e – Enthusiast, Shimano 105 is a Ribble E Endurance model. Ribble released 39 e-bikes variations of this model so far. You can easily view all of the Ribble E Endurance e-bikes models from 2022, here.
Model range prices
Ribble Endurance AL e – Sport, Shimano Tiagra Hydraulic 2022 is the most economical model, with a starting price of 2286$. Ribble Endurance SL e – Hero, Shimano Dura Ace Di2 2022 on the other hand costs 9000$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance e-bikes
If you want to purchase a solid Endurance e-bike, it is important to know that the average cost is 3800$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Ribble released this model in 2022, its price was 2494$. If we compare this with the average Endurance e-bike cost we notice that the price is 52.37% smaller.
Average weight for Endurance e-bikes
On a deeper look, we notice that the average weight of an Endurance e-bike is 13.52 kg (29.81 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 13 kg (28.66 lbs), the Endurance AL e – Enthusiast, Shimano 105 model is slightly lighter than average. In short, the average Endurance e-bike weight is 4% higher than this one.
Endurance AL e – Enthusiast, Shimano 105 components
Fork material
Endurance AL e – Enthusiast, Shimano 105 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Endurance AL e – Enthusiast, Shimano 105 e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 5 sizes. They vary from 158 cm – 191 cm (5.18 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
