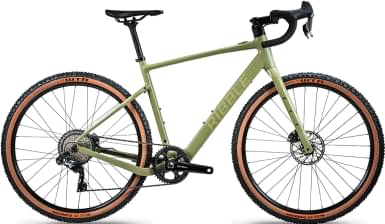

Ribble Gravel AL e – Hero, Shimano GRX Di2 2022
2022 E-bike
Estimate price |
5,486$
Weight | 13.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 800, GRX Di2 -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic I250 36V/250Wh 18650GA-10S/2P. -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
152cm - 163cm
XS
161cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Welds .
Suspension Fork
Carbon Monocoque, Tapered Steerer, Carryall Mounts.
Drivetrain
Rear Derailleur
Shimano GRX RX817 Shadow RD+.
Shift Levers
Shimano GRX Di2 RX815 11-Speed Hydraulic.
Cassette
Shimano XT M8000 11-Speed 11-42T.
Crank
Shimano GRX RX810, 1x11 Speed, 40T.
Bottom Bracket
Shimano Press Fit BB71-41B, 86.5x41.
Chain
KMC X11 11-Speed with MissingLink.
Wheels
Rims
Mavic Allroad 650b DCL, 12x100F/12x142R.
Tires
Halo GXC Gravel, 650bx47mm, Tan Wall.
Brakes
Brakes
Shimano GRX RX810 Flat Mount Hydraulic.
Disk Rotors
Shimano RT66 6-Bolt 160mm.
Cockpit
Handlebar
LEVEL 3 Carbon-Wrapped Alloy, Titanium Bolts.
Headset
LEVEL 56, Semi-Integrated, Black.
Seat
Saddle
Fizik Taiga, S-Alloy Rails, Black.
Seatpost
LEVEL 3 Inline Carbon Monocoque, 27.2mm.
Motor & Battery
Motor
MAHLE SmartBike Systems X35+ 250W.
Battery
Panasonic I250 36V/250Wh 18650GA-10S/2P.
Charger
Supplied with UK Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.43 mm | 1.45 mm | 1.46 mm | 1.48 mm | 1.51 mm |
| Stack | 531 mm | 552 mm | 571 mm | 590 mm | 609 mm | 631 mm |
| Reach | 378 mm | 387 mm | 394 mm | 403 mm | 412 mm | 418 mm |
| Top Tube Length | 514 mm | 528 mm | 556 mm | 576 mm | 591 mm | 608 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 74 ° | 73.5 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 90 mm | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1026 mm | 1022 mm | 1043 mm | 1058 mm | 1074 mm | 1081 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 152 cm | 161 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 163 cm | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
Model Overview
Gravel AL e – Hero, Shimano GRX Di2 belongs to the Ribble E Gravel model. Ribble launched 4 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Ribble Gravel AL e – Sport, Shimano GRX RX400 2022 is the most economical model, with a starting price of 3283$. Ribble Gravel AL e – Hero, Shimano GRX Di2 2022 on the other hand costs 4986$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel e-bikes average price
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, even though the average price of a Gravel e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 4986$. In conclusion, this e-bike price is 36.9% more expensive than the price of the average Gravel e-bike.
Gravel e-bikes average weight
The average weight for Gravel e-bikes is 13.58 kg (29.94 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly lighter than average, Gravel AL e – Hero, Shimano GRX Di2 has a weight of 13.5 kg (29.76 lbs). In conclusion, the average Gravel e-bike weighs 0.59% more than Gravel AL e – Hero, Shimano GRX Di2.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Gravel AL e – Hero, Shimano GRX Di2 2022 e-bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Ribble Gravel AL e – Hero, Shimano GRX Di2 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Gravel AL e – Hero, Shimano GRX Di2 comes in 6 sizes, that range from 152 cm – 194 cm (4.99 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
