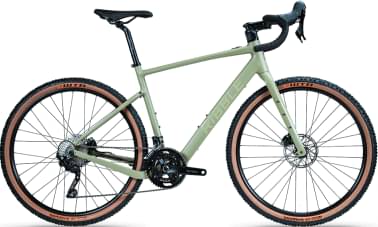

Ribble Gravel AL e – Sport, Shimano GRX RX400 2022
2022 E-bike
Estimate price |
3,612$
Weight | 14 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 400, GRX 600 -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic I250 36V/250Wh 18650GA-10S/2P. -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
152cm - 163cm
XS
161cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium. Heat-Treated, Seamless Welds.
Suspension Fork
Carbon Monocoque, Tapered Steerer, Carryall Mounts.
Drivetrain
Rear Derailleur
Shimano GRX RX400 Shadow RD+.
Shift Levers
Shimano GRX RX400 10-Speed Hydraulic.
Cassette
Shimano GRX HG500 10-Speed 11-34T.
Crank
Shimano GRX RX600, 2x10 Speed, 46-30T.
Bottom Bracket
Shimano Press Fit BB71-41B, 86.5x41.
Chain
Shimano Deore HG54 10-Speed Super Narrow.
Wheels
Rims
Mavic Allroad 650b DCL, 12x100F/12x142R.
Tires
Halo GXC Gravel, 650bx47mm, Tan Wall.
Brakes
Brakes
Shimano GRX Flat Mount Hydraulic Disc.
Disk Rotors
Shimano RT66 6-Bolt 160mm.
Cockpit
Stem
LEVEL 2 3D-Forged Alloy, Black, 31.8mm.
Handlebar
LEVEL Gravel Riser Flared Alloy, 420/510mm.
Headset
LEVEL 56, Semi-Integrated, Black.
Seat
Saddle
Selle Italia X3 Boost, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm, 350mm.
Motor & Battery
Motor
MAHLE SmartBike Systems X35+ 250W.
Battery
Panasonic I250 36V/250Wh 18650GA-10S/2P.
Charger
Supplied with UK Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.43 mm | 1.45 mm | 1.46 mm | 1.48 mm | 1.51 mm |
| Stack | 531 mm | 552 mm | 571 mm | 590 mm | 609 mm | 631 mm |
| Reach | 378 mm | 387 mm | 394 mm | 403 mm | 412 mm | 418 mm |
| Top Tube Length | 514 mm | 528 mm | 556 mm | 576 mm | 591 mm | 608 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 74 ° | 73.5 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 90 mm | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1026 mm | 1022 mm | 1043 mm | 1058 mm | 1074 mm | 1081 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 152 cm | 161 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 163 cm | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
About this model
Gravel AL e – Sport, Shimano GRX RX400 completes the Ribble E Gravel model. Ribble released 4 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Ribble Gravel AL e – Sport, Shimano GRX RX400 2022 is the most affordable e-bike of this model and has a price of 3283$. On the other hand, Ribble Gravel AL e – Hero, Shimano GRX Di2 2022, is the most expensive and costs 4986$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel e-bikes average price
According to our math, the average price for a trustworthy Gravel e-bike is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Ribble Gravel AL e – Sport, Shimano GRX RX400 price was 3283$. Comparing the average cost of a Gravel e-bike to this one, you will see that Gravel AL e – Sport, Shimano GRX RX400 price is 10.94% lower.
Average weight for Gravel e-bikes
On a deeper look, we notice that the average weight of a Gravel e-bike is 13.58 kg (29.94 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly heavier than average, Gravel AL e – Sport, Shimano GRX RX400 has a weight of 14 kg (30.86 lbs). To sum up, it’s 3.09% heavier than the average weight of Gravel e-bikes.
Gravel AL e – Sport, Shimano GRX RX400 components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
As for the wheels, Ribble Gravel AL e – Sport, Shimano GRX RX400 2022, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Ribble Gravel AL e – Sport, Shimano GRX RX400 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 6 sizes. They vary from 152 cm – 194 cm (4.99 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
