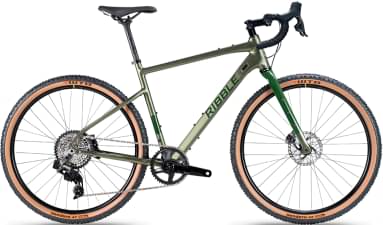

Ribble Gravel AL – Pro, SRAM Rival AXS XPLR 2022
2022 Road
Estimate price |
3,030$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Rival XPLR eTap, Rival 1 -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
152cm - 163cm
XS
161cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Suspension Fork
Carbon Monocoque, Tapered Steerer, Carryall Mounts.
Drivetrain
Rear Derailleur
SRAM Rival XPLR eTap AXS Max 44T.
Shift Levers
SRAM Rival 1 HRD 12-Speed Hydraulic.
Cassette
SRAM XG-1251 XPLR 12-Speed 10-44T.
Crank
SRAM Rival DUB D1, 1x12 Speed, 40T.
Bottom Bracket
SRAM DUB Threaded BSA.
Chain
SRAM Rival D1 12-Speed with Powerlock.
Wheels
Rims
Mavic Allroad 650b, 12x100F/12x142R Thru-Axles.
Tires
Halo GXC Gravel, 650bx47mm, Tan Wall.
Brakes
Brakes
SRAM Rival HRD Hydraulic Disc.
Disk Rotors
SRAM Centreline XR Centre Lock 160mm.
Cockpit
Stem
LEVEL 1 6061 Alloy, Black, 31.8mm.
Handlebar
LEVEL Gravel Riser Flared Alloy, 420/510mm.
Headset
LEVEL 44, Black (Also available in a choice of colours in BikeBuilder).
Seat
Saddle
Fizik Taiga S-Alloy, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.43 mm | 1.45 mm | 1.46 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 282 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 595 mm | 606 mm | 611 mm | 626 mm | 637 mm | 649 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 72 mm | 64 mm | 65 mm | 61 mm | 62 mm |
| Stack | 531 mm | 552 mm | 571 mm | 590 mm | 608 mm | 631 mm |
| Reach | 378.2 mm | 387 mm | 394 mm | 403.2 mm | 412 mm | 418 mm |
| Top Tube Length | 514 mm | 528 mm | 556 mm | 576 mm | 594 mm | 609 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 74 ° | 73.5 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 90 mm | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1031 mm | 1042 mm | 1048 mm | 1063 mm | 1074 mm | 1087 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 67 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 161 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 163 cm | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
Model Overview
Gravel AL – Pro, SRAM Rival AXS XPLR belongs to the Ribble Gravel model. Ribble launched 22 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Ribble Gravel AL – Sport, SRAM Apex 1x 2022 is the most affordable bike of this model and has a price of 1662$. On the other hand, Ribble Gravel Ti – Hero, SRAM Force XPLR eTap AXS 2022, is the most expensive and costs 5925$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Ribble released this model in 2022, its price was 2805$. Doing a quick comparison, we notice that Gravel AL – Pro, SRAM Rival AXS XPLR price is 13.93% more expensive than the average cost of a Gravel bike.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Gravel AL – Pro, SRAM Rival AXS XPLR 2022 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Gravel AL – Pro, SRAM Rival AXS XPLR comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 6 sizes. They vary from 152 cm – 194 cm (4.99 ft – 6.36 ft). In short, you can easily find one that suits you.
