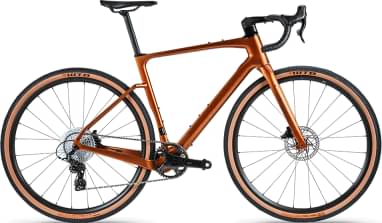

Ribble Gravel SL – Ekar, Campagnolo Ekar 2022
2022 Road
Estimate price |
4,603$
Weight | 8.75 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
XS
162cm - 171cm
SM
169cm - 176cm
SM
169cm - 176cm
MD
174cm - 181cm
MD
174cm - 181cm
LG
179cm - 186cm
LG
179cm - 186cm
XL
184cm - 194cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Toray T1000/T800 Carbon Fibre Monocoque.
Suspension Fork
Full Carbon Monocoque, Tapered, Carryall Mounts.
Drivetrain
Rear Derailleur
Campagnolo EKAR 1x13 Speed.
Shift Levers
Campagnolo EKAR AFS Ergopower Ultrashift.
Cassette
Campagnolo EKAR 13-Speed 10-44T.
Crank
Campagnolo EKAR 1x13 Speed, 40T.
Bottom Bracket
Campagnolo EKAR Pro-Tech BSA.
Chain
Campagnolo EKAR C13 with C-Link.
Wheels
Rims
Miche Graff SP N3W Disc, 12x100F/12x142R, Black.
Tires
WTB Riddler TCS Light/Fast, 700x45mm, Tan Wall.
Brakes
Brakes
Campagnolo EKAR AFS Flat Mount Hydraulic.
Disk Rotors
Campagnolo EKAR AFS Centre Lock 160mm.
Cockpit
Handlebar
LEVEL 5 Carbon Integrated Flared Gravel, 420mm/500mm.
Headset
Ribble SL/SL R, 1.5"x1.5", Black.
Seat
Saddle
Fizik Taiga S-Alloy, Black.
Seatpost
Ribble SL Carbon with 5mm Offset.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.46 mm | 1.47 mm | 1.47 mm | 1.49 mm | 1.49 mm | 1.53 mm | 1.53 mm | 1.55 mm | 1.55 mm |
| Front Center | 593 mm | 593 mm | 599 mm | 599 mm | 600.7 mm | 600.7 mm | 615.5 mm | 615.5 mm | 616 mm | 616 mm |
| Rake | 50 mm | 50 mm | 52 mm | 52 mm | 49 mm | 49 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 71 mm | 59 mm | 65 mm | 59 mm | 65 mm | 55 mm | 61 mm | 55 mm | 61 mm |
| Stack | 529 mm | 529 mm | 540.5 mm | 540.5 mm | 553 mm | 553 mm | 584 mm | 584 mm | 602.7 mm | 602.7 mm |
| Reach | 363 mm | 363 mm | 367 mm | 367 mm | 371 mm | 371 mm | 381 mm | 381 mm | 388 mm | 388 mm |
| Top Tube Length | 512 mm | 512 mm | 532 mm | 532 mm | 547 mm | 547 mm | 562 mm | 562 mm | 582 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 460 mm | 480 mm | 480 mm | 500 mm | 500 mm | 520 mm | 520 mm | 540 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 140 mm | 155 mm | 155 mm | 180 mm | 180 mm | 200 mm | 200 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1011 mm | 1011 mm | 1017 mm | 1017 mm | 1017 mm | 1017 mm | 1033 mm | 1033 mm | 1046 mm | 1046 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 |
| Rider Min Height | 162 cm | 162 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 184 cm | 184 cm |
| Rider Max Height | 171 cm | 171 cm | 176 cm | 176 cm | 181 cm | 181 cm | 186 cm | 186 cm | 194 cm | 194 cm |
About this model
Gravel SL – Ekar, Campagnolo Ekar belongs to the Ribble Gravel model. 22 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Ribble Gravel AL – Sport, SRAM Apex 1x 2022 is the most economical model, with a starting price of 1662$. Ribble Gravel Ti – Hero, SRAM Force XPLR eTap AXS 2022 on the other hand costs 5925$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Ribble released this model in 2022, its price was 4261$. Doing a quick comparison, we notice that Gravel SL – Ekar, Campagnolo Ekar price is 73.07% higher than the average cost of a Gravel bike.
Gravel bikes average weight
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Gravel SL – Ekar, Campagnolo Ekar weighs 8.75 kg (19.29 lbs) and is a bit heavier than the average. In conclusion, the average Gravel bike weighs 7.63% less than Gravel SL – Ekar, Campagnolo Ekar.
Gravel SL – Ekar, Campagnolo Ekar components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the Gravel SL – Ekar, Campagnolo Ekar model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Ribble Gravel SL – Ekar, Campagnolo Ekar bike has 10 sizes, in the range of 162 cm – 194 cm (5.31 ft – 6.36 ft). In short, you can easily find one that suits you.
