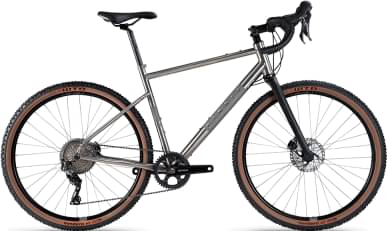

Ribble Gravel Ti – Enthusiast, Shimano GRX RX810 2022
2022 Road
Estimate price |
4,147$
Weight | 10.32 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
152cm - 163cm
XXS
152cm - 163cm
XS
161cm - 171cm
XS
161cm - 171cm
SM
169cm - 176cm
SM
169cm - 176cm
MD
174cm - 181cm
MD
174cm - 181cm
LG
179cm - 186cm
LG
179cm - 186cm
XL
184cm - 194cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3Al/2.5V Titanium, Triple-Butted, Seamless Welds.
Suspension Fork
Gravel Ti, Full Carbon, Tapered Steerer, Carryall Mounts.
Drivetrain
Rear Derailleur
Shimano GRX RX812 Shadow RD+.
Shift Levers
Shimano GRX RX810 11-Speed Hydraulic.
Cassette
Shimano XT M8000 11-Speed 11-42T.
Crank
Shimano GRX RX810, 1x11 Speed, 40T.
Bottom Bracket
Shimano BB-R60 Threaded BSA.
Chain
KMC X11 11-Speed with MissingLink, Grey.
Wheels
Rims
Mavic Allroad Disc 650b, 12x100F/12x142R.
Tires
Halo GXC Gravel, 650bx47mm, Tan Wall.
Brakes
Brakes
Shimano GRX RX810 Flat Mount Hydraulic.
Disk Rotors
Shimano RT800 Centre Lock 160mm.
Cockpit
Stem
LEVEL 2 3D-Forged 6061 Alloy, Black.
Handlebar
LEVEL Gravel Riser Flared, 420/510mm.
Headset
LEVEL 44, (Available in a choice of colours in BikeBuilder).
Seat
Saddle
Selle Italia X3 Boost, Black.
Seatpost
LEVEL 2 Carbon/Alloy, 27.2mm, 350mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XXS | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.43 mm | 1.43 mm | 1.45 mm | 1.45 mm | 1.46 mm | 1.46 mm | 1.48 mm | 1.48 mm | 1.51 mm | 1.51 mm |
| Front Center | 595 mm | 595 mm | 591 mm | 591 mm | 611 mm | 611 mm | 625 mm | 625 mm | 641 mm | 641 mm | 648 mm | 648 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 74 mm | 80 mm | 86 mm | 58 mm | 64 mm | 59 mm | 65 mm | 50 mm | 57 mm | 57 mm | 63 mm |
| Stack | 531 mm | 531 mm | 552 mm | 552 mm | 571 mm | 571 mm | 590 mm | 590 mm | 609 mm | 609 mm | 631 mm | 631 mm |
| Reach | 378 mm | 378 mm | 387 mm | 387 mm | 394 mm | 394 mm | 403 mm | 403 mm | 412 mm | 412 mm | 418 mm | 418 mm |
| Top Tube Length | 514 mm | 514 mm | 528 mm | 528 mm | 556 mm | 556 mm | 576 mm | 576 mm | 591 mm | 591 mm | 608 mm | 608 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.3 ° | 73.3 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 440 mm | 460 mm | 460 mm | 480 mm | 480 mm | 500 mm | 500 mm | 520 mm | 520 mm | 540 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 90 mm | 90 mm | 110 mm | 110 mm | 130 mm | 130 mm | 150 mm | 150 mm | 170 mm | 170 mm | 190 mm | 190 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1026 mm | 1026 mm | 1022 mm | 1022 mm | 1043 mm | 1043 mm | 1058 mm | 1058 mm | 1074 mm | 1074 mm | 1081 mm | 1081 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 67 mm | 67 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 |
| Rider Min Height | 152 cm | 152 cm | 161 cm | 161 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 184 cm | 184 cm |
| Rider Max Height | 163 cm | 163 cm | 171 cm | 171 cm | 176 cm | 176 cm | 181 cm | 181 cm | 186 cm | 186 cm | 194 cm | 194 cm |
About this model
Gravel Ti – Enthusiast, Shimano GRX RX810 is part of the Ribble Gravel model. 22 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Ribble Gravel AL – Sport, SRAM Apex 1x 2022 has a starting price of 1662$. Ribble Gravel Ti – Hero, SRAM Force XPLR eTap AXS 2022 on the other hand is the most expensive at 5925$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 3770$. Comparing the average cost of a Gravel bike to this one, you will see that Gravel Ti – Enthusiast, Shimano GRX RX810 price is 53.13% higher.
Average weight for Gravel bikes
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Ribble Gravel Ti – Enthusiast, Shimano GRX RX810 it’s weighing 10.32 kg (22.75 lbs). At this weight, is much heavier than average. In other words, this model is 26.94% heavier than the average Gravel bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Gravel Ti – Enthusiast, Shimano GRX RX810 bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Gravel Ti – Enthusiast, Shimano GRX RX810 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 12 sizes. They vary from 152 cm – 194 cm (4.99 ft – 6.36 ft). In short, you can easily find one that suits you.
