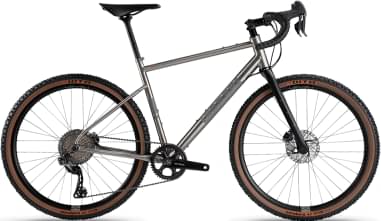

Ribble Gravel Ti – Pro, Shimano GRX Di2 2022
2022 Road
Estimate price |
5,619$
Weight | 9.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset GRX Di2, GRX 800 -
Suspension Rigid -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
152cm - 163cm
XXS
152cm - 163cm
XS
161cm - 171cm
XS
161cm - 171cm
SM
169cm - 176cm
SM
169cm - 176cm
MD
174cm - 181cm
MD
174cm - 181cm
LG
179cm - 186cm
LG
179cm - 186cm
XL
184cm - 194cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3AL/2.5V Titanium, Triple Butted, Seamless Welds.
Suspension Fork
Gravel Ti, Full Carbon, Tapered Steerer, Carryall Mounts.
Drivetrain
Rear Derailleur
Shimano GRX Di2 RX817 Shadow RD+.
Shift Levers
Shimano GRX Di2 RX815 11-Speed Hydraulic.
Cassette
Shimano XT M8000, 11-Speed, 11-42T.
Crank
Shimano GRX RX810, 1x11 Speed, 40T.
Bottom Bracket
Shimano BB-R60 Threaded BSA.
Chain
KMC X11 11-Speed with MissingLink, Grey.
Wheels
Rims
LEVEL Carbon Sport DB 650b, 12x100F/12x142R.
Tires
Halo GXC Gravel 650bx47mm, Tan Wall.
Brakes
Brakes
Shimano GRX RX810 Flat Mount Hydraulic.
Disk Rotors
Shimano RT800 Centre Lock 160mm.
Cockpit
Stem
LEVEL 2, 3D-Forged 6061 Alloy, Black.
Handlebar
LEVEL Gravel Riser Flared, 420/510mm.
Headset
LEVEL 44, 44mm External, (Available in a choice of colours in BikeBuilder).
Seat
Saddle
Brooks Cambium C15 All-Weather, Black.
Seatpost
LEVEL 3 Inline Carbon Monocoque, 27.2mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XXS | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.43 mm | 1.43 mm | 1.45 mm | 1.45 mm | 1.46 mm | 1.46 mm | 1.48 mm | 1.48 mm | 1.51 mm | 1.51 mm |
| Front Center | 595 mm | 595 mm | 591 mm | 591 mm | 611 mm | 611 mm | 625 mm | 625 mm | 641 mm | 641 mm | 648 mm | 648 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 74 mm | 80 mm | 86 mm | 58 mm | 64 mm | 59 mm | 65 mm | 50 mm | 57 mm | 57 mm | 63 mm |
| Stack | 531 mm | 531 mm | 552 mm | 552 mm | 571 mm | 571 mm | 590 mm | 590 mm | 609 mm | 609 mm | 631 mm | 631 mm |
| Reach | 378 mm | 378 mm | 387 mm | 387 mm | 394 mm | 394 mm | 403 mm | 403 mm | 412 mm | 412 mm | 418 mm | 418 mm |
| Top Tube Length | 514 mm | 514 mm | 528 mm | 528 mm | 556 mm | 556 mm | 576 mm | 576 mm | 591 mm | 591 mm | 608 mm | 608 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.3 ° | 73.3 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 440 mm | 460 mm | 460 mm | 480 mm | 480 mm | 500 mm | 500 mm | 520 mm | 520 mm | 540 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 90 mm | 90 mm | 110 mm | 110 mm | 130 mm | 130 mm | 150 mm | 150 mm | 170 mm | 170 mm | 190 mm | 190 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1026 mm | 1026 mm | 1022 mm | 1022 mm | 1043 mm | 1043 mm | 1058 mm | 1058 mm | 1074 mm | 1074 mm | 1081 mm | 1081 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 67 mm | 67 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 |
| Rider Min Height | 152 cm | 152 cm | 161 cm | 161 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 184 cm | 184 cm |
| Rider Max Height | 163 cm | 163 cm | 171 cm | 171 cm | 176 cm | 176 cm | 181 cm | 181 cm | 186 cm | 186 cm | 194 cm | 194 cm |
About this model
Gravel Ti – Pro, Shimano GRX Di2 completes the Ribble Gravel model. Ribble launched 22 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Ribble Gravel AL – Sport, SRAM Apex 1x 2022 is the most affordable bike of this model and has a price of 1662$. On the other hand, Ribble Gravel Ti – Hero, SRAM Force XPLR eTap AXS 2022, is the most expensive and costs 5925$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 5108$. Comparing the average cost of a Gravel bike to this one, you will see that Gravel Ti – Pro, Shimano GRX Di2 price is 107.47% higher.
Gravel bikes average weight
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 9.9 kg (21.83 lbs), the Gravel Ti – Pro, Shimano GRX Di2 model is much heavier than average. In conclusion, the average Gravel bike weighs 21.77% less than Gravel Ti – Pro, Shimano GRX Di2.
Gravel Ti – Pro, Shimano GRX Di2 components
Fork material
Gravel Ti – Pro, Shimano GRX Di2 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Gravel Ti – Pro, Shimano GRX Di2 bike is equipped with the carbon model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ribble Gravel Ti – Pro, Shimano GRX Di2 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Gravel Ti – Pro, Shimano GRX Di2 comes in 12 sizes, that range from 152 cm – 194 cm (4.99 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
