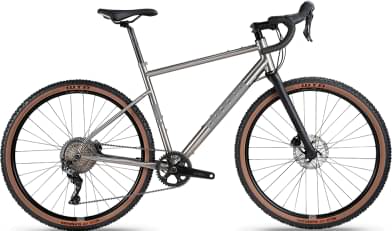

Ribble Gravel Ti – Sport, Shimano GRX RX600 2022
2022 Road
Estimate price |
3,478$
Weight | 10.45 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
152cm - 163cm
XXS
152cm - 163cm
XS
161cm - 171cm
XS
161cm - 171cm
SM
169cm - 176cm
SM
169cm - 176cm
MD
174cm - 181cm
MD
174cm - 181cm
LG
179cm - 186cm
LG
179cm - 186cm
XL
184cm - 194cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3AL/2.5V Titanium, Triple-Butted, Seamless Welds.
Suspension Fork
Gravel Ti, Full Carbon, Tapered Steerer, Carryall Mounts.
Drivetrain
Rear Derailleur
Shimano GRX RX812 Shadow RD+.
Shift Levers
Shimano GRX RX600 11-Speed Hydraulic.
Cassette
Shimano SLX M7000 11-Speed 11-42T.
Crank
Shimano GRX RX600, 1x11 Speed, 40T.
Bottom Bracket
Shimano BB-R60 Threaded BSA.
Chain
KMC X11 11-Speed with MissingLink, Grey.
Wheels
Rims
Mavic Allroad Disc 650b, 12x100F/12x142R.
Tires
Halo GXC Gravel, 650bx47mm, Tan Wall.
Brakes
Brakes
Shimano GRX Flat Mount Hydraulic Disc.
Disk Rotors
Shimano RT70 Centre Lock 160mm.
Cockpit
Stem
LEVEL 1 6061 Alloy, Black.
Handlebar
LEVEL Gravel Riser Flared, 420/510mm.
Headset
LEVEL 44, 44mm External, (Available in a choice of colours).
Seat
Saddle
Selle Italia X3 Boost, Black.
Seatpost
LEVEL 2 Carbon/Alloy, 27.2mm, 350mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XXS | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.43 mm | 1.43 mm | 1.45 mm | 1.45 mm | 1.46 mm | 1.46 mm | 1.48 mm | 1.48 mm | 1.51 mm | 1.51 mm |
| Front Center | 595 mm | 595 mm | 591 mm | 591 mm | 611 mm | 611 mm | 625 mm | 625 mm | 641 mm | 641 mm | 648 mm | 648 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 74 mm | 80 mm | 86 mm | 58 mm | 64 mm | 59 mm | 65 mm | 50 mm | 57 mm | 57 mm | 63 mm |
| Stack | 531 mm | 531 mm | 552 mm | 552 mm | 571 mm | 571 mm | 590 mm | 590 mm | 609 mm | 609 mm | 631 mm | 631 mm |
| Reach | 378 mm | 378 mm | 387 mm | 387 mm | 394 mm | 394 mm | 403 mm | 403 mm | 412 mm | 412 mm | 418 mm | 418 mm |
| Top Tube Length | 514 mm | 514 mm | 528 mm | 528 mm | 556 mm | 556 mm | 576 mm | 576 mm | 591 mm | 591 mm | 608 mm | 608 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.3 ° | 73.3 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 440 mm | 460 mm | 460 mm | 480 mm | 480 mm | 500 mm | 500 mm | 520 mm | 520 mm | 540 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 90 mm | 90 mm | 110 mm | 110 mm | 130 mm | 130 mm | 150 mm | 150 mm | 170 mm | 170 mm | 190 mm | 190 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1026 mm | 1026 mm | 1022 mm | 1022 mm | 1043 mm | 1043 mm | 1058 mm | 1058 mm | 1074 mm | 1074 mm | 1081 mm | 1081 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 67 mm | 67 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 |
| Rider Min Height | 152 cm | 152 cm | 161 cm | 161 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 184 cm | 184 cm |
| Rider Max Height | 163 cm | 163 cm | 171 cm | 171 cm | 176 cm | 176 cm | 181 cm | 181 cm | 186 cm | 186 cm | 194 cm | 194 cm |
Model Overview
Gravel Ti – Sport, Shimano GRX RX600 belongs to the Ribble Gravel model. Ribble launched 22 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Ribble Gravel AL – Sport, SRAM Apex 1x 2022 has a starting price of 1662$. Ribble Gravel Ti – Hero, SRAM Force XPLR eTap AXS 2022 on the other hand is the most expensive at 5925$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 3161$. Doing a quick comparison, we notice that Gravel Ti – Sport, Shimano GRX RX600 price is 28.39% more expensive than the average cost of a Gravel bike.
Average weight for Gravel bikes
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Ribble Gravel Ti – Sport, Shimano GRX RX600 it’s weighing 10.45 kg (23.04 lbs). At this weight, is much heavier than average. In conclusion, the average Gravel bike weighs 28.54% less than Gravel Ti – Sport, Shimano GRX RX600.
Gravel Ti – Sport, Shimano GRX RX600 components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the Gravel Ti – Sport, Shimano GRX RX600 bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Ribble Gravel Ti – Sport, Shimano GRX RX600 bike has 12 sizes, in the range of 152 cm – 194 cm (4.99 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
