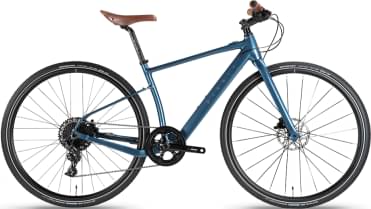

Ribble Hybrid AL e – Standard Edition 2022
2022 E-bike
Estimate price |
2,469$
Weight | 13.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset NX, SRAM -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic 36V/250Wh, 18650GA-10S/2P. -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 163cm
MD
161cm - 173cm
LG
171cm - 183cm
XL
181cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless.
Suspension Fork
Hybrid AL e, Full Carbon, Tapered.
Drivetrain
Rear Derailleur
SRAM NX, 1x11, Long Cage.
Shift Levers
SRAM NX Trigger Shifter R/H 11-Speed.
Cassette
SRAM PG-1130 11-Speed 11-42T.
Crank
SRAM S350 GXP, 1x11, 42T.
Bottom Bracket
SRAM GXP Team BB86.
Chain
SRAM PC1110 11-Speed with Powerlock.
Pedals
Plastic MTB Pedals, Black.
Wheels
Rims
Mavic Allroad Disc UST, 12x100F/12x142 Rear.
Tires
Schwalbe Marathon Rigid 700x35c, Bk/Reflex.
Brakes
Brakes
Tektro HD-R280 Flat Mount Hydraulic.
Disk Rotors
SRAM Centreline 6-Bolt 160mm.
Cockpit
Stem
LEVEL 1 6061 Alloy, Black.
Handlebar
LEVEL Urban Alloy, 640mm.
Grips
LEVEL Lock-On Urban Ergo Gel, Brown.
Headset
LEVEL 52, 42-52mm.
Seat
Saddle
Ribble Classic, Brown.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm, 350mm.
Motor & Battery
Motor
MAHLE SmartBike Systems X35+ M1 250W.
Battery
Panasonic 36V/250Wh, 18650GA-10S/2P.
Charger
Supplied with UK Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.41 mm | 1.42 mm | 1.46 mm |
| Front Center | 608 mm | 637 mm | 654 mm | 682 mm |
| Rake | 48 mm | 48 mm | 48 mm | 47 mm |
| Trail | 69 mm | 69 mm | 69 mm | 70 mm |
| Stack | 533 mm | 574 mm | 594 mm | 633 mm |
| Reach | 393 mm | 408 mm | 418 mm | 433 mm |
| Top Tube Length | 555 mm | 588 mm | 603 mm | 637 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 420 mm | 490 mm | 540 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 122 mm | 165 mm | 190 mm | 230 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1042 mm | 1071 mm | 1088 mm | 1116 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 161 cm | 171 cm | 181 cm |
| Rider Max Height | 163 cm | 173 cm | 183 cm | 193 cm |
About this model
Hybrid AL e – Standard Edition is a Ribble E Hybrid model. There are 14 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Ribble Hybrid AL e – Standard Edition 2022 is the most economical model, with a starting price of 2286$. Ribble Hybrid AL e Trail, SRAM Apex 1x 2022 on the other hand costs 3161$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Ribble released this model in 2022, its price was 2286$. Comparing this to the average Hybrid e-bike price, we see that the price is 8.49% lower.
Average weight for Hybrid e-bikes
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Ribble Hybrid AL e – Standard Edition it’s weighing 13.1 kg (28.88 lbs). At this weight, is much lighter than average. In short, the average Hybrid e-bike weight is 81.6% higher than this one.
Hybrid AL e – Standard Edition components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Ribble Hybrid AL e – Standard Edition 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Ribble Hybrid AL e – Standard Edition has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 152 cm – 193 cm (4.99 ft – 6.33 ft). In short, it won’t be difficult to find the right one for you.
