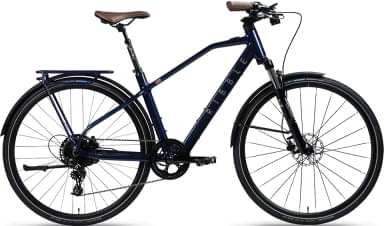

Ribble Hybrid AL e Trail, SRAM Apex 1x 2022
2022 E-bike
Estimate price |
3,478$
Weight | 19.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 60mm -
Groupset Apex, Apex 1 -
Suspension Hardtail -
Motor MAHLE 250W hub-drive -
Battery Panasonic 36V/250Wh, 18650GA-10S/2P. -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 171cm
MD
169cm - 179cm
LG
177cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Suspension Fork
Zoom 188DS Air, 60mm Travel with Remote Lockout.
Drivetrain
Rear Derailleur
SRAM Apex 1x11 Speed Long Cage.
Shift Levers
SRAM Apex 1 R/H Flat Bar Shifter.
Cassette
SRAM PG-1130 11-Speed 11-42T.
Crank
SRAM S350 GXP, 1x11, 42T.
Bottom Bracket
SRAM GXP Team Press Fit BB86.
Chain
SRAM PC-1110 11-Speed with Powerlock.
Wheels
Rims
Mavic Allroad DCL UST, 12x100F/12x142 Bolt-On Rear.
Tires
Schwalbe Marathon Rigid, 700x35c, Black/Reflex.
Brakes
Brakes
Tektro HD-R280/R275 Hydraulic Disc.
Disk Rotors
SRAM Centreline 6-Bolt 160mm.
Cockpit
Handlebar
LEVEL Urban Ergo Gel, Brown (Black also available in BikeBuilder).
Headset
LEVEL H56 Integrated, Black.
Seat
Saddle
Selle Italia City, Brown (Black also available in BikeBuilder).
Seatpost
LEVEL Urban Suspension, 0mm Offset, 400mm Travel.
Motor & Battery
Motor
MAHLE SmartBike Systems X35+ 250W.
Battery
Panasonic 36V/250Wh, 18650GA-10S/2P.
Charger
Supplied with UK Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.48 mm | 1.48 mm | 1.46 mm |
| Stack | 561 mm | 580 mm | 598 mm | 618 mm |
| Reach | 371 mm | 393 mm | 403 mm | 424 mm |
| Top Tube Length | 543 mm | 578 mm | 594 mm | 623 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 540 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1033 mm | 1061 mm | 1078 mm | 1105 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 171 cm | 179 cm | 186 cm | 194 cm |
About this model
Hybrid AL e Trail, SRAM Apex 1x is part of the Ribble E Hybrid model. Ribble launched 14 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Ribble Hybrid AL e – Standard Edition 2022 has a starting price of 2286$. Ribble Hybrid AL e Trail, SRAM Apex 1x 2022 on the other hand is the most expensive at 3161$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Ribble Hybrid AL e Trail, SRAM Apex 1x price was 3161$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 28.86% higher.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes have an average weight of 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 19.5 kg (42.99 lbs), the Hybrid AL e Trail, SRAM Apex 1x model is much lighter than average. To sum up, it’s 19.03% lighter than the average weight of Crosscountry e-bikes.
Overview of components
Wheels
The Hybrid AL e Trail, SRAM Apex 1x 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 152 cm – 194 cm (4.99 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
