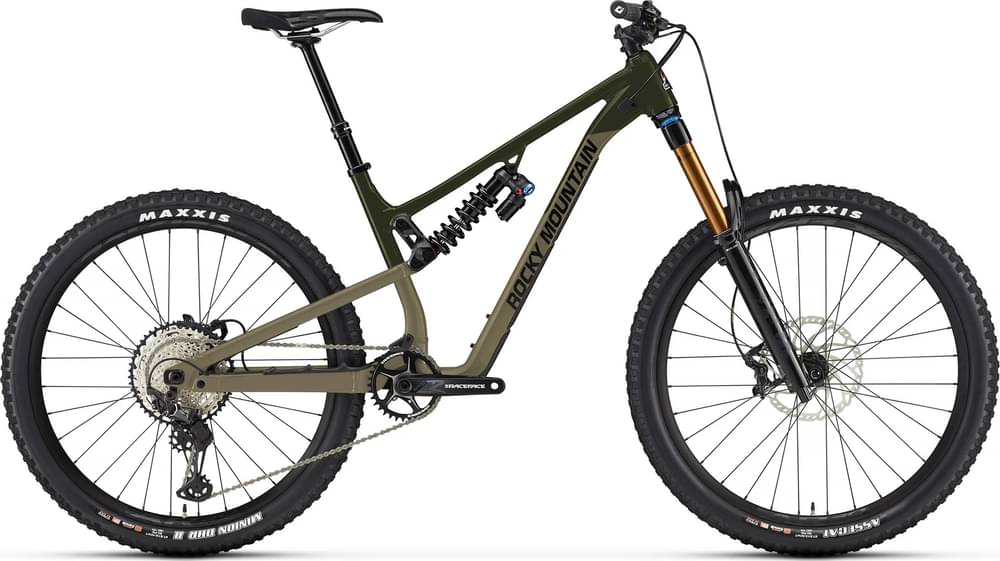

Rocky Mountain Altitude Alloy 70 Coil 2022
2022 Mountain
Estimate price |
5,749$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XT, Race Face -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM Steep
155cm - 167cm
SM Neutral
155cm - 167cm
SM Slack
155cm - 167cm
MD Neutral
165cm - 175cm
MD Steep
165cm - 175cm
MD Slack
165cm - 175cm
MD Steep
167cm - 177cm
MD Neutral
167cm - 177cm
MD Slack
167cm - 177cm
LG Steep
175cm - 188cm
LG Neutral
175cm - 188cm
LG Slack
175cm - 188cm
XL Steep
185cm - 198cm
XL Neutral
185cm - 198cm
XL Slack
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry. 2 Position Axle. 160mm Travel. FORM™ Alloy Rear Triangle
Suspension Fork
Fox 38 Float EVOL GRIP2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset
Rear Shock
Fox DHX Coil Factory | Sealed Bearing Eyelet | SM = 210x55mm | MD - LG - XL = 230x60mm
Drivetrain
Rear Derailleur
Shimano XT
Shift Levers
Shimano XT
Cassette
Shimano SLX 10-51T
Crank
Race Face Aeffect R Cinch | 32T | 24mm Spindle | 170mm Crank Length
Bottom Bracket
FSA BB92 24mm
Chain
Shimano M7100
Wheels
Front Hub
Rocky Mountain Sealed Boost 15mm
Rear Hub
DT Swiss 370 Boost 148mm | 18T Star-Ratchet
Rims
Race Face AR 30 | 32H | Tubeless Ready - Tape and Valves Incl
Spokes
DT Swiss Competition 2.0/1.8/2.0
Tires
F - Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready | R - Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready
Brakes
Brakes
Shimano XT Trail 4 Piston | Metal Pads
Cockpit
Stem
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m
Handlebar
Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
Grips
ODI Elite Pro Lock On
Headset
FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Seat
Saddle
WTB Volt Race 142
Seatpost
Race Face Aeffect R Dropper 30.9mm | Shimano MT500 Remote | SM = 125mm | MD = 150mm | LG - XL = 175mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Steep | SM Neutral | SM Slack | MD Neutral | MD Steep | MD Slack | MD Steep | MD Neutral | MD Slack | LG Steep | LG Neutral | LG Slack | XL Steep | XL Neutral | XL Slack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.39 mm | 1.42 mm | 1.33 mm | 1.31 mm | 1.36 mm | 1.34 mm | 1.37 mm | 1.39 mm | 1.3 mm | 1.32 mm | 1.35 mm | 1.25 mm | 1.27 mm | 1.3 mm |
| Bottom Bracket Height | 351 mm | 343 mm | 335 mm | 343 mm | 350 mm | 336 mm | 355 mm | 347 mm | 340 mm | 355 mm | 347 mm | 340 mm | 355 mm | 347 mm | 340 mm |
| Front Center | 744 mm | 744 mm | 745 mm | 772 mm | 772 mm | 774 mm | 781 mm | 781 mm | 782 mm | 813 mm | 813 mm | 813 mm | 849 mm | 849 mm | 75 mm |
| Rake | 36 mm | 38 mm | 39 mm | 36 mm | 36 mm | 37 mm | 43 mm | 45 mm | 45 mm | 44 mm | 45 mm | 44 mm | 44 mm | 45 mm | -661 mm |
| Trail | 122 mm | 124 mm | 127 mm | 126 mm | 122 mm | 129 mm | 123 mm | 125 mm | 130 mm | 122 mm | 125 mm | 131 mm | 122 mm | 125 mm | 912 mm |
| Stack | 588 mm | 593 mm | 598 mm | 603 mm | 598 mm | 607 mm | 613 mm | 617 mm | 621 mm | 626 mm | 631 mm | 635 mm | 640 mm | 644 mm | 649 mm |
| Reach | 434 mm | 427 mm | 420 mm | 452 mm | 458 mm | 446 mm | 458 mm | 452 mm | 446 mm | 483 mm | 477 mm | 471 mm | 513 mm | 507 mm | 501 mm |
| Top Tube Length | 574 mm | 576 mm | 577 mm | 600 mm | 602 mm | 604 mm | 605 mm | 607 mm | 608 mm | 634 mm | 635 mm | 637 mm | 667 mm | 668 mm | 670 mm |
| Seat Tube Angle | 76.5 ° | 76 ° | 75.4 ° | 76 ° | 76.5 ° | 75.4 ° | 76.5 ° | 76 ° | 75.4 ° | 76.5 ° | 76 ° | 75.4 ° | 76.5 ° | 76 ° | 75.4 ° |
| Seat Tube Length | 380 mm | 380 mm | 380 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 445 mm | 445 mm | 445 mm | 480 mm | 480 mm | 480 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 64.4 ° | 65 ° | 65.5 ° | 64.4 ° | 65.5 ° | 65 ° | 64.4 ° | 65.5 ° | 65 ° | 64.4 ° | 65.5 ° | 65 ° | 64.4 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 110 mm | 110 mm | 110 mm | 95 mm | 95 mm | 95 mm | 110 mm | 110 mm | 110 mm | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 422 mm | 424 mm | 425 mm | 424 mm | 423 mm | 425 mm | 433 mm | 434 mm | 435 mm | 433 mm | 434 mm | 435 mm | 433 mm | 434 mm | 435 mm |
| Wheelbase | 1166 mm | 1168 mm | 1169 mm | 1196 mm | 1195 mm | 1198 mm | 1213 mm | 1214 mm | 1215 mm | 1245 mm | 1246 mm | 1246 mm | 1281 mm | 1282 mm | 501 mm |
| Bottom Bracket Drop | 4 mm | 12 mm | 20 mm | 12 mm | 5 mm | 19 mm | 19 mm | 27 mm | 34 mm | 19 mm | 27 mm | 34 mm | 19 mm | 27 mm | 34 mm |
| Standover Height | 771 mm | 768 mm | 764 mm | 801 mm | 809 mm | 794 mm | 816 mm | 813 mm | 810 mm | 816 mm | 813 mm | 810 mm | 816 mm | 813 mm | 810 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 155 cm | 165 cm | 165 cm | 165 cm | 167 cm | 167 cm | 167 cm | 175 cm | 175 cm | 175 cm | 185 cm | 185 cm | 185 cm |
| Rider Max Height | 167 cm | 167 cm | 167 cm | 175 cm | 175 cm | 175 cm | 177 cm | 177 cm | 177 cm | 188 cm | 188 cm | 188 cm | 198 cm | 198 cm | 198 cm |
About this model
Altitude Alloy 70 Coil completes the Rockymountain Altitude model. 88 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Rocky Mountain Altitude Alloy 30 2022 is the most affordable bike of this model and has a price of 3839$. On the other hand, Rocky Mountain Altitude Carbon 90 Rally Edition 2022, is the most expensive and costs 10229$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 5749$. In conclusion, this bike price is 59.74% more expensive than the price of the average Enduro bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Altitude Alloy 70 Coil components
Fork
The Fox Factory Float 38 is included from the factory. It has a travel distance of 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Fox DHX Coil Factory | Sealed rear shock model, which has a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Altitude Alloy 70 Coil bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Rocky Mountain Altitude Alloy 70 Coil has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Rocky Mountain Altitude Alloy 70 Coil bike has 15 sizes, in the range of 155 cm – 198 cm (5.09 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Altitude Alloy 70 Coil. Therefore, climbing or descending will be a breeze.
