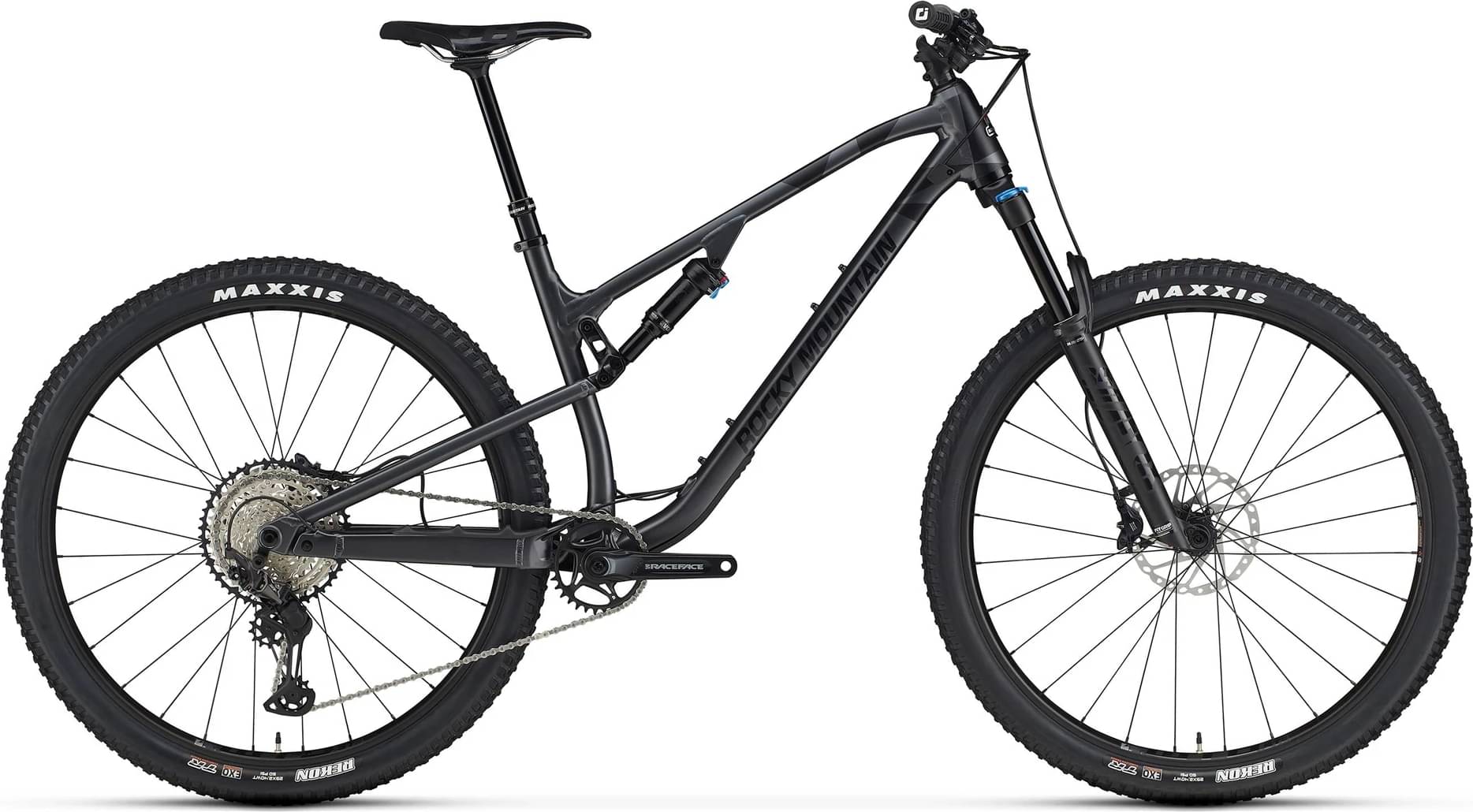

Rocky Mountain Element Alloy 50 2022
2022 Mountain
Estimate price |
4,049$
Weight | 14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Performance Float 34
-
Groupset XT, SLX -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS Steep
142cm - 159cm
XS Slack
142cm - 159cm
SM Steep
156cm - 170cm
SM Slack
156cm - 170cm
MD Steep
167cm - 177cm
MD Slack
167cm - 177cm
LG Steep
175cm - 188cm
LG Slack
175cm - 188cm
XL Steep
185cm - 198cm
XL Slack
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. RIDE-4™ Adjustable Geometry. 120mm Travel. FORM™ Alloy Rear Triangle
Suspension Fork
Fox 34 Float Performance 130mm | 44mm Offset
Rear Shock
Fox Float DPS Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm | Size-Specific tune in FAQ
Drivetrain
Rear Derailleur
Shimano XT
Shift Levers
Shimano SLX
Cassette
Shimano SLX 10-51T
Crank
Race Face Aeffect Cinch | 32T Steel | 24mm Spindle | Crankarm Length: XS = 165mm Crankarm | SM - XL = 170mm
Bottom Bracket
FSA BB92 24mm
Chain
Shimano M7100
Wheels
Front Hub
Rocky Mountain Sealed Boost 15mm
Rear Hub
Shimano SLX Boost 148mm
Rims
WTB ST Light i27 TCS 2.0 Tubeless | 28H | Tubeless Ready - Tape | Valves Incl
Spokes
DT Swiss Competition 2.0/1.8/2.0
Tires
F: Maxxis Rekon 2.4 WT EXO Tubeless Ready | R: Maxxis Rekon 2.4 WT EXO Tubeless Ready |
Brakes
Brakes
Shimano SLX 2 Piston | Resin Pads | F: Shimano RT64 180mm | R: Shimano RT64 180mm
Cockpit
Stem
Rocky Mountain 31.8 XC | 5° Rise | All Sizes = 50m
Handlebar
Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
ODI Elite Pro Lock On
Headset
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Seat
Saddle
WTB Silverado Race 142
Seatpost
Rocky Mountain Toonie Drop Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS Steep | XS Slack | SM Steep | SM Slack | MD Steep | MD Slack | LG Steep | LG Slack | XL Steep | XL Slack |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.4 mm | 1.42 mm | 1.35 mm | 1.36 mm | 1.3 mm | 1.31 mm | 1.24 mm | 1.25 mm |
| Bottom Bracket Height | 336 mm | 327 mm | 338 mm | 327 mm | 338 mm | 327 mm | 338 mm | 327 mm | 338 mm | 327 mm |
| Front Center | 703 mm | 702 mm | 740 mm | 741 mm | 769 mm | 770 mm | 798 mm | 799 mm | 832 mm | 833 mm |
| Rake | 44 mm | 48 mm | 44 mm | 49 mm | 44 mm | 49 mm | 44 mm | 48 mm | 44 mm | 48 mm |
| Trail | 114 mm | 115 mm | 120 mm | 121 mm | 120 mm | 121 mm | 120 mm | 122 mm | 120 mm | 122 mm |
| Stack | 572 mm | 567 mm | 616 mm | 612 mm | 625 mm | 621 mm | 634 mm | 630 mm | 643 mm | 639 mm |
| Reach | 411 mm | 403 mm | 439 mm | 431 mm | 464 mm | 456 mm | 489 mm | 481 mm | 519 mm | 511 mm |
| Top Tube Length | 547 mm | 548 mm | 581 mm | 583 mm | 609 mm | 611 mm | 636 mm | 638 mm | 668 mm | 670 mm |
| Seat Tube Angle | 76.5 ° | 75.7 ° | 76.8 ° | 76 ° | 76.8 ° | 76 ° | 76.8 ° | 76 ° | 76.8 ° | 76 ° |
| Seat Tube Length | 355 mm | 355 mm | 380 mm | 380 mm | 420 mm | 420 mm | 445 mm | 445 mm | 480 mm | 480 mm |
| Head Tube Angle | 65.5 ° | 64.7 ° | 65.8 ° | 65 ° | 65.8 ° | 65 ° | 65.8 ° | 65 ° | 65.8 ° | 65 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm | 135 mm | 135 mm |
| Chainstay Length | 431 mm | 432 mm | 441 mm | 442 mm | 441 mm | 442 mm | 441 mm | 442 mm | 441 mm | 442 mm |
| Wheelbase | 1133 mm | 1133 mm | 1179 mm | 1179 mm | 1208 mm | 1208 mm | 1237 mm | 1237 mm | 1271 mm | 1271 mm |
| Bottom Bracket Drop | 19 mm | 28 mm | 36 mm | 47 mm | 36 mm | 47 mm | 36 mm | 47 mm | 36 mm | 47 mm |
| Standover Height | 778 mm | 775 mm | 819 mm | 816 mm | 817 mm | 814 mm | 816 mm | 812 mm | 814 mm | 810 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 156 cm | 156 cm | 167 cm | 167 cm | 175 cm | 175 cm | 185 cm | 185 cm |
| Rider Max Height | 159 cm | 159 cm | 170 cm | 170 cm | 177 cm | 177 cm | 188 cm | 188 cm | 198 cm | 198 cm |
About this model
Element Alloy 50 is part of the Rockymountain Element model. Rocky Mountain launched 77 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Rocky Mountain Element Alloy 10 2022 is the cheapest bike model and costs 2559$. Rocky Mountain Element Carbon 90 2022 is the most expensive one and costs 9589$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 4049$. In conclusion, this bike price is 46.6% more expensive than the price of the average Trail bike.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, Element Alloy 50 has a weight of 14 kg (30.86 lbs). In short, the average Trail bike weight is 7.86% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Rocky Mountain Element Alloy 50 bike has the Fox Float DPS Performance | Sealed model installed, and has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Element Alloy 50 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Element Alloy 50 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 10 sizes available for this model. Rider height can be anywhere between 142 cm – 198 cm (4.66 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Rocky Mountain Element Alloy 50 includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
