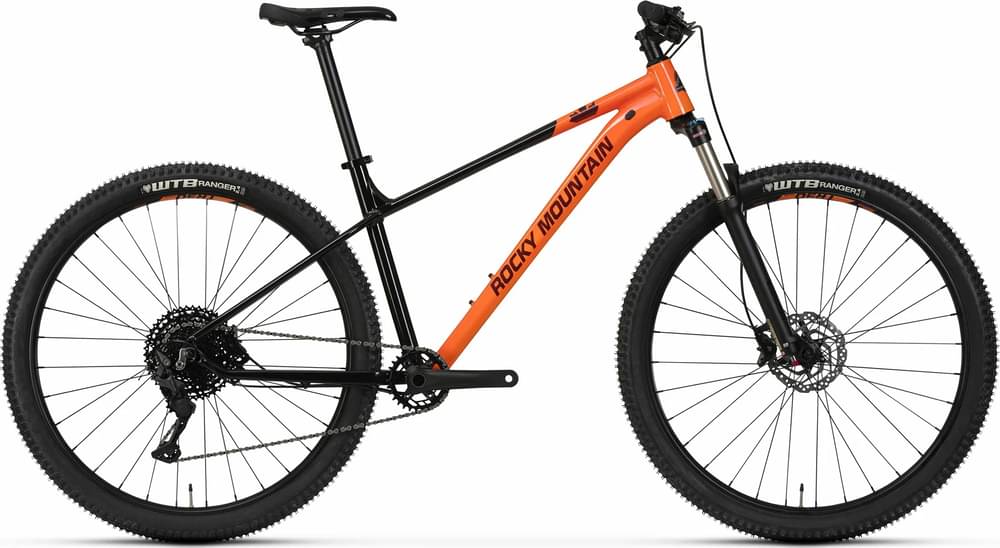

Rocky Mountain Fusion 30 2022
2022 Mountain
Estimate price |
1,069$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCR 32 Air
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 170cm
MD
167cm - 180cm
LG
177cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rocky Mountain 6061 Alloy. Threaded BB. Zero Stack Tapered Headtube
Suspension Fork
Suntour XCR32 LOR Air 100mm
Drivetrain
Rear Derailleur
Shimano Deore 10spd
Shift Levers
Shimano Deore 10spd
Cassette
Sunrace CSMS2 11-46T
Crank
Rocky Mountain Microdrive 2PC 30T
Bottom Bracket
Rocky Mountain Sealed - Shimano Compatible
Chain
KMC X10-1
Wheels
Front Hub
Shimano TX505
Rear Hub
Shimano TX505
Rims
Rocky Mountain TR30 Tubeless | 32H | Tubeless Compatible - Tape and Valves Not Incl
Spokes
2.0 Stainless
Tires
F - WTB Ranger Comp 29 x 2.4 | R - WTB Ranger Comp 29 x 2.4
Brakes
Brakes
Shimano MT4100 2 Piston | Resin Pads
Cockpit
Stem
Rocky Mountain XC
Handlebar
Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
Rocky Mountain Lock On Light
Headset
Rocky Mountain | Loose Ball Bearings | 1-1/8" Reducer Crown Race
Seat
Saddle
Rocky Mountain 148 Steel
Seatpost
Rocky Mountain 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.33 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 715 mm | 741 mm | 770 mm | 799 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 590 mm | 595 mm | 604 mm | 613 mm |
| Reach | 422 mm | 447 mm | 472 mm | 497 mm |
| Top Tube Length | 586 mm | 613 mm | 640 mm | 668 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 445 mm | 480 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1150 mm | 1177 mm | 1206 mm | 1235 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 760 mm | 773 mm | 783 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 167 cm | 177 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 188 cm | 198 cm |
Model Overview
Fusion 30 belongs to the Rockymountain Fusion model. 35 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Rocky Mountain Fusion 10 2022 has a starting price of 909$. Rocky Mountain Fusion 40 2022 on the other hand is the most expensive at 1439$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1069$. If we compare this with the average Crosscountry bike cost we notice that the price is 78.2% lower.
Overview of components
Fork
The SunTour XCR 32 Air is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the Fusion 30 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Rocky Mountain Fusion 30 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
