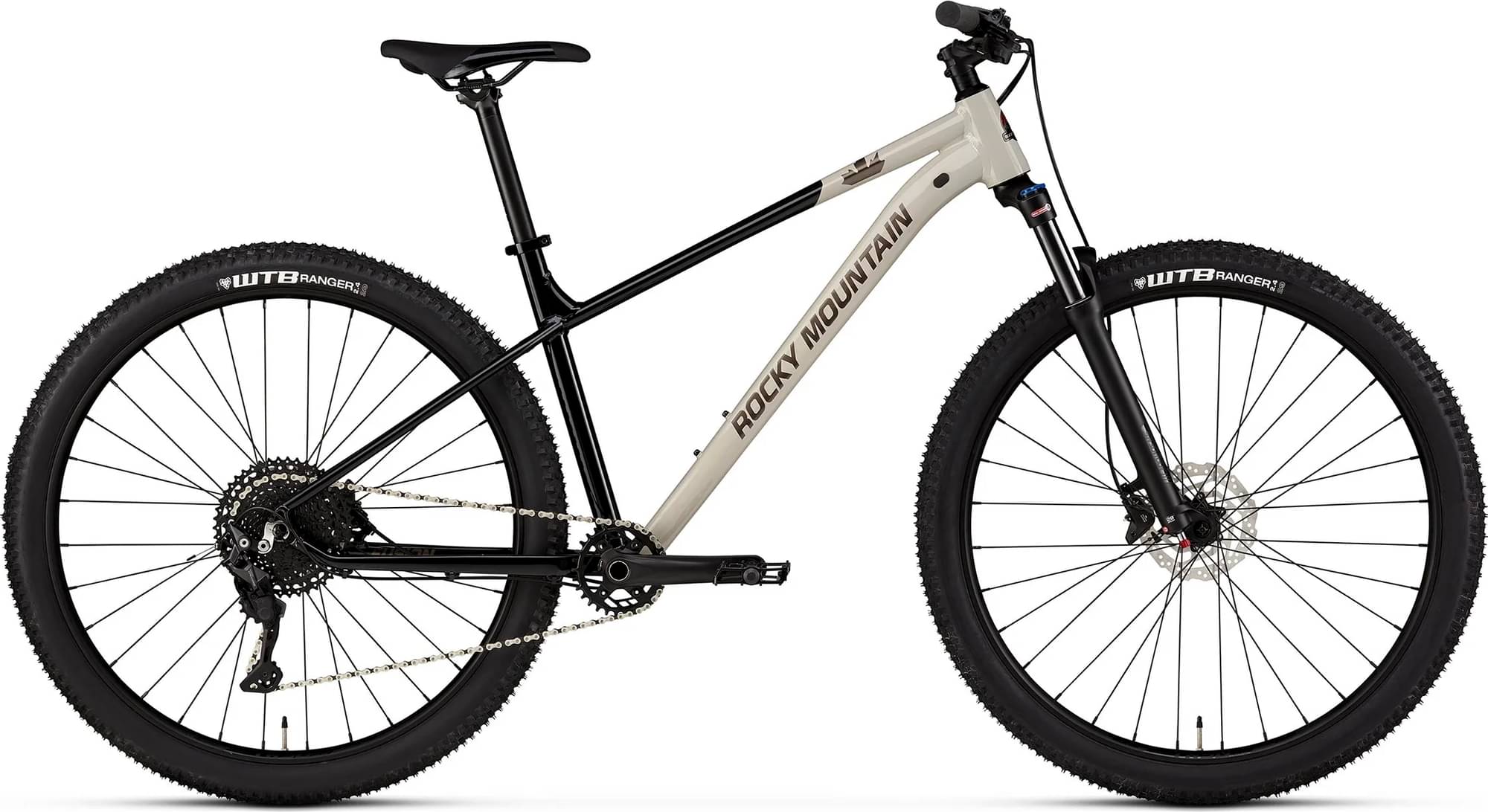

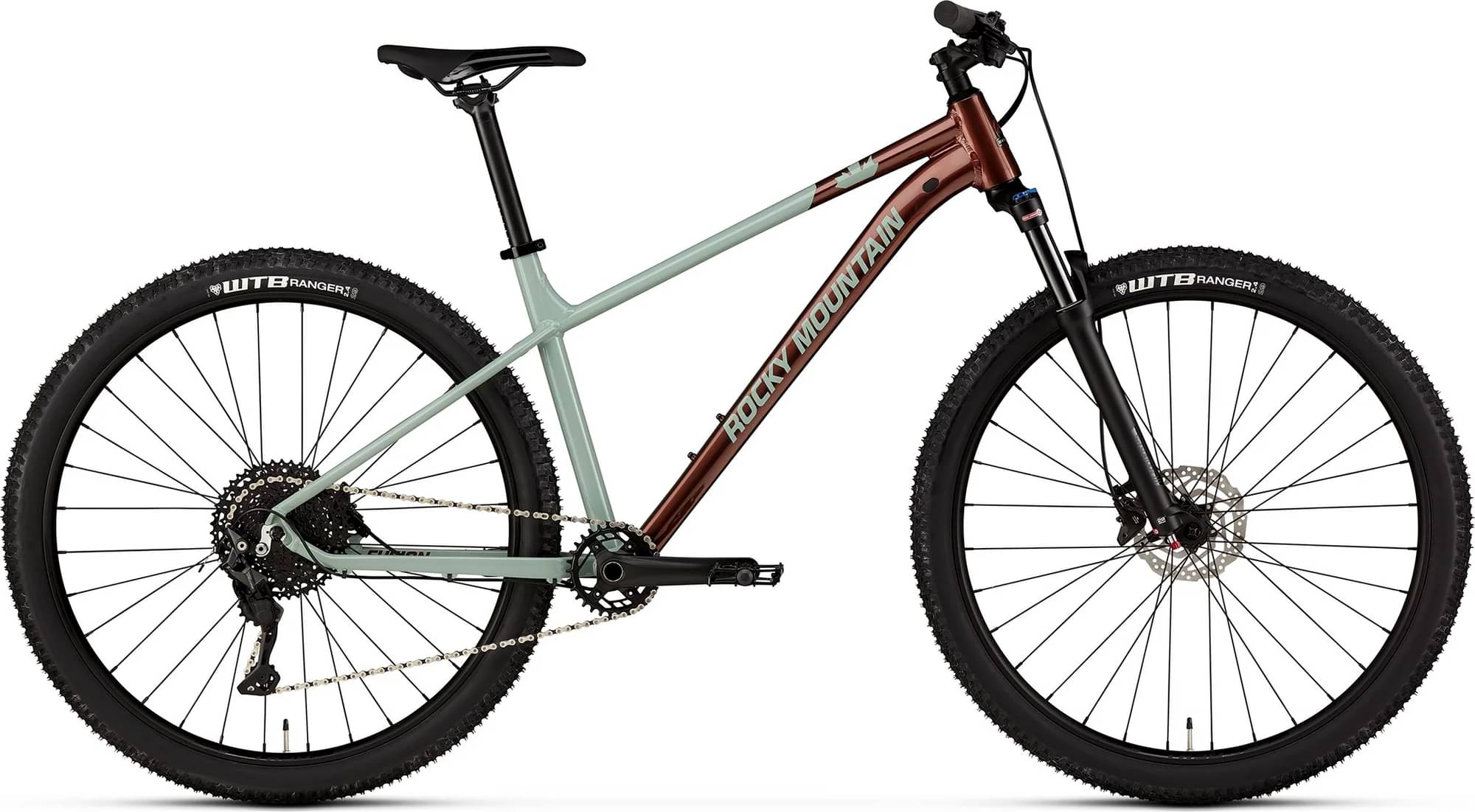

Rocky Mountain Fusion 30 2023
2023 Mountain
Estimate price |
1,069$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset microSHIFT Advent X -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 170cm
MD
167cm - 180cm
LG
177cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rocky Mountain 6061 Alloy | Threaded BB | Zero Stack Tapered Headtube Rear Triangle
Suspension Fork
Suntour XCR32 LOR Air 100mm
Drivetrain
Rear Derailleur
MicroShift Advent X 10spd With Clutch
Shift Levers
MicroShift Advent X 10spd
Cassette
Shimano Deore 11-46T 10spd
Crank
Rocky Mountain Microdrive 2PC | 30T |76mm Asymmetrical BCD | 24mm Spindle | Crank Length: XS-SM-MD = 170-mm | LG - XL = 175mm
Bottom Bracket
Rocky Mountain Sealed - Shimano Compatible
Chain
KMC X10-1
Wheels
Front Hub
Shimano TX505
Rear Hub
Shimano TX505
Rims
Rocky Mountain TR30 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl
Spokes
2.0 Stainless
Tires
F: WTB Ranger Comp 29 x 2.4 // R: WTB Ranger Comp 29 x 2.4
Brakes
Brakes
Shimano MT4100 2 Piston | Resin Pads | F:Shimano RT10 160mm | R:Shimano RT10 160mm
Cockpit
Stem
Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50mm
Handlebar
Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
Rocky Mountain Lock On Light
Headset
Rocky Mountain | Loose Ball Bearings | 1-1/8" Reducer Crown Race
Seat
Saddle
Rocky Mountain 148 Steel
Seatpost
Rocky Mountain 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.33 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 715 mm | 741 mm | 770 mm | 799 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 590 mm | 595 mm | 604 mm | 613 mm |
| Reach | 422 mm | 447 mm | 472 mm | 497 mm |
| Top Tube Length | 586 mm | 613 mm | 640 mm | 668 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 445 mm | 480 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1150 mm | 1177 mm | 1206 mm | 1235 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 760 mm | 773 mm | 783 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 167 cm | 177 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 188 cm | 198 cm |
Model Overview
Fusion 30 is part of the Rockymountain Fusion model. 35 bikes variations carry this model name so far. You can easily view all of the Rockymountain Fusion bikes models from 2023, here.
Model range prices
Rocky Mountain Fusion 10 Microshift 2023 is the most economical model, with a starting price of 909$. Rocky Mountain Fusion 40 2023 on the other hand costs 1439$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Rocky Mountain Fusion 30 price was 1069$. In conclusion, this bike price is 78.2% smaller than the price of the average Crosscountry bike.
Overview of components
Fork
Rocky Mountain Fusion 30 2023 bike is equipped with the Suntour XCR Air fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on Fusion 30 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Rocky Mountain Fusion 30 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Fusion 30 comes in 4 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
