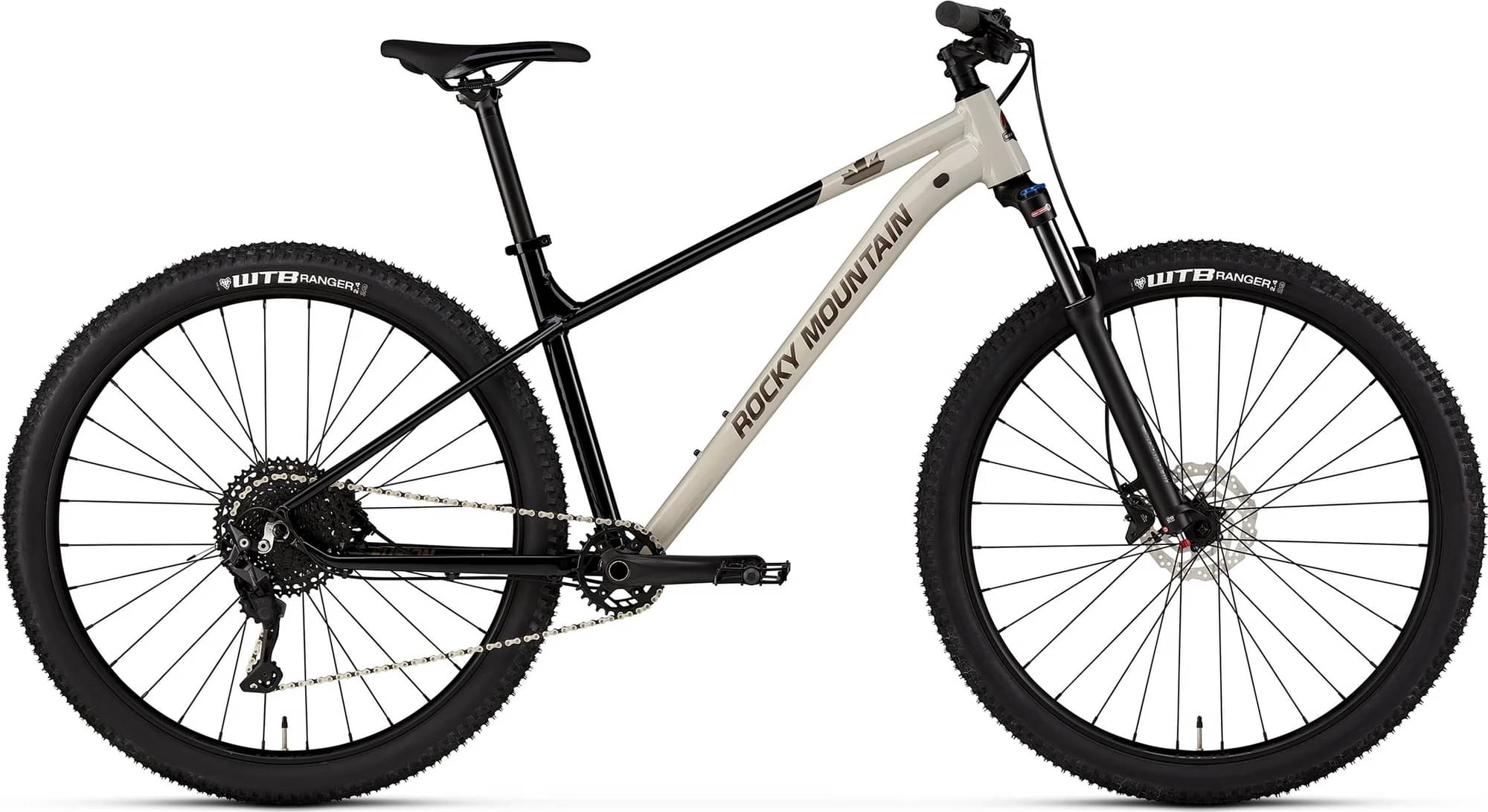

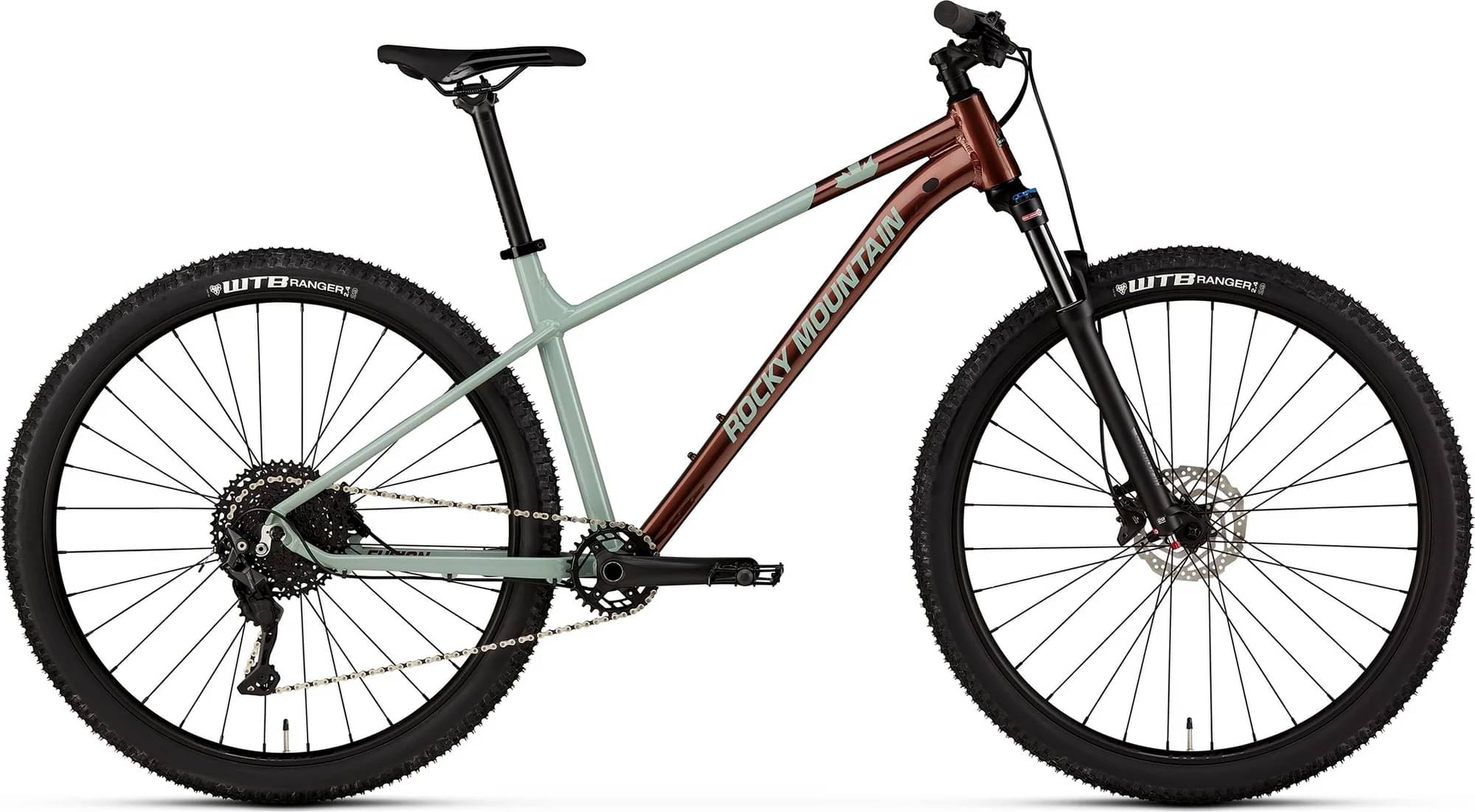

Rocky Mountain Fusion 30 Microshift 2023
2023 Mountain
Estimate price |
1,069$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset microSHIFT Advent X -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 170cm
MD
167cm - 180cm
LG
177cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rocky Mountain 6061 Alloy | Threaded BB | Zero Stack Tapered Headtube Rear Triangle
Suspension Fork
Suntour XCR32 LOR Air 100mm
Drivetrain
Rear Derailleur
MicroShift Advent X 10spd With Clutch
Shift Levers
MicroShift Advent X 10spd
Cassette
Shimano Deore 11-46T 10spd
Crank
Rocky Mountain Microdrive 2PC | 30T |76mm Asymmetrical BCD | 24mm Spindle | Crank Length: XS-SM-MD = 170-mm | LG - XL = 175mm
Bottom Bracket
Rocky Mountain Sealed - Shimano Compatible
Chain
KMC X10-1
Wheels
Front Hub
Shimano TX505
Rear Hub
Shimano TX505
Rims
Rocky Mountain TR30 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl
Spokes
2.0 Stainless
Tires
F: WTB Ranger Comp 29 x 2.4 // R: WTB Ranger Comp 29 x 2.4
Brakes
Brakes
Shimano MT4100 2 Piston | Resin Pads | F:Shimano RT10 160mm | R:Shimano RT10 160mm
Cockpit
Stem
Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50mm
Handlebar
Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
Rocky Mountain Lock On Light
Headset
Rocky Mountain | Loose Ball Bearings | 1-1/8" Reducer Crown Race
Seat
Saddle
Rocky Mountain 148 Steel
Seatpost
Rocky Mountain 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.33 mm | 1.28 mm | 1.23 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 715 mm | 741 mm | 770 mm | 799 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 590 mm | 595 mm | 604 mm | 613 mm |
| Reach | 422 mm | 447 mm | 472 mm | 497 mm |
| Top Tube Length | 586 mm | 613 mm | 640 mm | 668 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 445 mm | 480 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1150 mm | 1177 mm | 1206 mm | 1235 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 760 mm | 773 mm | 783 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 167 cm | 177 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 188 cm | 198 cm |
About this model
Fusion 30 Microshift belongs to the Rockymountain Fusion model. There are 35 bikes that carry this model name. You can easily view all of the Rockymountain Fusion bikes models from 2023, here.
Model range prices
The most economical model, the Rocky Mountain Fusion 10 Microshift 2023 has a starting price of 909$. Rocky Mountain Fusion 40 2023 on the other hand is the most expensive at 1439$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Rocky Mountain Fusion 30 Microshift price was 1069$. If we compare this with the average Crosscountry bike cost we notice that the price is 78.2% smaller.
Overview of components
Fork
The fork installed on this bike is the Suntour XCR Air model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Fusion 30 Microshift are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Fusion 30 Microshift comes in 4 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
