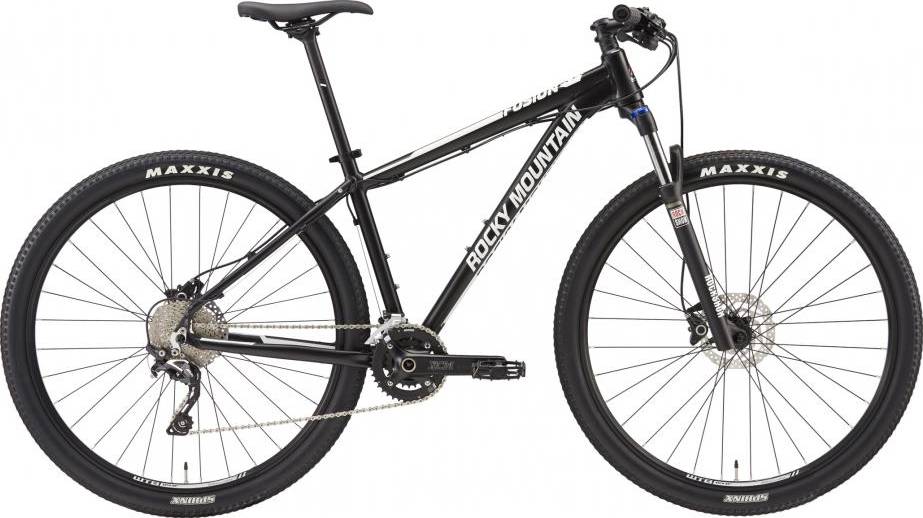

Rocky Mountain Fusion 940 2016
2016 Mountain
Estimate price |
999$
Weight | 14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox
-
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rocky Mountain 6061 Series Custom Hydroformed Alloy. Threaded BB. Tapered Zerostack Headtube. Rack and Fender Mounts.
Suspension Fork
RockShox XC30 Coil TK 29. 100mm (XS: 80mm). Turnkey Lockout / Rebound
Drivetrain
Rear Derailleur
Shimano SLX Shadow 10spd
Front Derailleur
Shimano Deore 31.8mm 2x10spd
Shift Levers
Shimano Deore Rapid Fire 10spd
Cassette
Shimano HG50 11-36T 10spd
Crank
Suntour XCM 170-175mm 38/24T 10spd
Bottom Bracket
Suntour Sealed 2 Piece
Chain
KMC X10 10spd
Wheels
Front Hub
Shimano RM33 / Centerlock / 32H
Rear Hub
Shimano RM33 / Centerlock / 32H
Rims
Wheeltech SX19 By WTB
Spokes
Stainless
Tires
Maxxis Sphinx 29\" x 2.1\"
Brakes
Brakes
Shimano M355 Hydraulic Disc 160mm
Brake Levers
Shimano M355
Cockpit
Stem
Rocky Mountain L7 7° x 60-90mm
Handlebar
Rocky Mountain Zero9 Flat 31.8mm x 720mm x 9° Sweep
Grips
Rocky Mountain XC Kraton
Headset
FSA #57 Internal: ZS44 | ZS56mm
Seat
Saddle
WTB Volt
Seatpost
Rocky Mountain L2B 27.2mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.61 mm | 1.51 mm | 1.48 mm | 1.45 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 637 mm | 630 mm | 652 mm | 676 mm | 699 mm |
| Rake | 53 mm | 44 mm | 43 mm | 42 mm | 43 mm |
| Trail | 83 mm | 88 mm | 89 mm | 90 mm | 89 mm |
| Stack | 603 mm | 621 mm | 620 mm | 634 mm | 648 mm |
| Reach | 382 mm | 386 mm | 410 mm | 429 mm | 446 mm |
| Top Tube Length | 556 mm | 576 mm | 598 mm | 621 mm | 644 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 355 mm | 394 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 70.25 ° | 70.25 ° | 70.25 ° | 70.25 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1084 mm | 1077 mm | 1099 mm | 1123 mm | 1146 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 725 mm | 744 mm | 758 mm | 782 mm | 814 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Fusion 940 completes the Rockymountain Fusion model. There are 35 bikes that carry this model name. Take a sneak peek at all Rockymountain Fusion bikes models from 2016, by clicking here.
Model range prices
Rocky Mountain Fusion 910 2016 is the most affordable bike of this model and has a price of 699$. On the other hand, Rocky Mountain Fusion 940 2016, is the most expensive and costs 999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2016 and its price was 999$. Comparing this to the average Crosscountry bike price, we see that the price is 90.69% smaller.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 14 kg (30.86 lbs), the Fusion 940 model is considerably heavier than average. In short, the average Crosscountry bike weight is 12.9% lower than this one.
Overview of components
Fork
Rocky Mountain Fusion 940 2016 bike is equipped with the RockShox fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Fusion 940 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
