Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REVEAL AL, matt black 45cm-27.5
Suspension Fork
REVEAL AL, matt black
Drivetrain
Rear Derailleur
SHIMANO 105 RD-R7150, 12-speed,
Front Derailleur
Shimano FD-R7150, 105, 12-speed
Shift Levers
Shimano ST-R7170, 105
Cassette
Shimano CSR7100, 105, 12-speed, 11-34
Crank
Shimano FC-R7100, 105, 50-34T, 12-speed, 170mm
Chain
Shimano CN-M7100, SLX, 12-speed 118 L
Pedals
Pedals are not included and must be ordered separately
Wheels
Rims
ROSE R25 | Newmen hubs | inner rim width 19mm | 24 spokes | approx. 1590g for 700c | TLR 27,5"
Tires
Continental Ultra Sport III Performance, black 650x28B
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
ROSE ALR, black sand 80mm
Handlebar
Ritchey Road Comp Streem II, black/matt 40cm
Seat
Saddle
Rose Edition by Selle Italia, black
Seatpost
Ritchey WTB, 350mm, black 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 48cm | 51cm | 53cm | 55cm | 57cm | 59cm | 61cm | 63cm | 65cm |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.38 mm | 1.43 mm | 1.44 mm | 1.46 mm | 1.49 mm | 1.49 mm | 1.5 mm | 1.51 mm | 1.51 mm |
| Front Center | 566 mm | 578 mm | 580.5 mm | 595.5 mm | 601.5 mm | 601.5 mm | 611 mm | 621.5 mm | 634 mm | 647.5 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 62 mm | 53 mm | 53 mm | 56 mm | 56 mm | 53 mm | 51 mm | 50 mm | 49 mm | 47 mm |
| Stack | 496 mm | 515 mm | 536 mm | 551 mm | 566 mm | 584 mm | 594.5 mm | 611.5 mm | 630 mm | 647 mm |
| Reach | 368 mm | 374 mm | 376 mm | 381.5 mm | 386.5 mm | 391.5 mm | 400 mm | 408 mm | 418.5 mm | 429 mm |
| Top Tube Length | 500 mm | 511 mm | 524 mm | 536 mm | 548 mm | 561 mm | 575 mm | 591 mm | 609 mm | 629 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74.25 ° | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 420 mm | 445 mm | 475 mm | 495 mm | 505 mm | 515 mm | 535 mm | 560 mm | 580 mm | 605 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.75 ° | 73 ° | 73.25 ° | 73.5 ° |
| Head Tube Length | 120 mm | 133 mm | 140 mm | 147 mm | 163 mm | 180 mm | 193 mm | 210 mm | 228 mm | 245 mm |
| Chainstay Length | 412 mm | 412 mm | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm | 422 mm | 422 mm | 428 mm |
| Wheelbase | 971 mm | 992 mm | 992 mm | 992 mm | 1002 mm | 1008 mm | 1019 mm | 1034 mm | 1046 mm | 1066 mm |
| Bottom Bracket Drop | 59 mm | 59 mm | 73 mm | 73 mm | 73 mm | 73 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 701 mm | 723 mm | 761 mm | 778 mm | 796 mm | 814 mm | 832 mm | 850 mm | 832 mm | 868 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 | 650 | 650 | 650 | 650 |

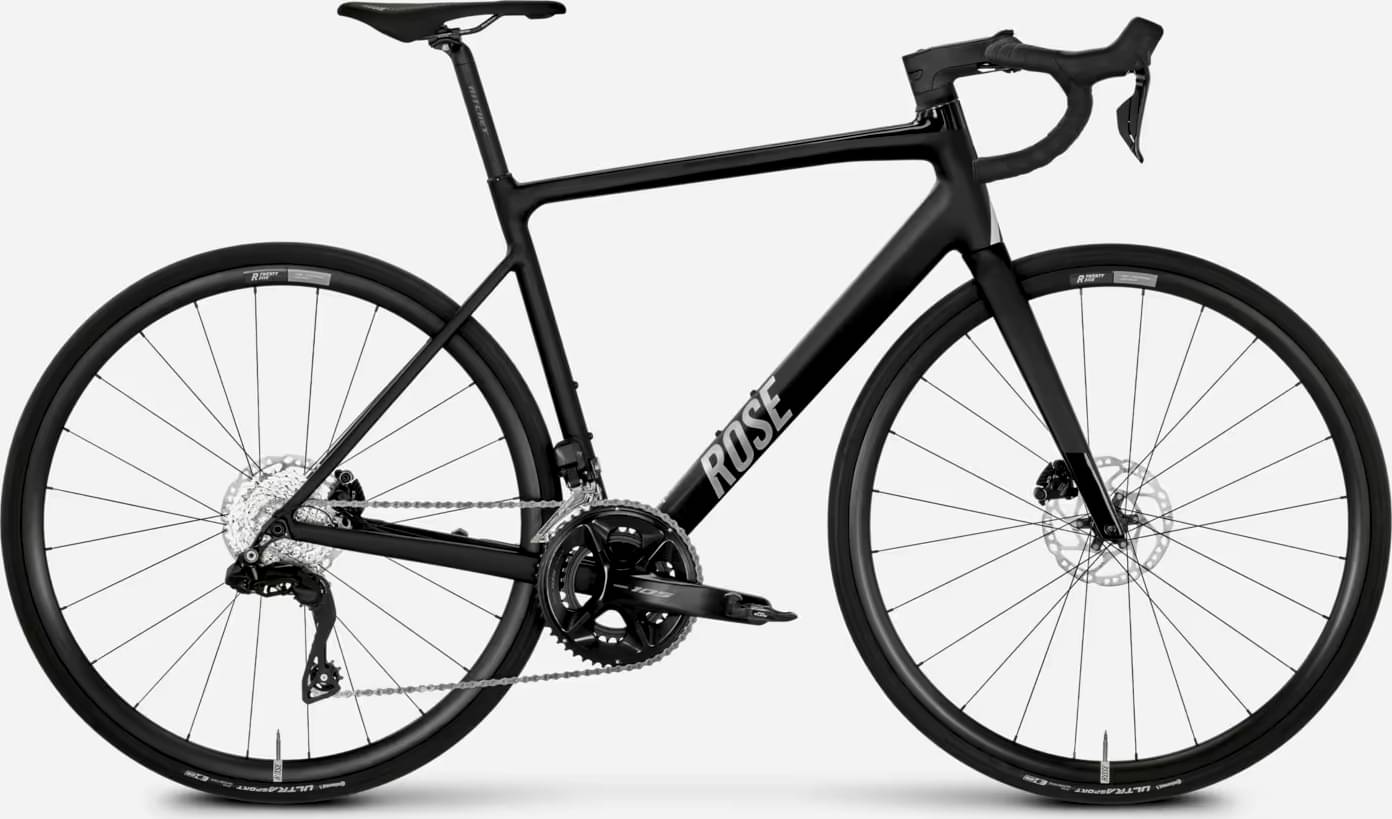

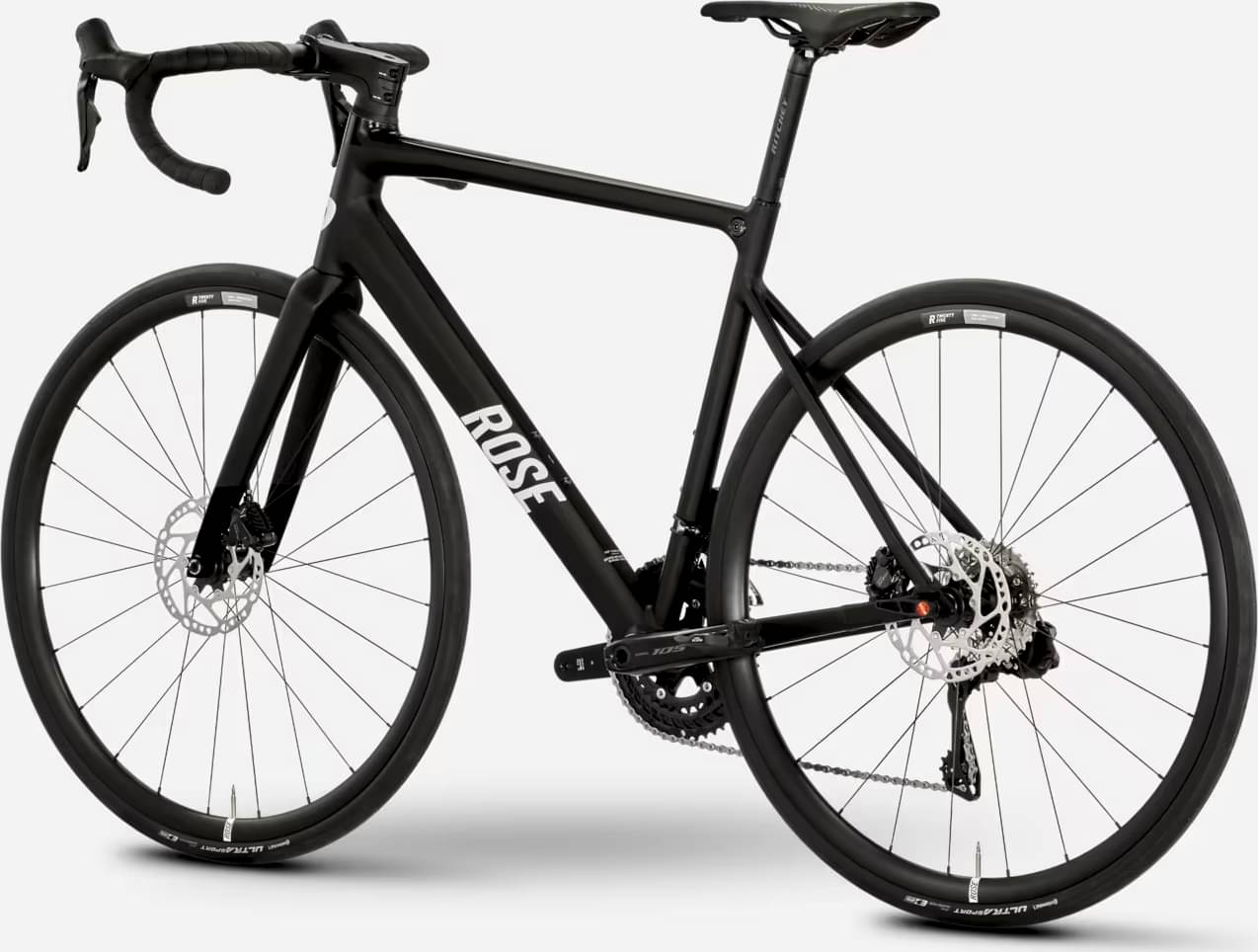

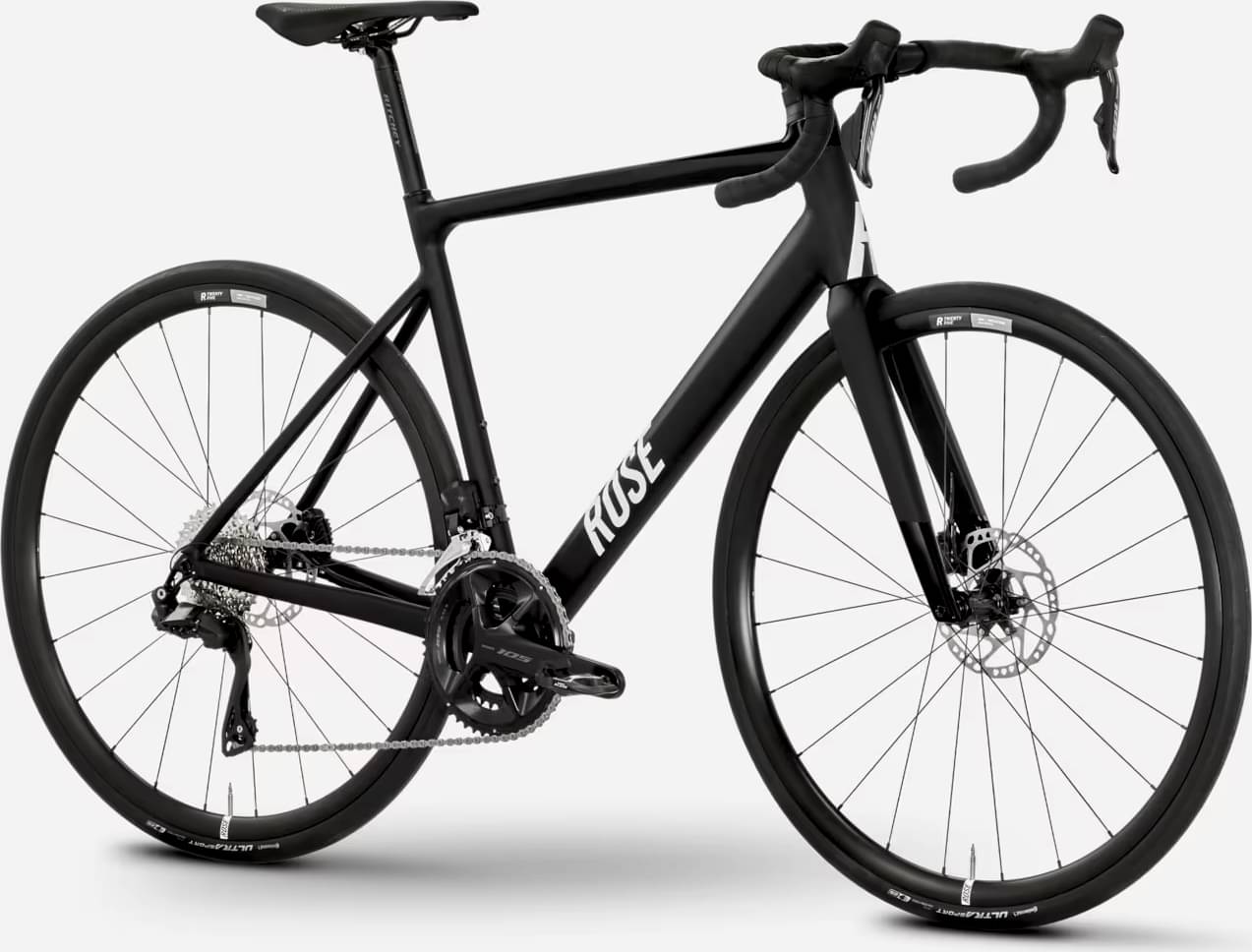

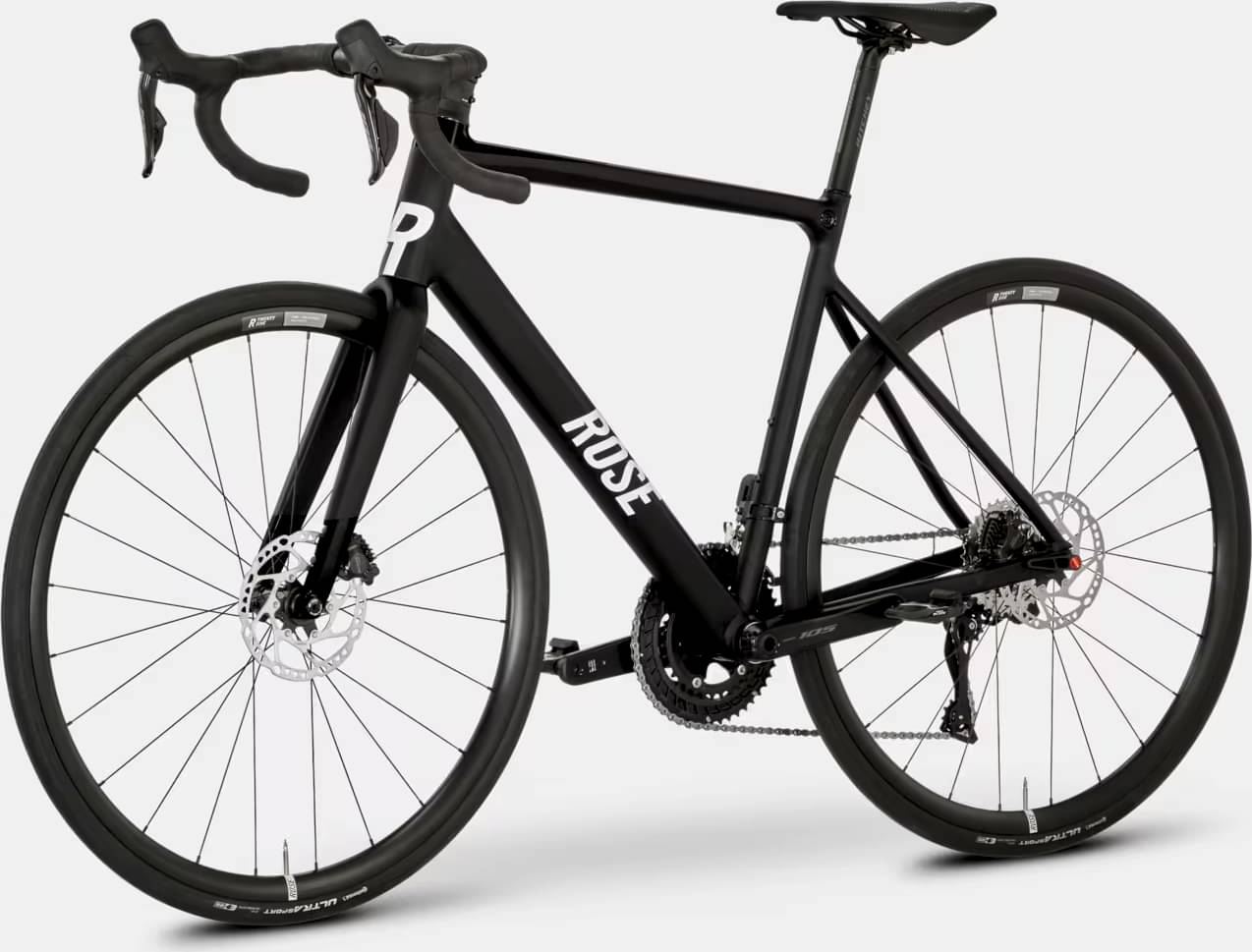

Model Overview
REVEAL AL 105 Di2 completes the Rose Reveal model. There are 59 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Rose REVEAL AL 105 2023 is the most affordable bike of this model and has a price of 1963$. On the other hand, Rose REVEAL SIX DISC Red eTap AXS 2023, is the most expensive and costs 7962$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance bikes
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Rose REVEAL AL 105 Di2 price was 2653$. In conclusion, this bike price is 13.09% higher than the price of the average Endurance bike.
REVEAL AL 105 Di2 components
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When it comes to wheels, the REVEAL AL 105 Di2 bike is equipped with the aluminum model. These wheels are less popular than 650b and 700c. However, 650c wheels have better acceleration, and can climb easier than 700c.
Brakes
When you want to stop the bike in time, the brakes are vital. The REVEAL AL 105 Di2 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
