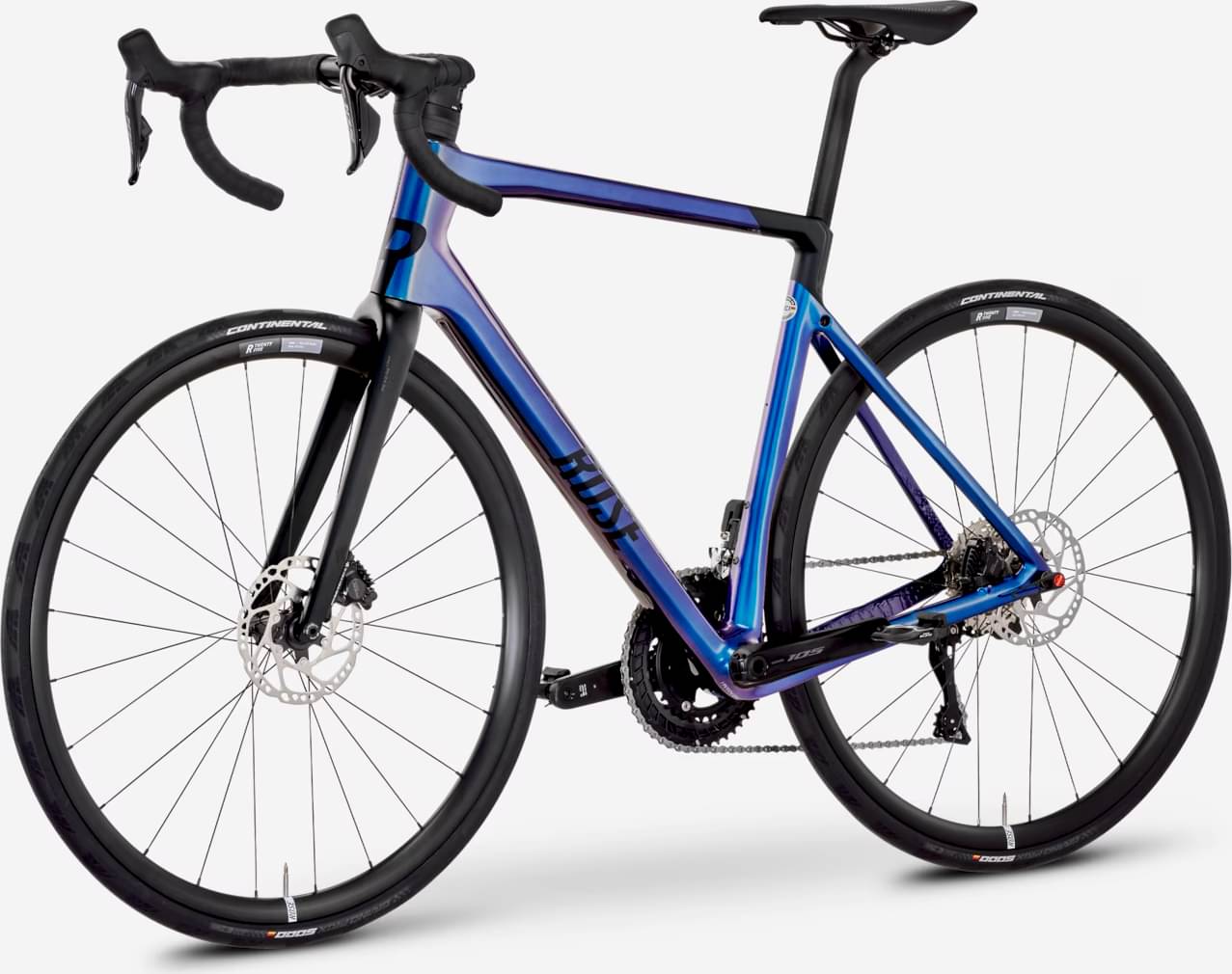

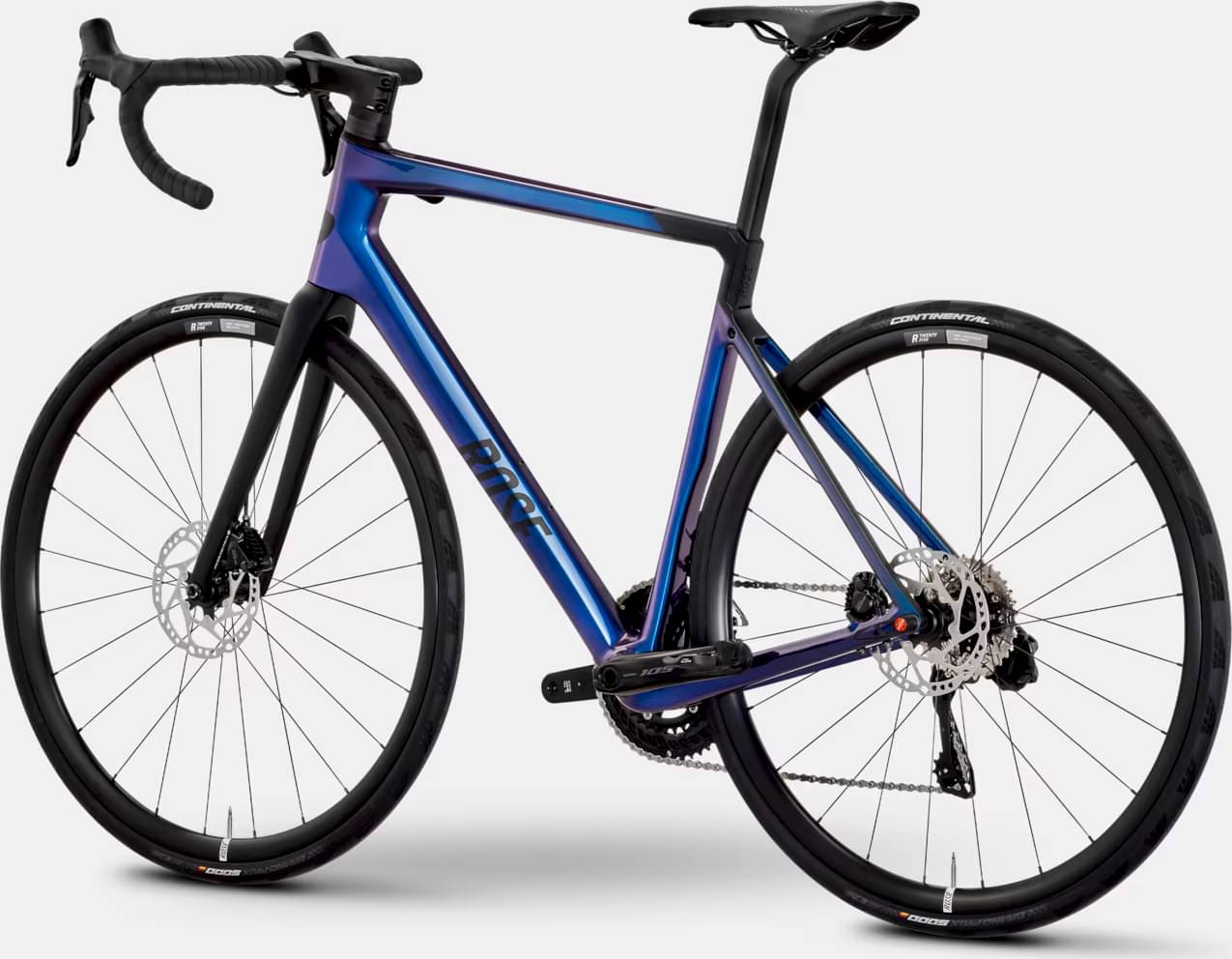

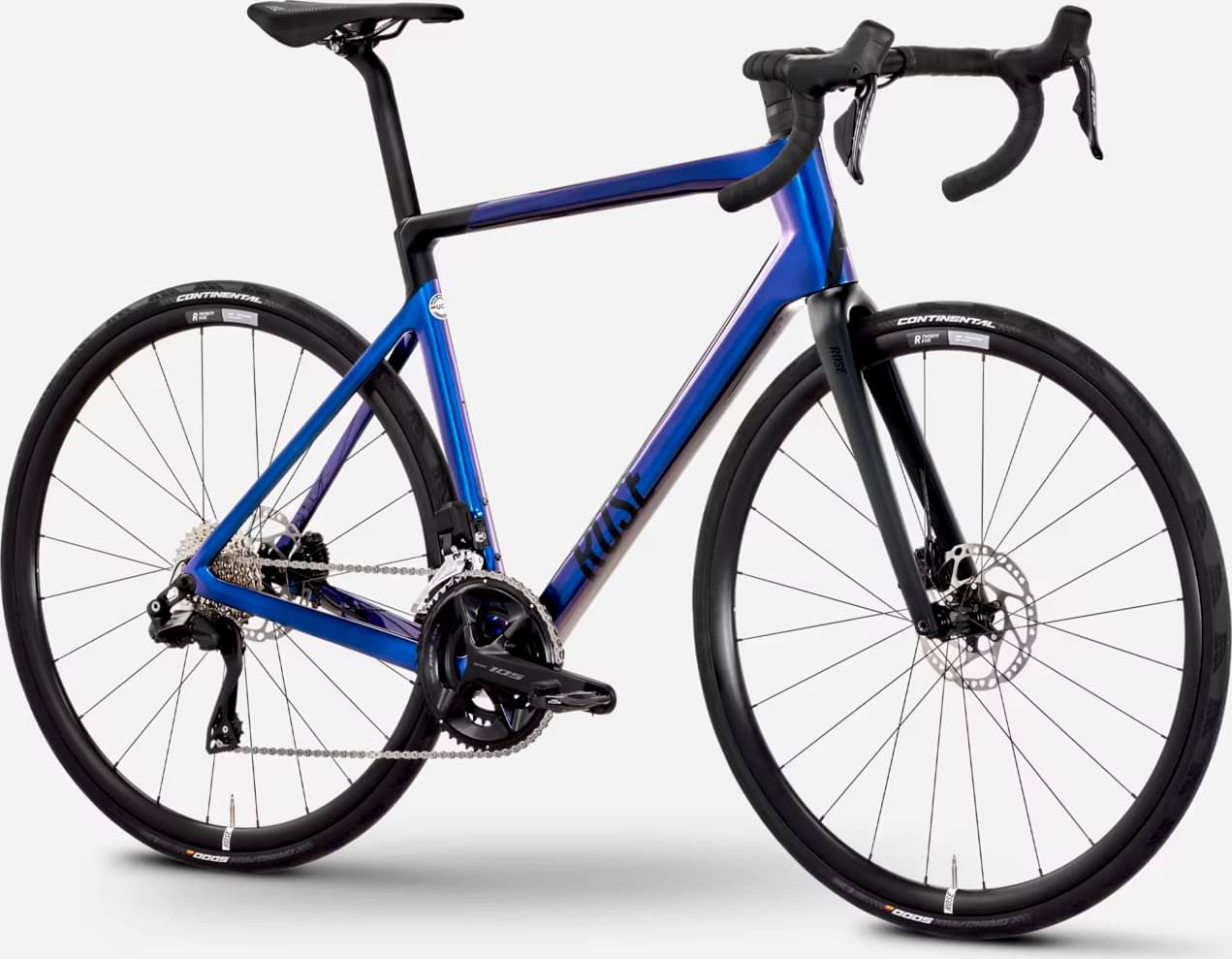

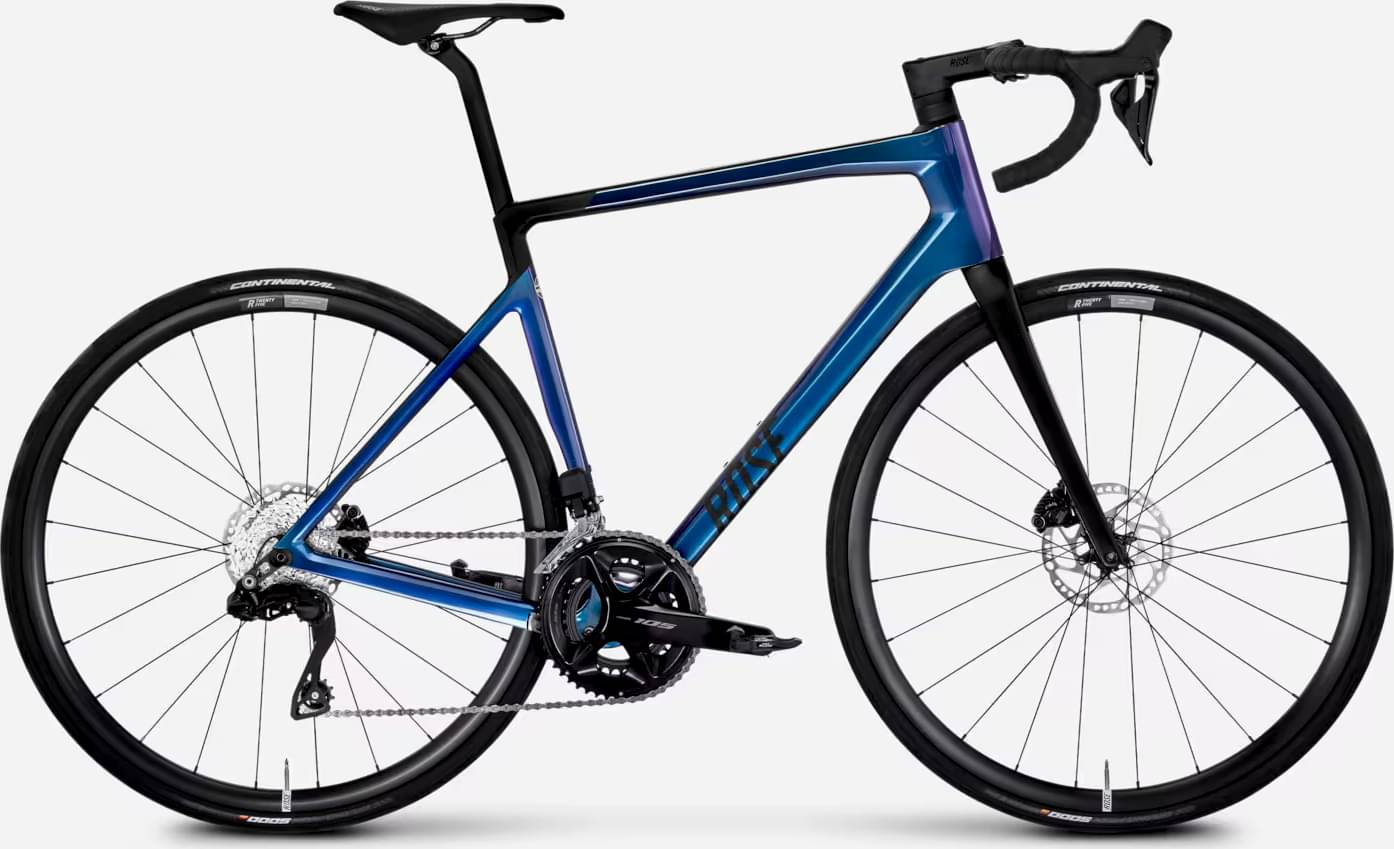

Rose REVEAL FOUR DISC 105 Di2 2023
2023 Road
Estimate price |
3,784$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REVEAL FOUR DISC, frame weight starting at 1020g, shiny aurora/matt black (special effect paint) 59cm
Suspension Fork
REVEAL FOUR DISC, fork weight starting at 380g matt black
Drivetrain
Rear Derailleur
Shimano RD-R7150, 105, 12-speed
Front Derailleur
Shimano FD-R7150, 105, 12-speed
Shift Levers
Shimano ST-R7170, 105
Cassette
Shimano CSR7100, 105, 12-speed, 11-34
Crank
Shimano FC-R7100, 105, 50-34T, 12-speed, 172,5mm
Chain
Shimano CN-M7100, SLX, 12-speed 118 L
Pedals
Pedals are not included and must be ordered separately
Wheels
Rims
ROSE R25 | Newmen hubs | inner rim width 19mm | 24 spokes | approx. 1590g for 700c | TLR 29"
Tires
Continental Grand Prix 5000, black/black 700x30C
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
ROSE Square anodized black 110mm
Handlebar
Ritchey Road Comp Streem II, black/matt 42cm
Seat
Saddle
Rose Edition by Selle Italia, black
Seatpost
ROSE D-Shape carbon seat post I 25 mm setback I 490 mm length 490mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 55cm | 57cm | 59cm | 61cm | 64cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.49 mm | 1.5 mm | 1.53 mm | 1.56 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 578 mm | 585 mm | 590 mm | 595 mm | 604 mm | 620 mm | 639 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 63 mm | 61 mm | 59 mm | 56 mm | 57 mm | 56 mm | 54 mm |
| Stack | 535 mm | 557 mm | 571 mm | 588 mm | 604 mm | 621 mm | 642 mm |
| Reach | 367 mm | 374 mm | 380 mm | 384 mm | 388 mm | 399 mm | 411 mm |
| Top Tube Length | 511 mm | 529 mm | 541 mm | 553 mm | 567 mm | 589 mm | 614 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.25 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 475 mm | 495 mm | 515 mm | 537 mm | 566 mm | 600 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 142 mm | 154 mm | 170 mm | 190 mm | 208 mm | 230 mm |
| Chainstay Length | 409 mm | 409 mm | 411 mm | 411 mm | 414 mm | 416 mm | 419 mm |
| Wheelbase | 975 mm | 983 mm | 990 mm | 994 mm | 1007 mm | 1026 mm | 1048 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 749 mm | 772 mm | 789 mm | 807 mm | 829 mm | 851 mm | 878 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
REVEAL FOUR DISC 105 Di2 belongs to the Rose Reveal model. Rose released 59 bikes variations of this model so far. You can easily view all of the Rose Reveal bikes models from 2023, here.
Model range prices
Rose REVEAL AL 105 2023 is the most economical model, with a starting price of 1963$. Rose REVEAL SIX DISC Red eTap AXS 2023 on the other hand costs 7962$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Rose REVEAL FOUR DISC 105 Di2 price was 3503$. If we compare this with the average Endurance bike cost we notice that the price is 49.32% higher.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the REVEAL FOUR DISC 105 Di2 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Rose REVEAL FOUR DISC 105 Di2 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
