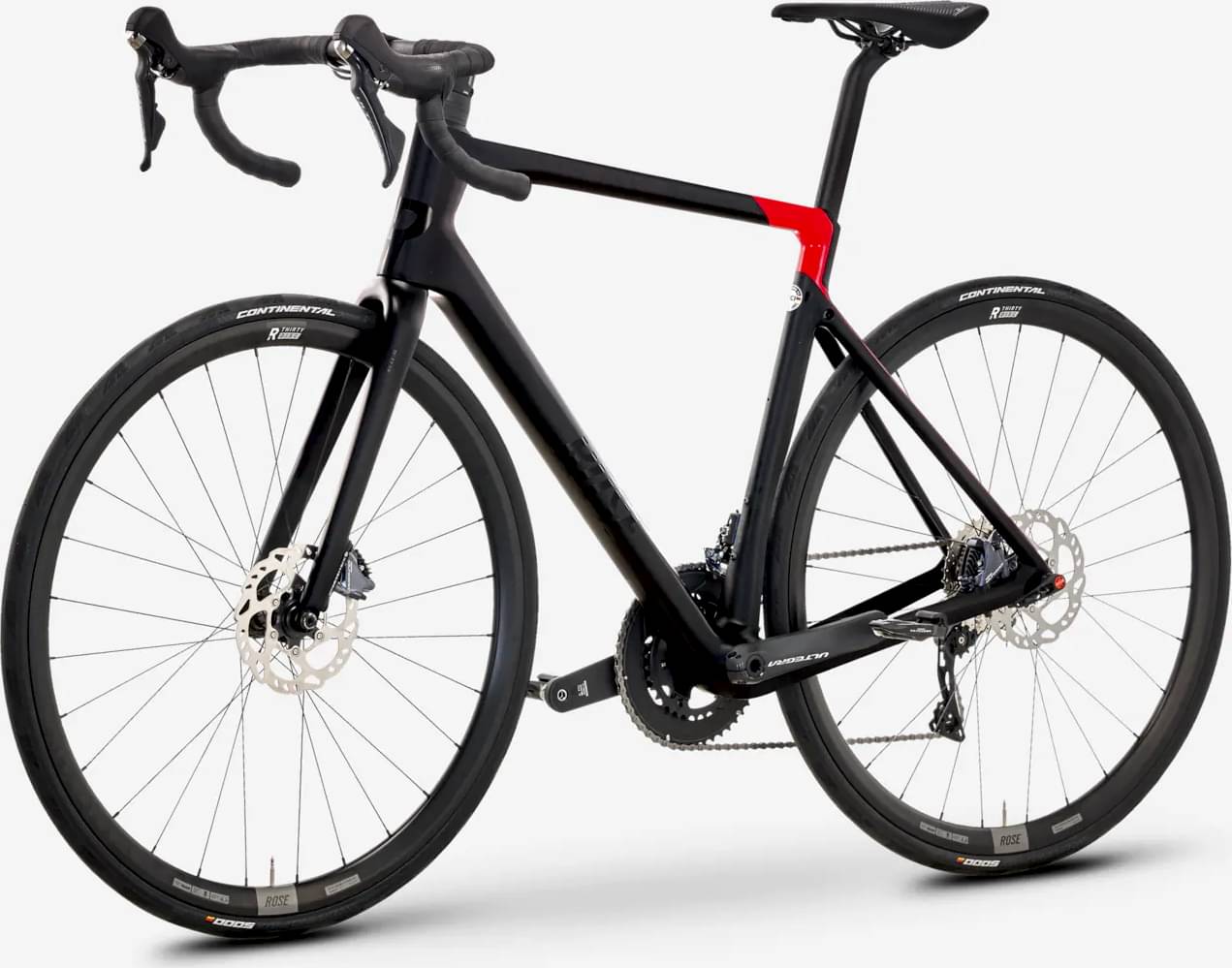

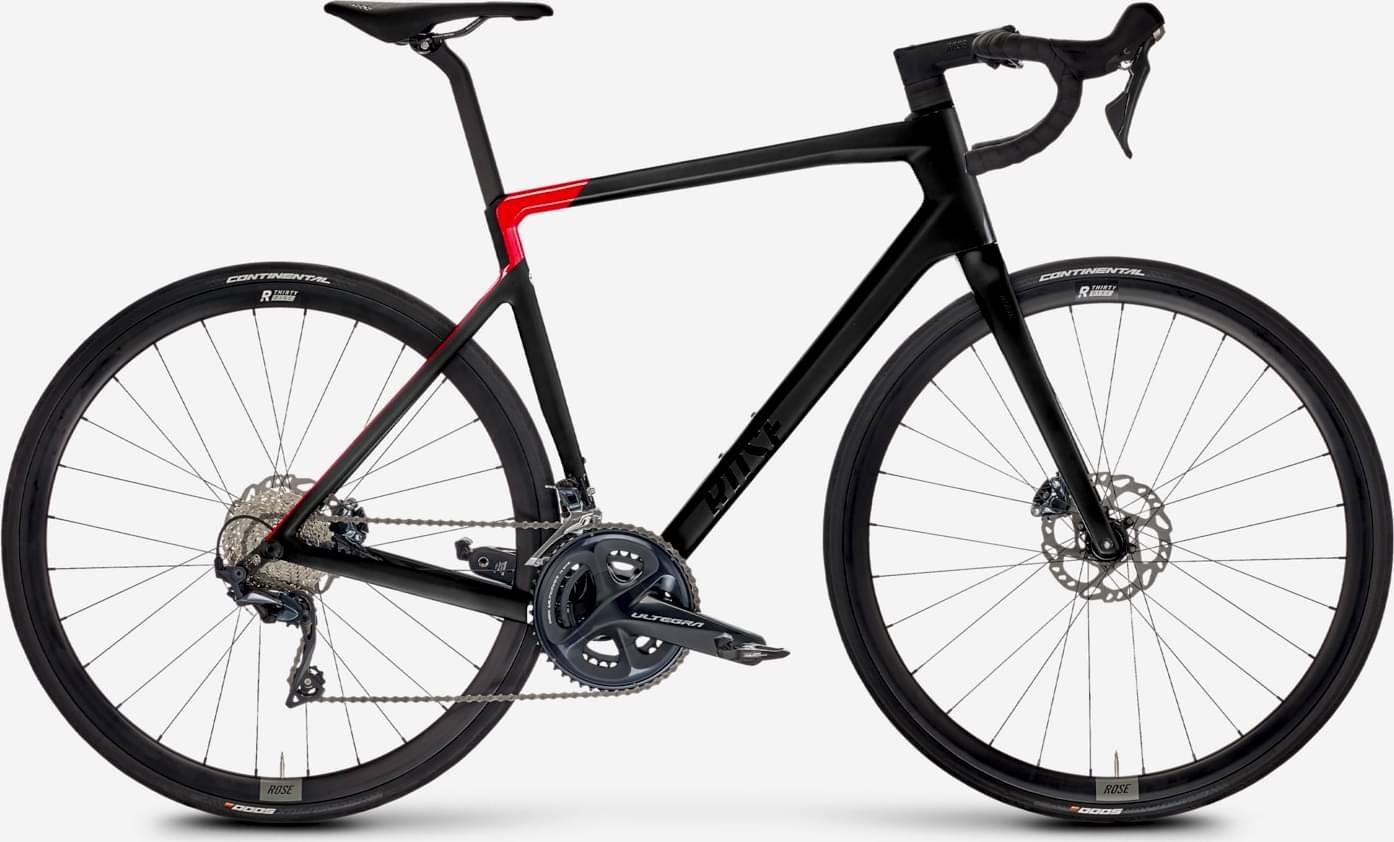

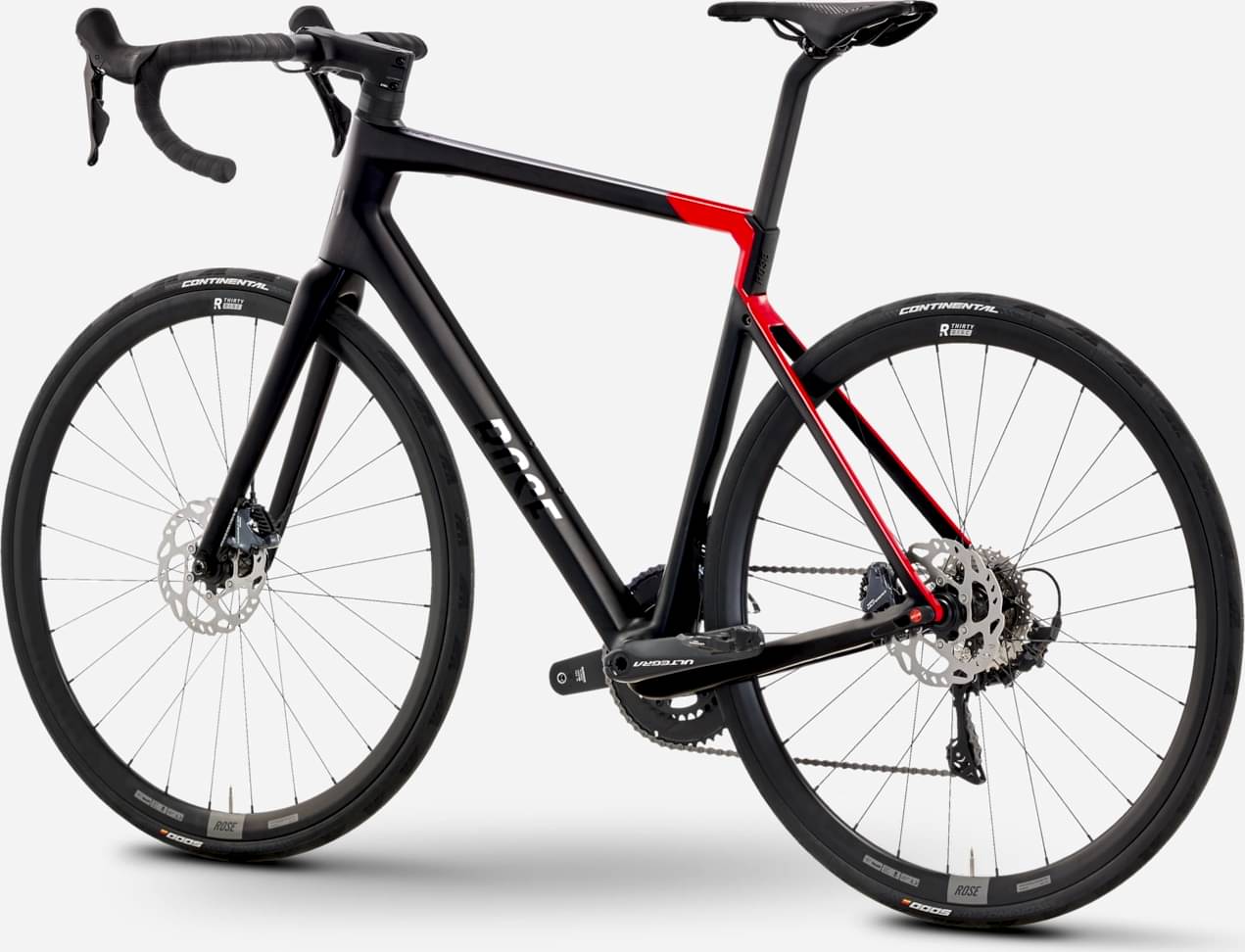

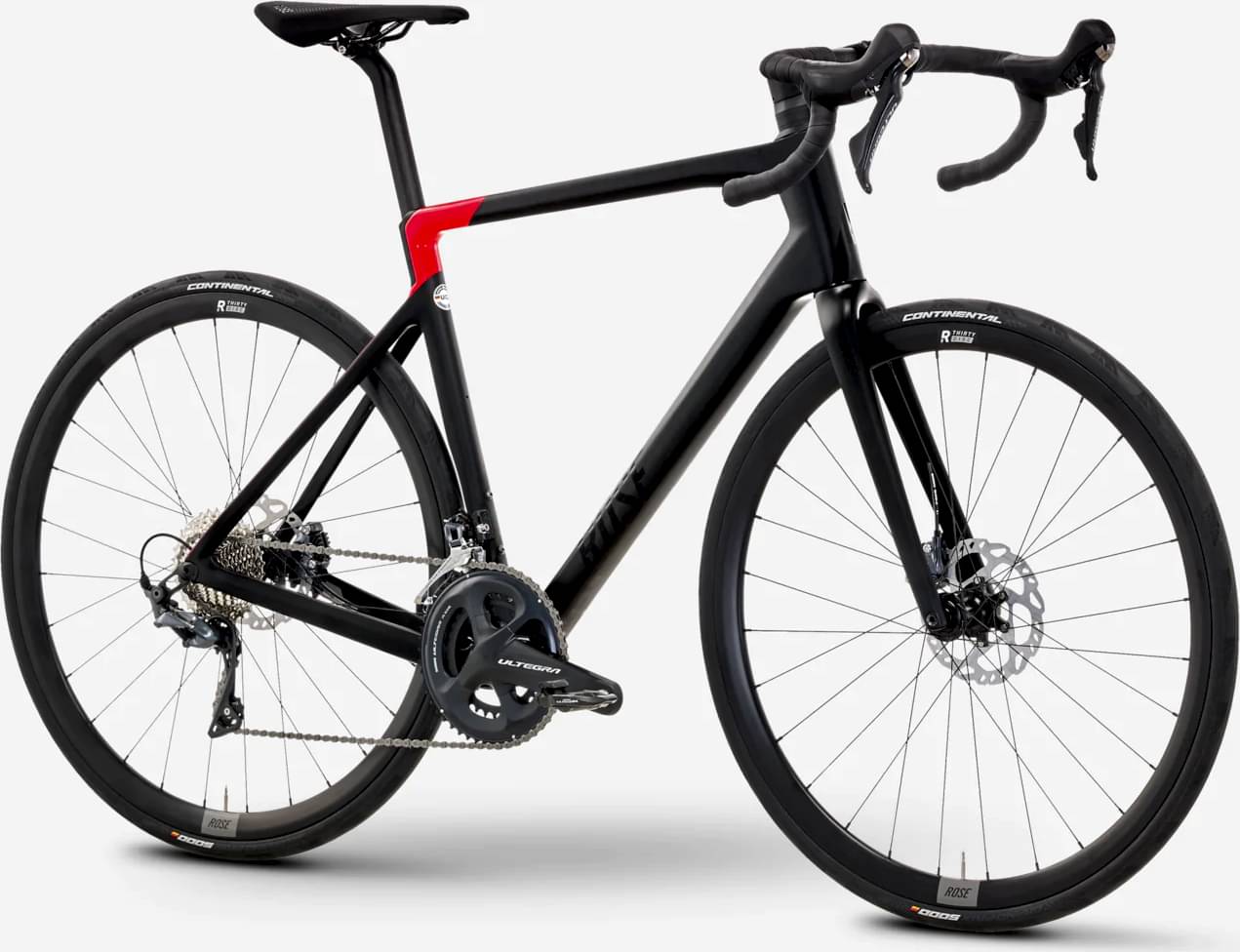

Rose REVEAL FOUR DISC Ultegra 2023
2023 Road
Estimate price |
3,210$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REVEAL FOUR DISC, frame weight starting at 1020g, Matt Carbon/Shiny Red 50cm
Suspension Fork
REVEAL FOUR DISC, fork weight starting at 380g matt black
Drivetrain
Rear Derailleur
Shimano Ultegra RD-R8000 (28-34 t.)
Front Derailleur
Shimano Ultegra FD-R8000
Cassette
Shimano CS-HG700, 11-speed, 11-34
Crank
Shimano Ultegra, FC-R8000, 50/34, 170mm
Chain
Shimano CN-HG601 118 links
Pedals
Pedals are not included and must be ordered separately
Wheels
Rims
ROSE R Thirty Disc, 28 hole
Tires
Continental Grand Prix 5000 foldable, black/black 700x28C
Brakes
Brakes
Shimano Ultegra, ST-R8025 / BR-R8070 black
Cockpit
Stem
ROSE Square anodized black 90mm
Handlebar
Ritchey Road Comp Streem II, black/matt 40cm
Seat
Saddle
Rose Edition by Selle Italia, black
Seatpost
ROSE, 8 mm offset 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 55cm | 57cm | 59cm | 61cm | 64cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.49 mm | 1.5 mm | 1.53 mm | 1.56 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 578 mm | 585 mm | 590 mm | 595 mm | 604 mm | 620 mm | 639 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 63 mm | 61 mm | 59 mm | 56 mm | 57 mm | 56 mm | 54 mm |
| Stack | 535 mm | 557 mm | 571 mm | 588 mm | 604 mm | 621 mm | 642 mm |
| Reach | 367 mm | 374 mm | 380 mm | 384 mm | 388 mm | 399 mm | 411 mm |
| Top Tube Length | 511 mm | 529 mm | 541 mm | 553 mm | 567 mm | 589 mm | 614 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.25 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 475 mm | 495 mm | 515 mm | 537 mm | 566 mm | 600 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 142 mm | 154 mm | 170 mm | 190 mm | 208 mm | 230 mm |
| Chainstay Length | 409 mm | 409 mm | 411 mm | 411 mm | 414 mm | 416 mm | 419 mm |
| Wheelbase | 975 mm | 983 mm | 990 mm | 994 mm | 1007 mm | 1026 mm | 1048 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 749 mm | 772 mm | 789 mm | 807 mm | 829 mm | 851 mm | 878 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
REVEAL FOUR DISC Ultegra is part of the Rose Reveal model. There are 59 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Rose REVEAL AL 105 2023 is the most economical model, with a starting price of 1963$. Rose REVEAL SIX DISC Red eTap AXS 2023 on the other hand costs 7962$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2972$. If we compare this with the average Endurance bike cost we notice that the price is 26.68% higher.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Rose REVEAL FOUR DISC Ultegra 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Rose REVEAL FOUR DISC Ultegra is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
